LLM-01
Wiring board for controlling underfloor heating

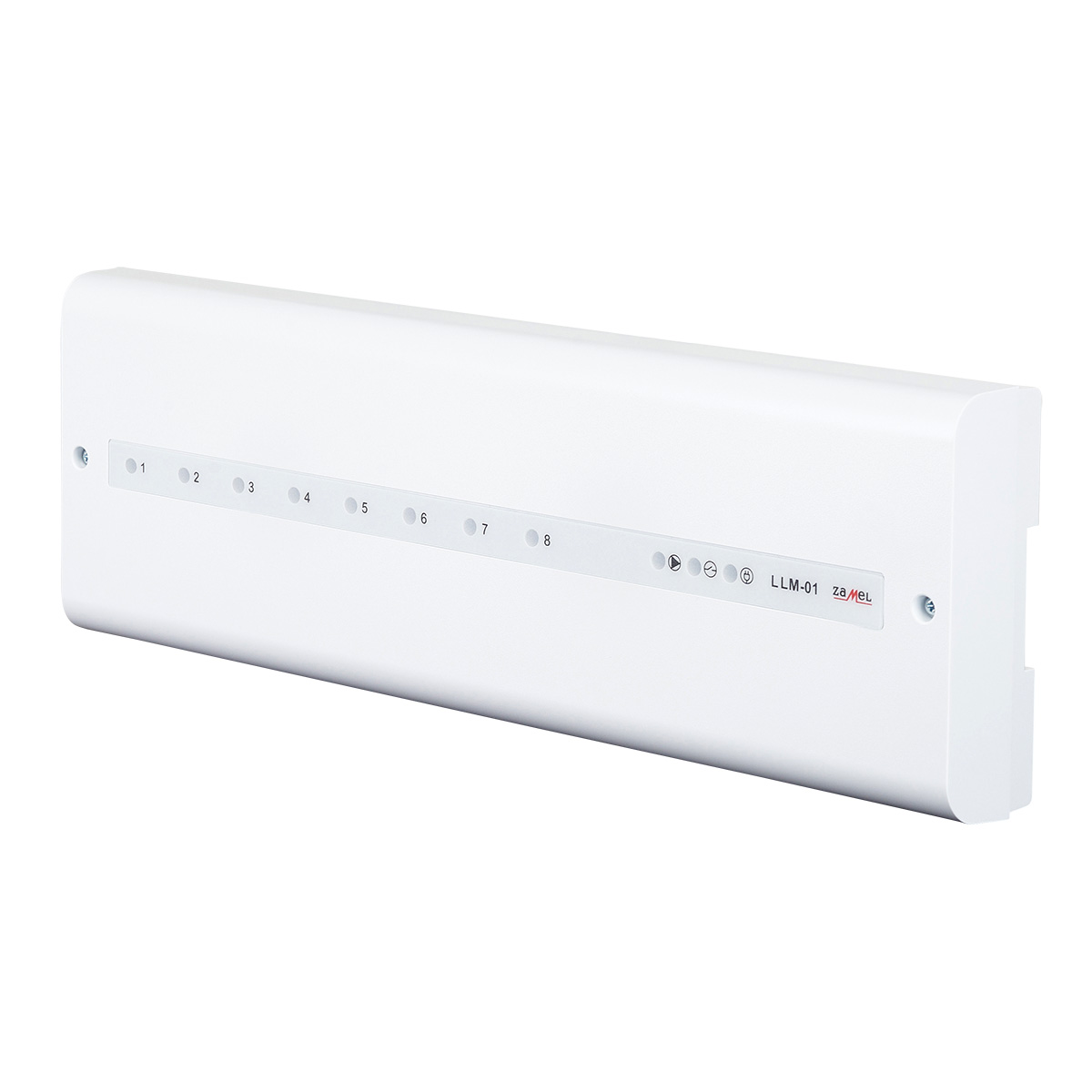

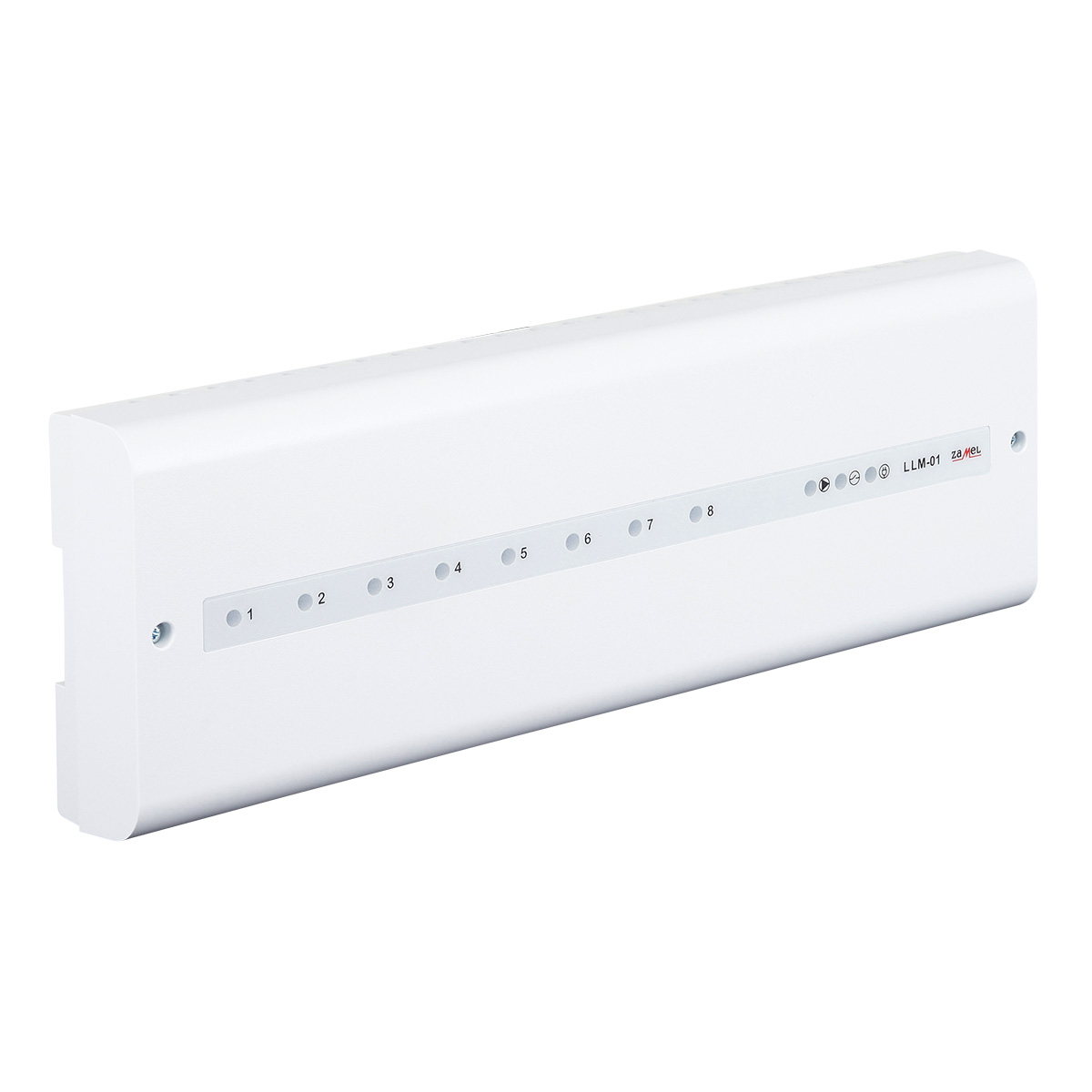

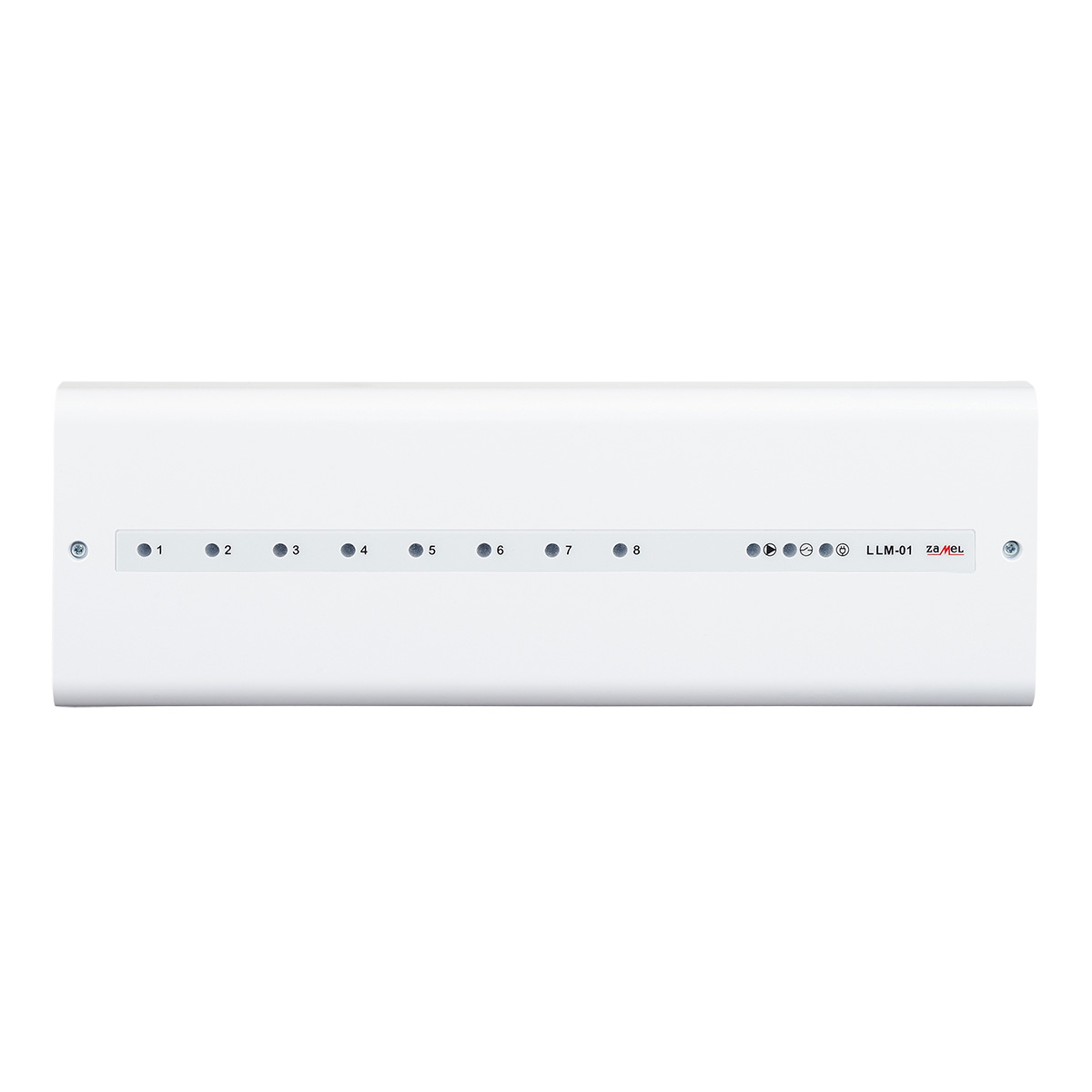

LLM-01 is a board designed to control heating in surface heating systems (8 independent zones). Temperature regulator and actuators are connected to the board via cable. In addition to regulating the temperature in rooms, LLM-01 also allows you to control the circulation pump and the heating device.
– possibility of supplying the regulators directly from the board,
– 1 x NO contact (6 A / 230 V~) for controlling the heat source,
– optical signaling of zone activation (8 x LED),
– optical signaling of pump and boiler activation,
– cables connected to removable terminals,
– holders enabling installation using cable ties.
Power supply: 230 V ~
Max. number of actuators in one heating zone: 6
Max. number of heating zones: 8
Outputs for controlling the circulation pump: 1 x NO (3A/230 VAC), voltage output
„Boiler” contact: 1 x NO/NC (6A/230 VAC) voltage-free
Operating mode: manual / automatic
Colour versions: white
Installation:: surface-mounted / DIN rail / cable ties
