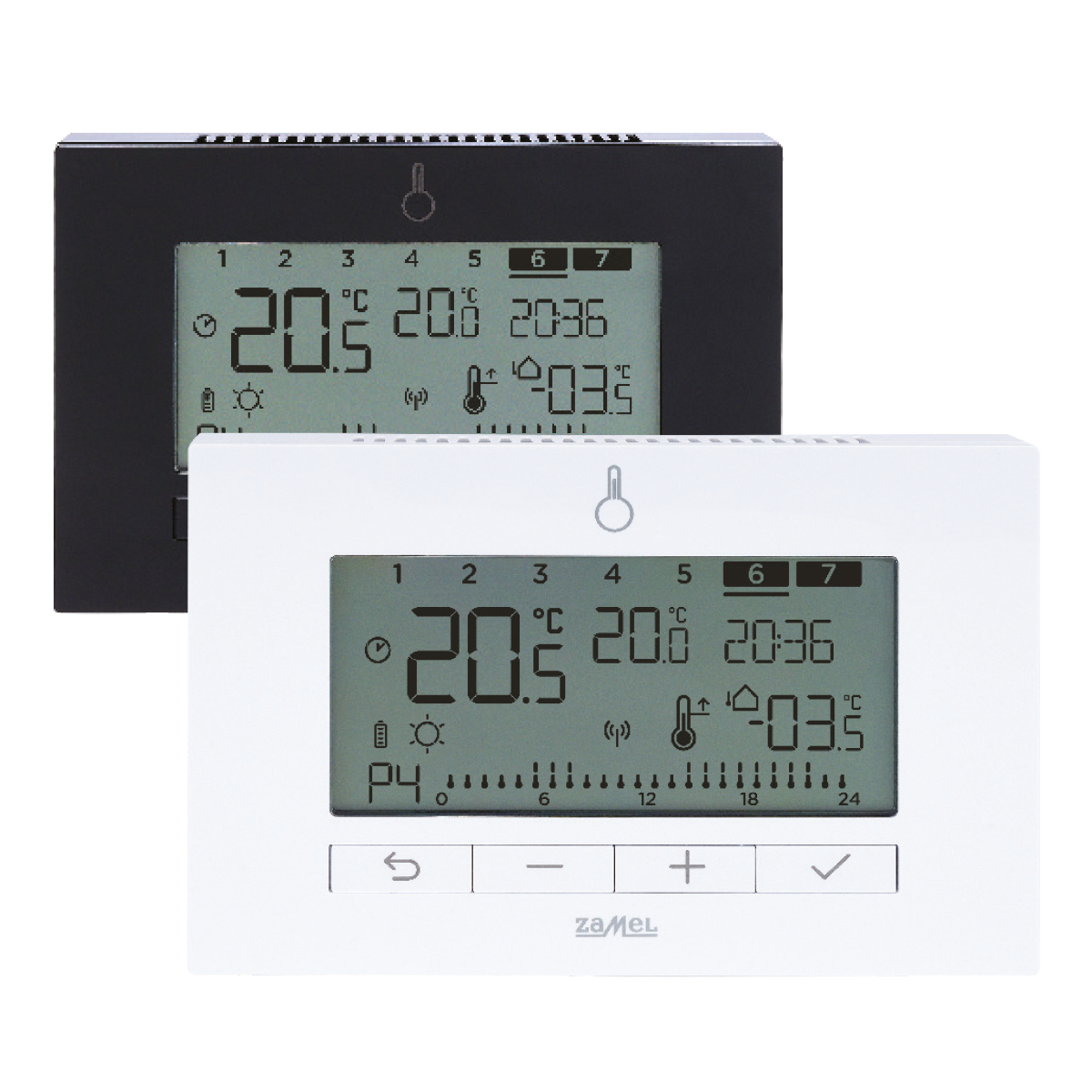

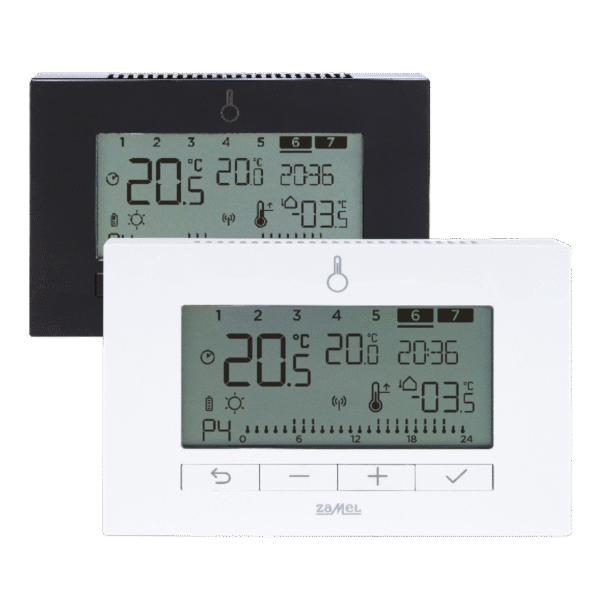

LWW-33
Temperature regulator Wi-Fi, weekly, powered by 230 V AC
LWW-33 is a temperature regulator with WI-FI 2.4GHz communication, powered by 230 V AC. The controller’s task is to maintain a constant temperature in the room based on the weekly schedule and four defined temperatures. Operation and configuration of the device is possible from the NaviHome (Tuya Cloud) application. The regulator is designed for flush mounting in Ø 60 mm junction boxes.
– cooperation with Navi Home (Tuya Cloud) application,
– relay output 3 A / 230 V~ (NO voltage-free contact),
– full operation and configuration directly from the regulator,
– ability to connect an external sensor,
– heating or cooling mode,
– key lock (standard or PIN code),
– display with backlight (white),
– thickness of the regulator after installation in a box: 11.5 mm,
– floor protection mode against overheating and cooling,
– implementation of special modes (anti-freeze, holiday, party),
– wide range of settings + 5 to + 95 °C.
Power supply: 230 V~
Control: based on schedule weekly and 4 fixed temperature
Communication: Wi-Fi 2,4 GHz
Control algorithm: TPI or Hysteresis 0,2÷4°C
Measurement resolution: 0,1 °C
Adjustment range: +5.0 to +95 °C
Colour versions: black / white
Installation: Ø 60 mm junction box
