LPW-23
Wireless temperature regulator, weekly, powered by 230 V AC
LPW-23 is a temperature controller with wireless communication based on the EXTA LIFE protocol. The device is powered by 230 VAC. It is intended for flush mounting in Ø 60 junction boxes. The main task of the controller is to maintain a constant temperature in the room based on a weekly schedule and four defined temperatures.
– special modes: anti-freeze, holiday, party,
– ability to set temperature control ranges,
– floor overheating program,
– thermometer mode,
– operation with selected EXTA LIFE receivers,
– control and management using the EXTA LIFE application (cooperates with EFC-01),
– wireless connection with the LLM-21 board or LOT-21 receiver,
– full control and configuration from the regulator level,
– option to connect an external sensor,
– implementation of heating or cooling,
– key lock (simple or requiring the use of a PIN code),

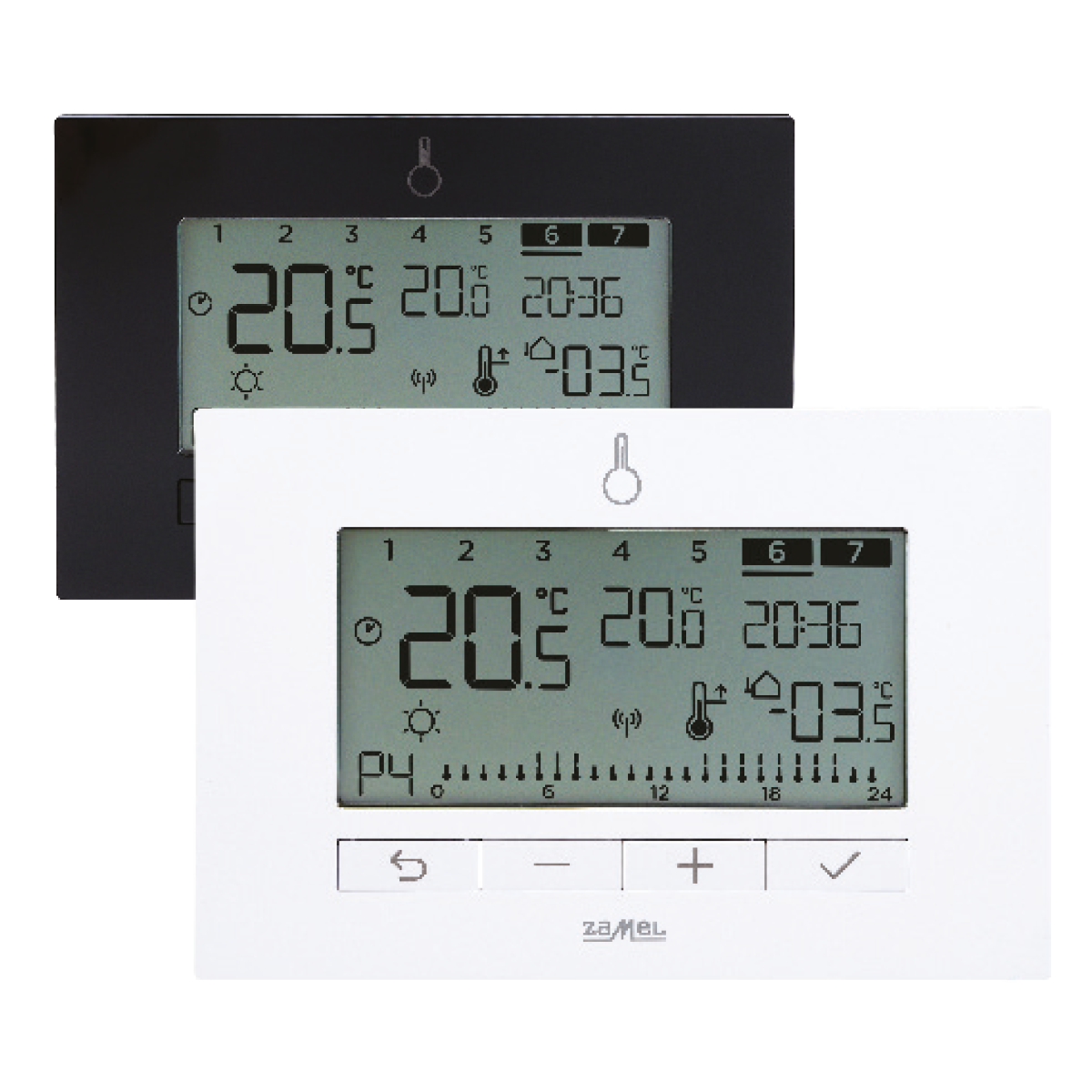

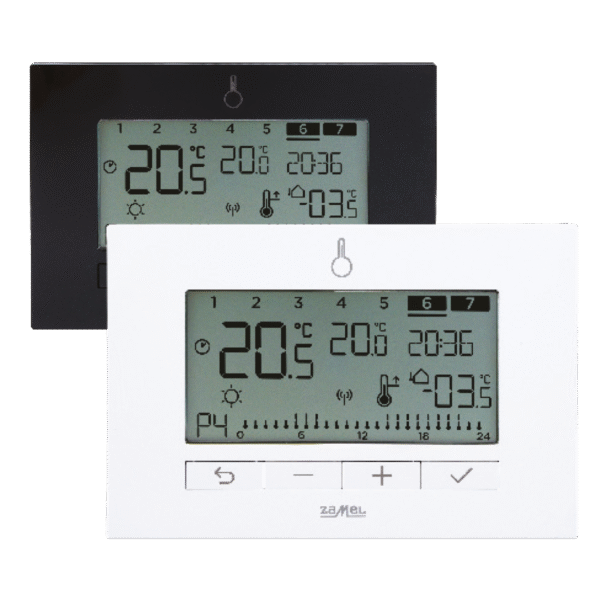

– display with backlight (white),

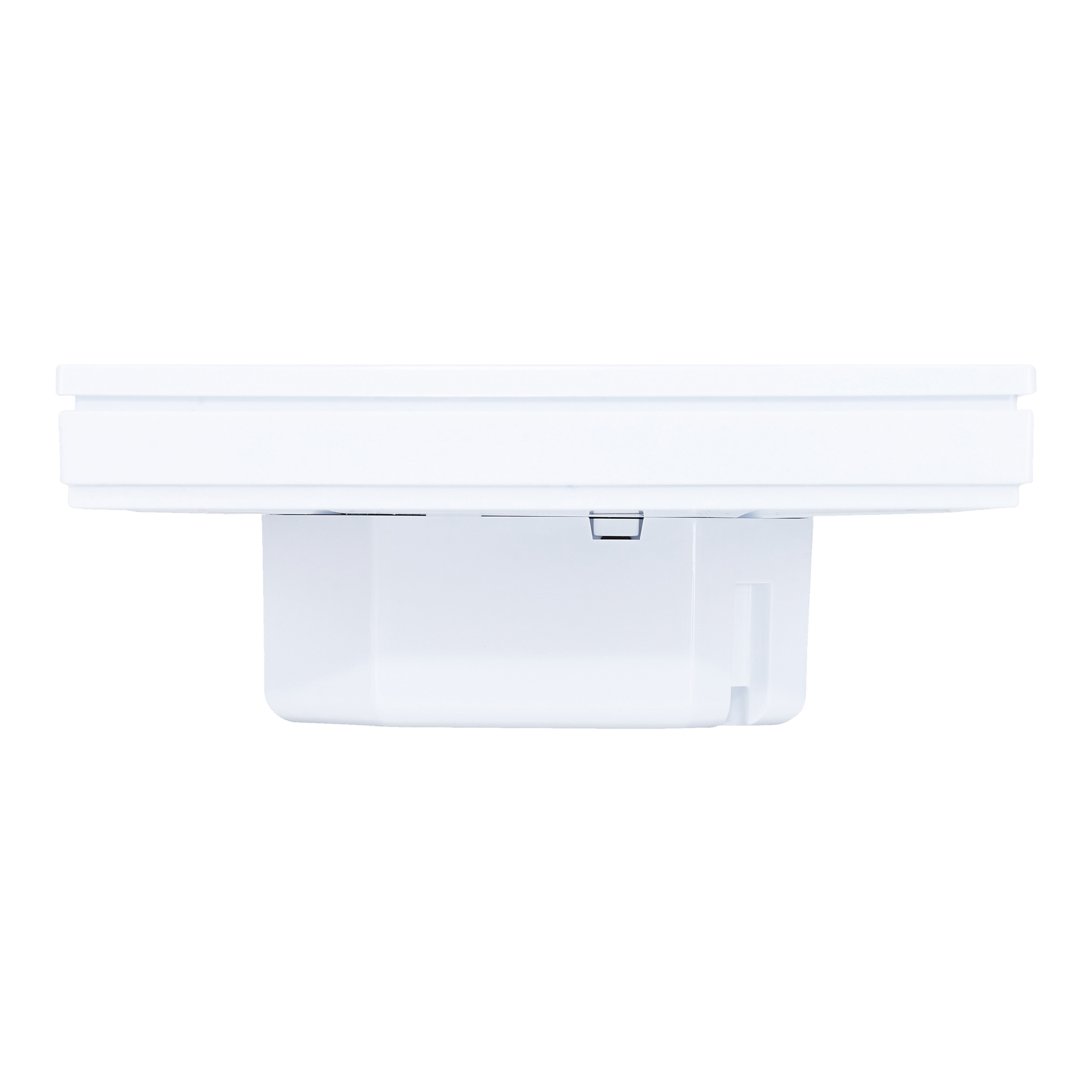

– flush-mounted installation in a Ø 60 mm junction box,
– ability to temporarily raise or lower the temperature

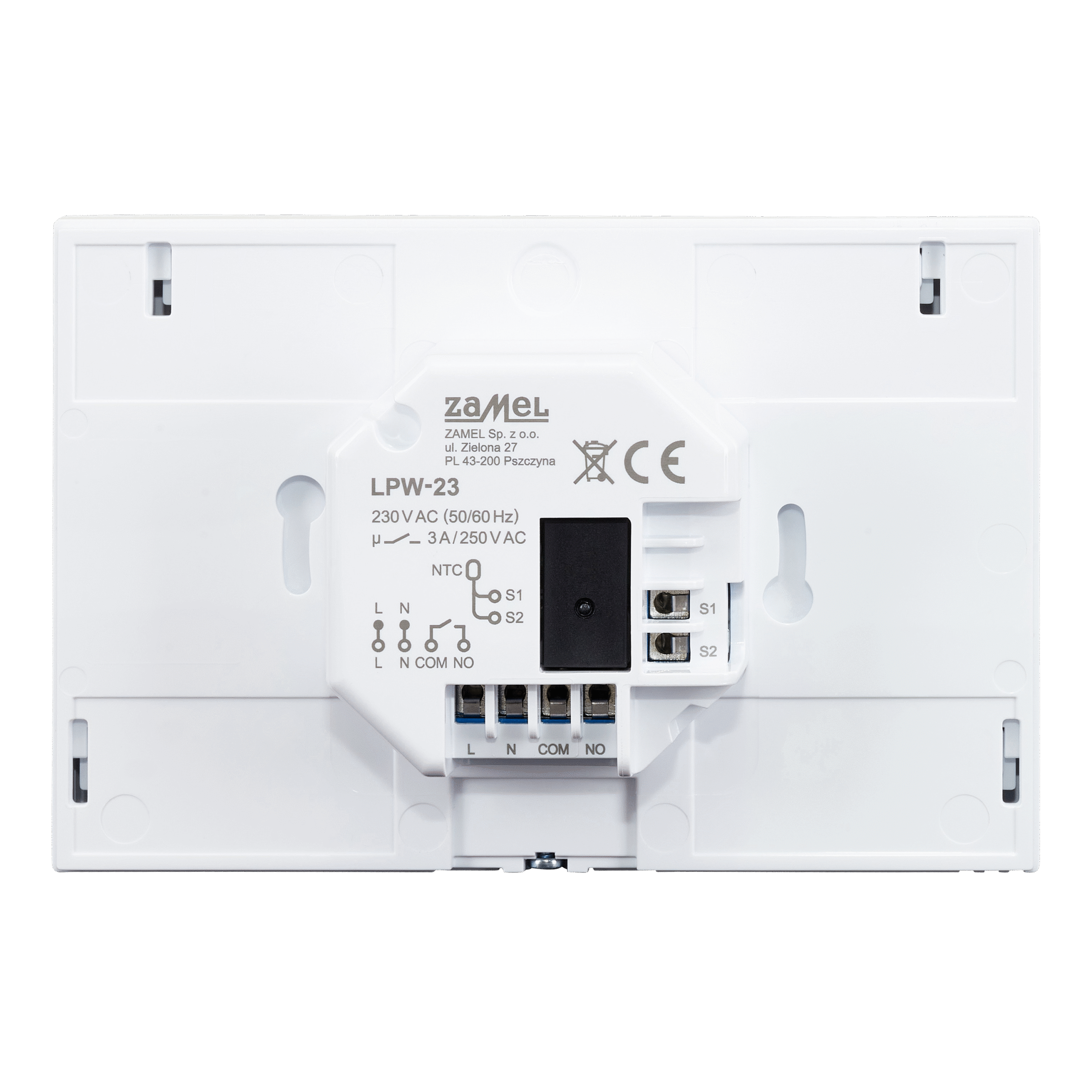

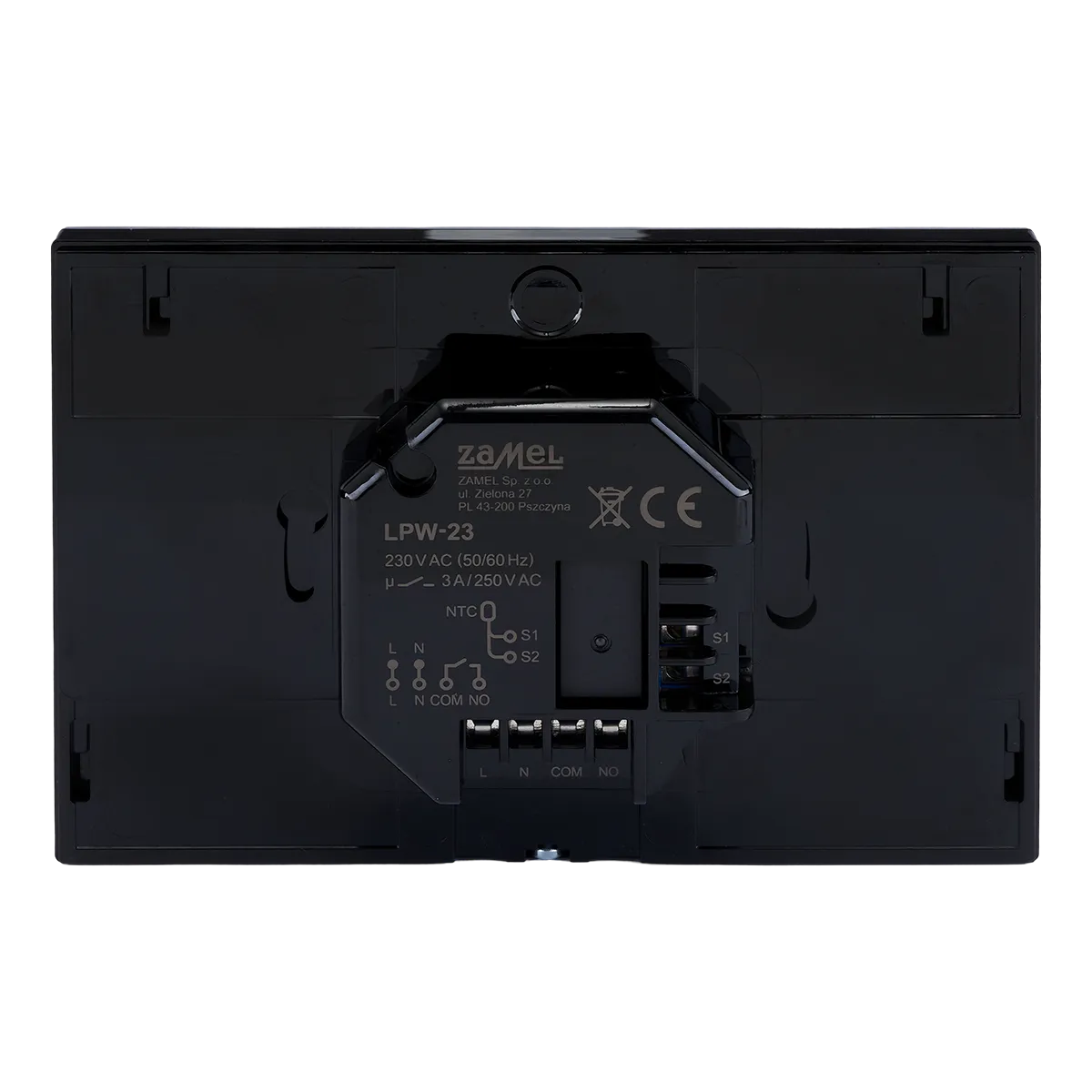

Power supply: nominal 230 V~
Output: relay 3 A /230 V~(NO voltage-free contact)
Communication: Exta Life 868,5 MHz
Range: up to 300 m
Control algorithm: TPI or Hysteresis 0,2÷4°C
Min. temperature change value: 0,1 °C
Regulation range: + 5.0 to + 95 °C

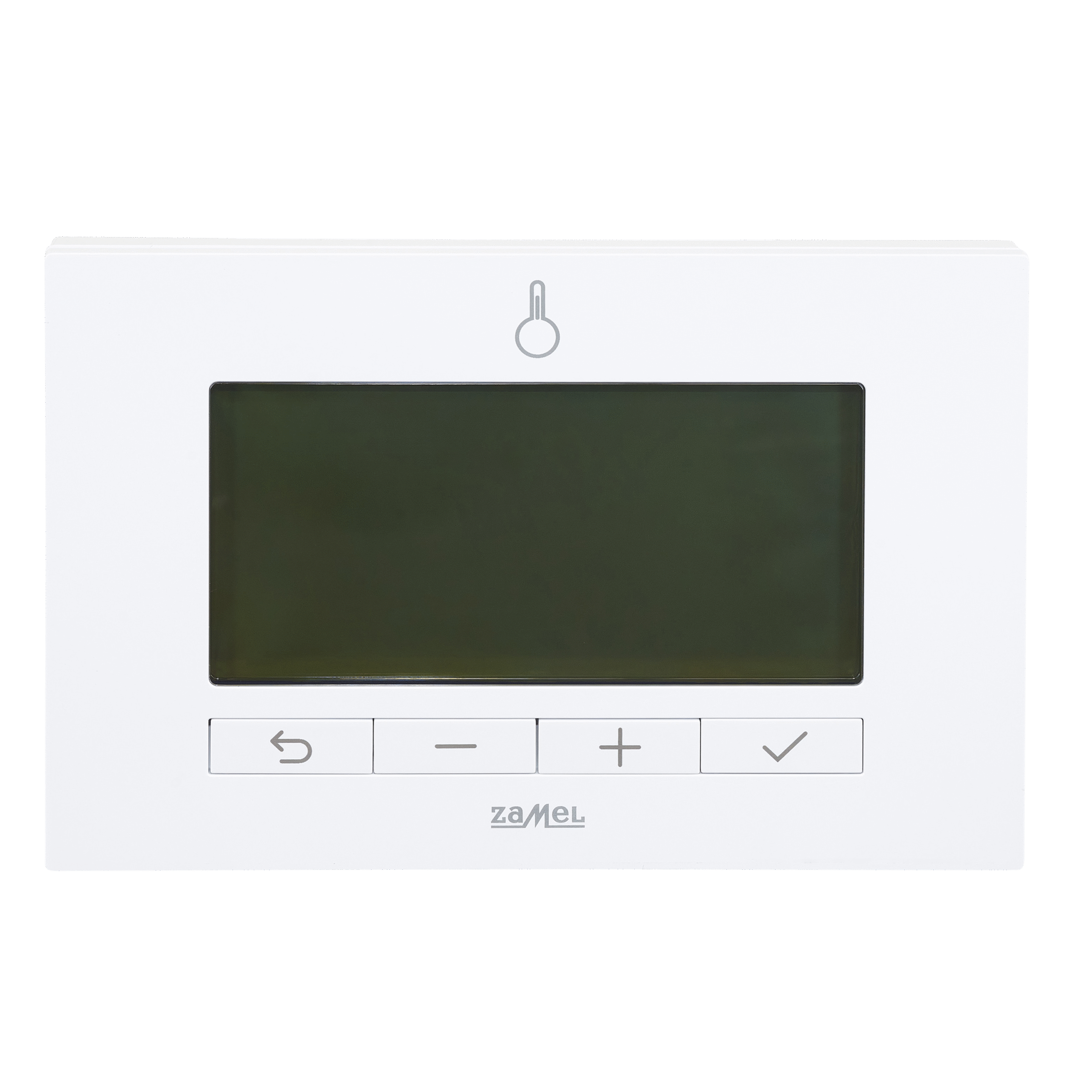

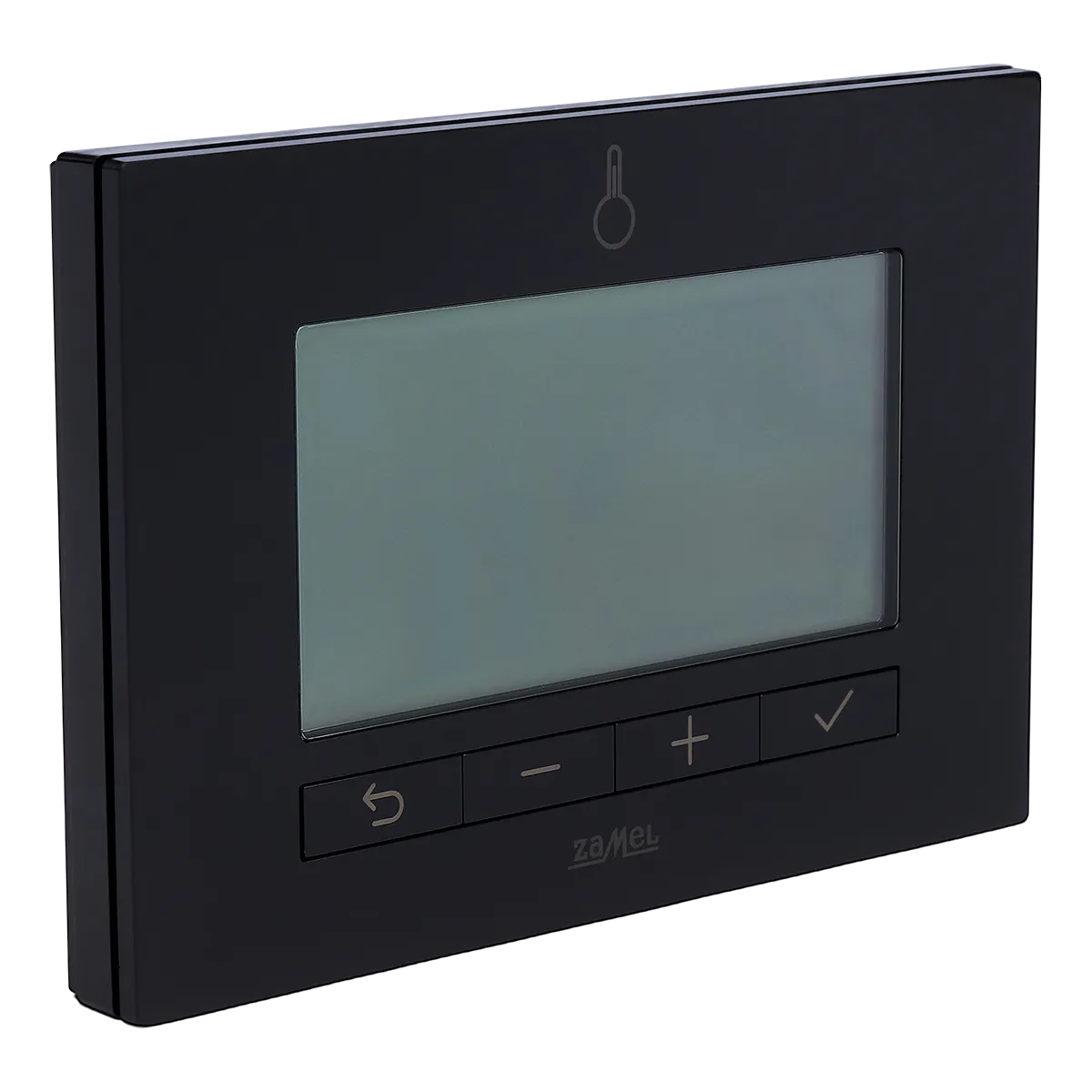

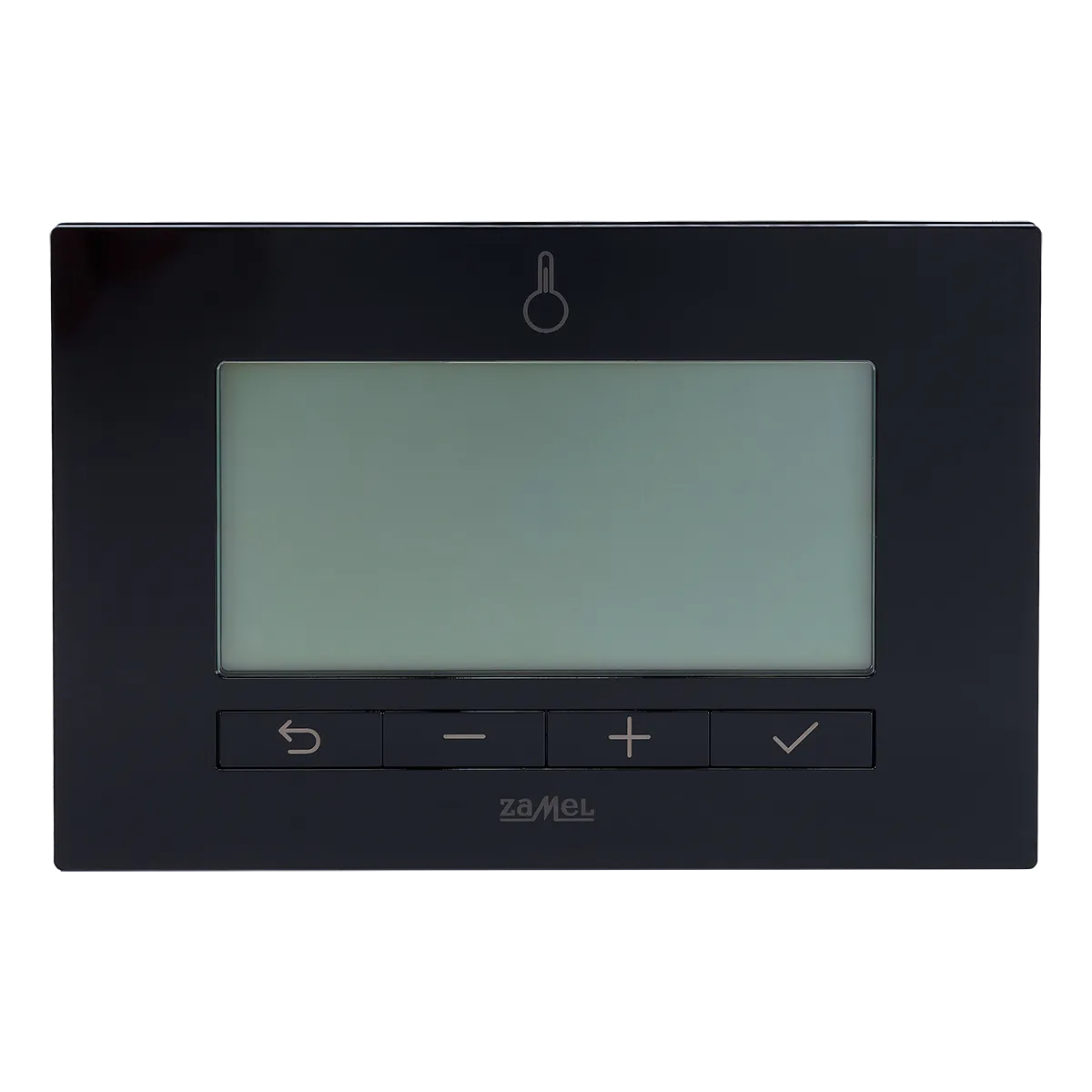

Colours: black / white
Installation: Ø 60 junction box
