LPW-22
Wireless temperature regulator, daily, powered by 230 V AC
LPW-22 is a flush-mounted temperature controller with wireless communication based on the EXTA LIFE protocol. The device is powered by 230 VAC. It is intended for flush mounting in Ø 60 mm junction boxes. The main task of the regulator is to maintain a constant temperature in a daily cycle based on two temperatures: night (Lo) and day (Hi). Temperatures are assigned to specific hours of the day.
– ability to assign one of two temperatures to a specific hour of the day,
– ability to temporarily raise or lower the temperature,
– operation with selected EXTA LIFE receivers,
– wireless connection with the LLM-21 board or the LOT-21 boiler receiver,
– full control and configuration from the regulator,
– option to connect an external sensor,
– program allowing heating or cooling,
– key lock (simple or requiring the use of a PIN code),
– display with backlight (white),
– installation flush-mounted in a Ø 60 mm junction box.

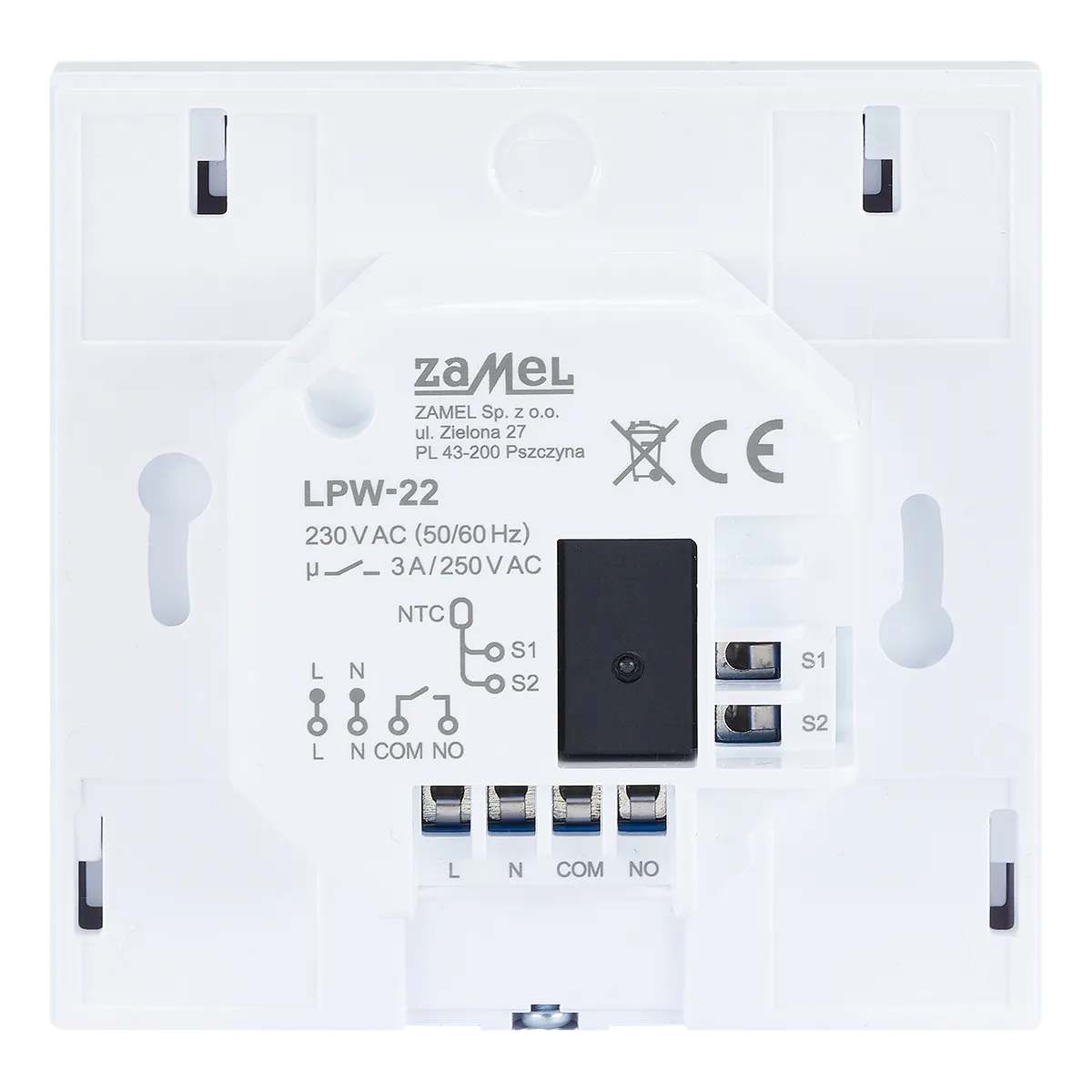

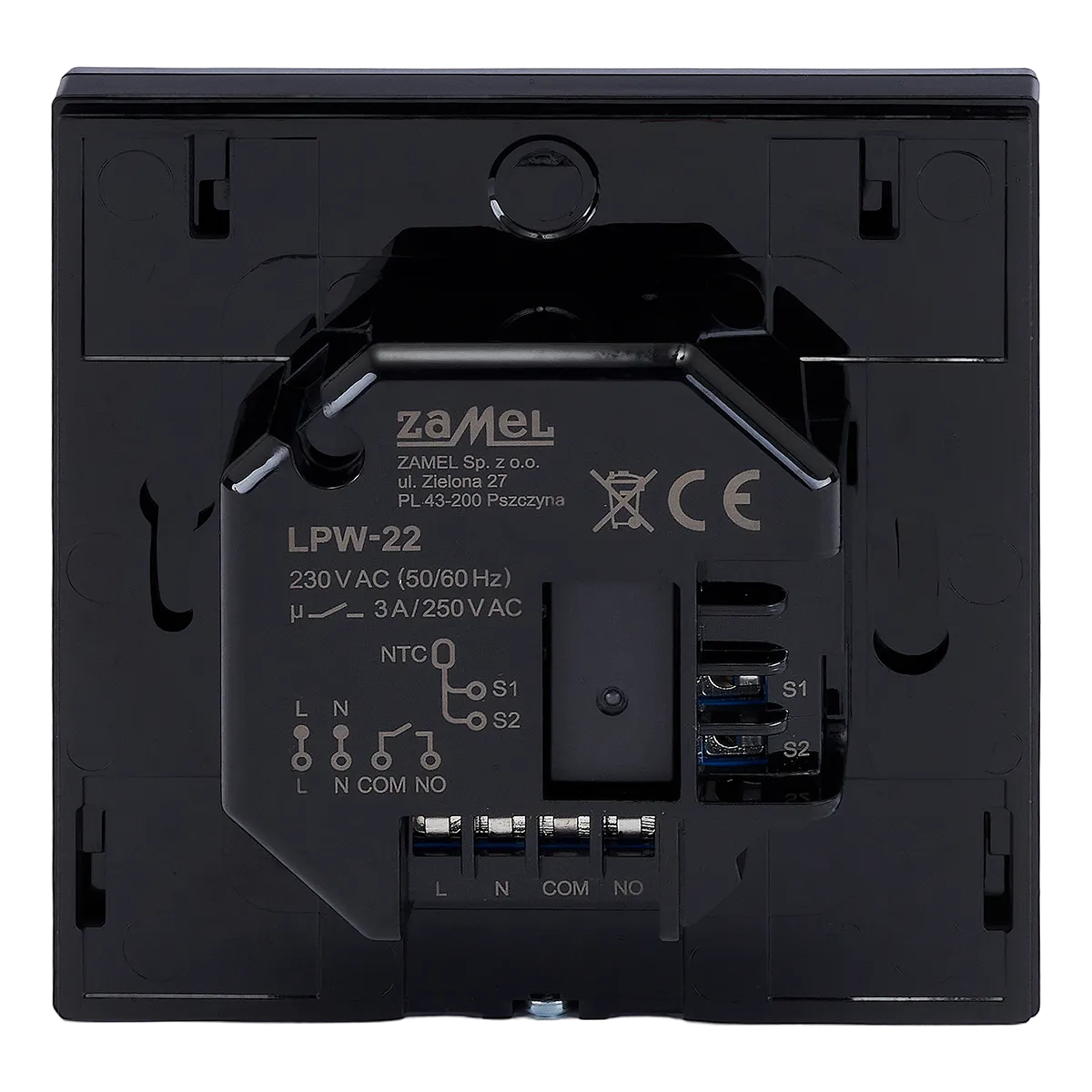

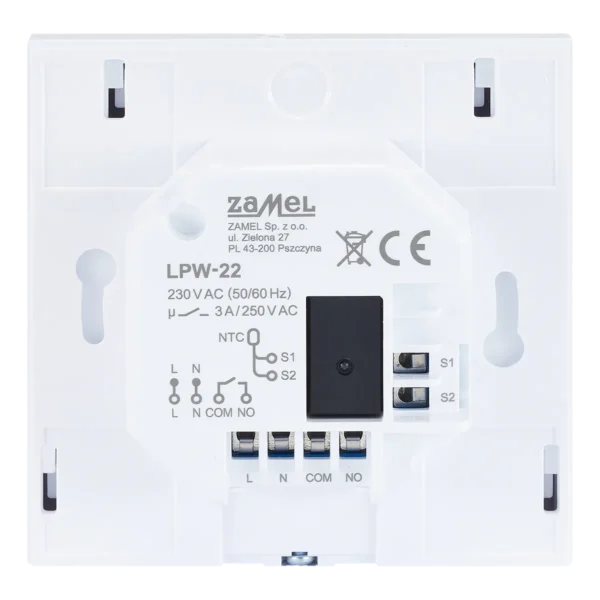

Power supply: nominal 230 V~
Communication: Exta Life 868,5 MHz
Range: up to 300 m

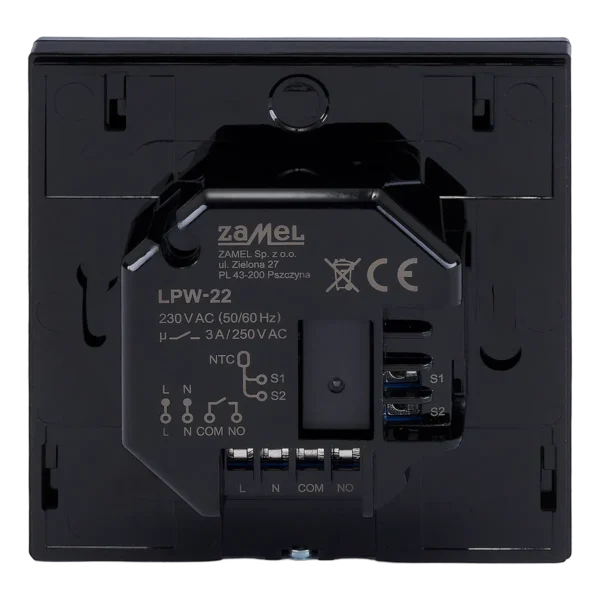

Output: relay 3A / 230 V (NO voltage-free contact)
Control algorithm: TPI or Hysteresis 0,2÷4°C
Min. temperature change value: 0,1 °C
Regulation range: + 5.0 to + 35.0 °C

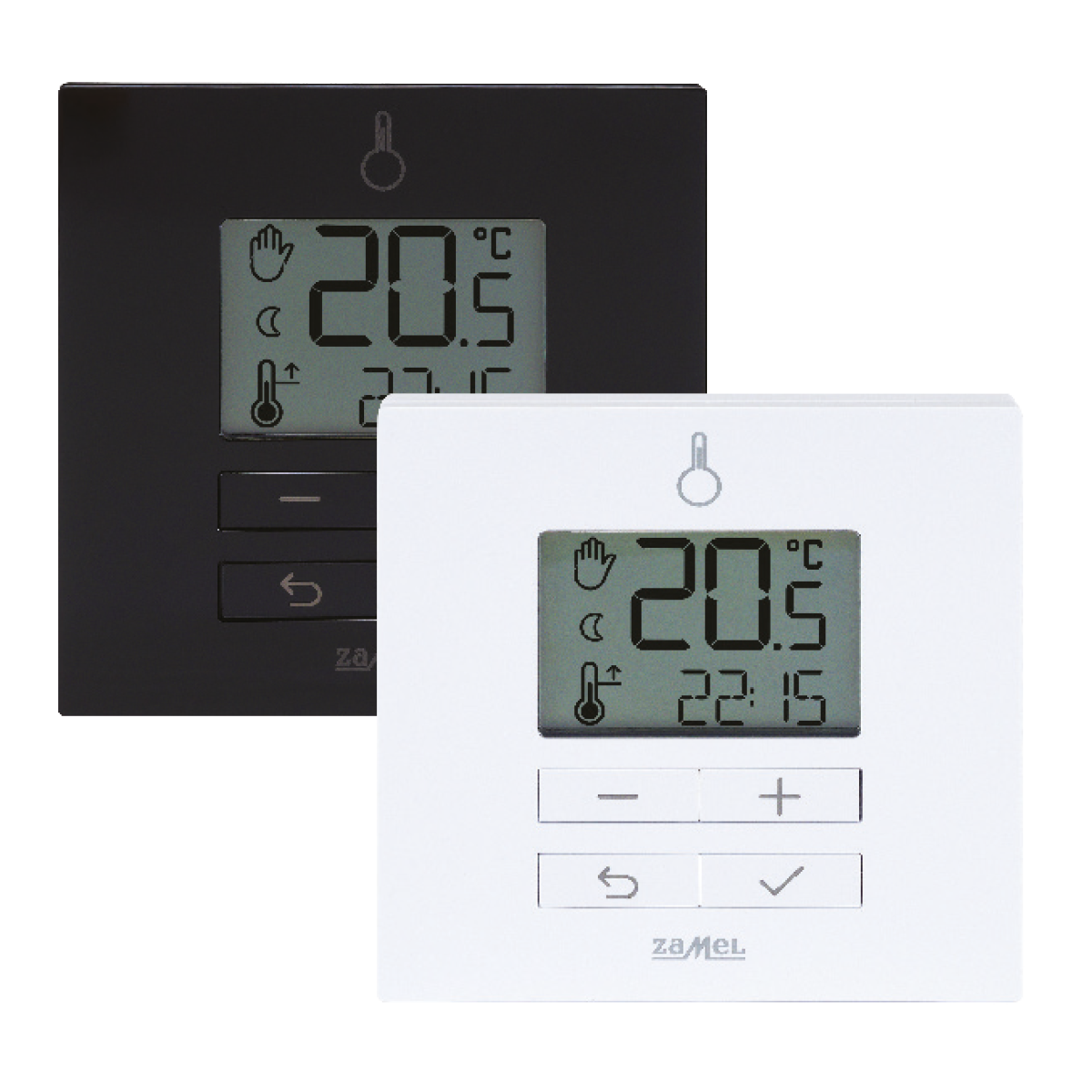

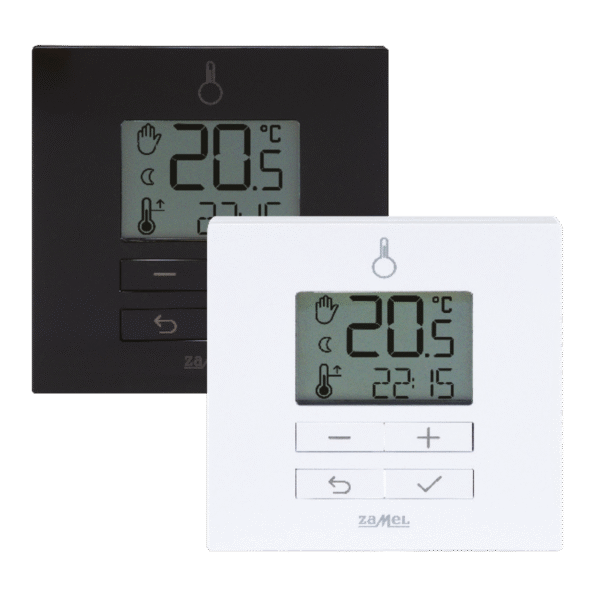

Colours: black / white

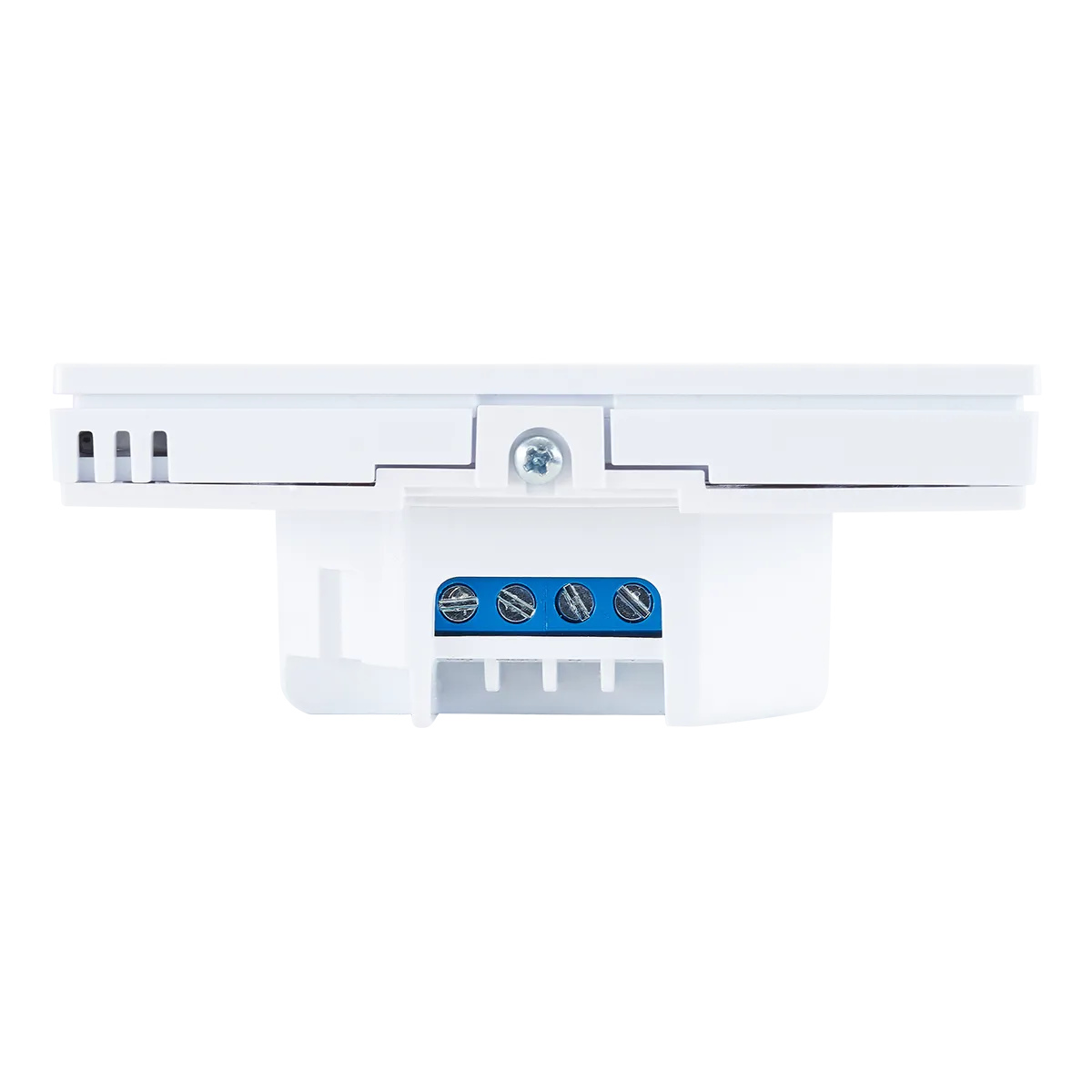

Installation: Ø 60 junction box
