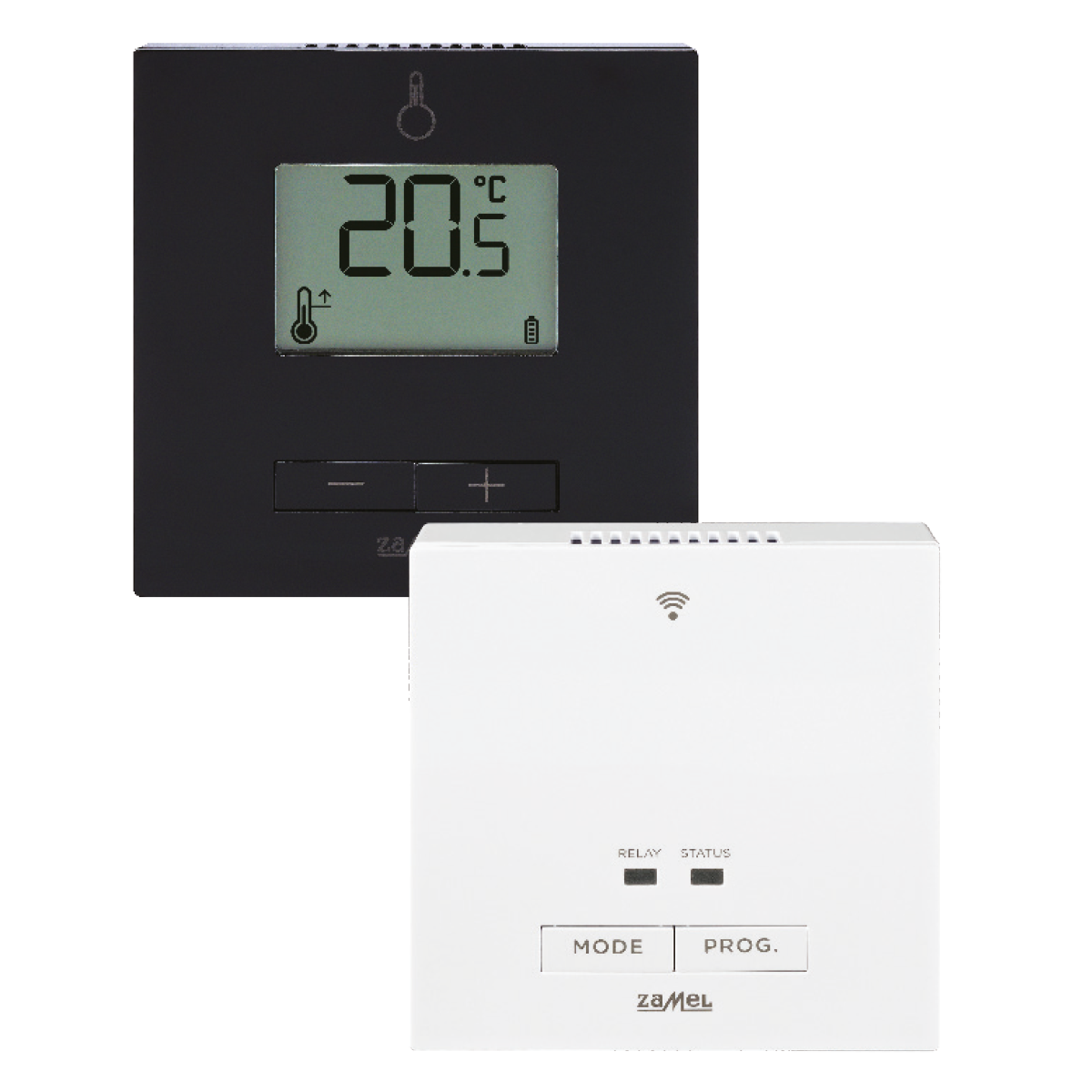

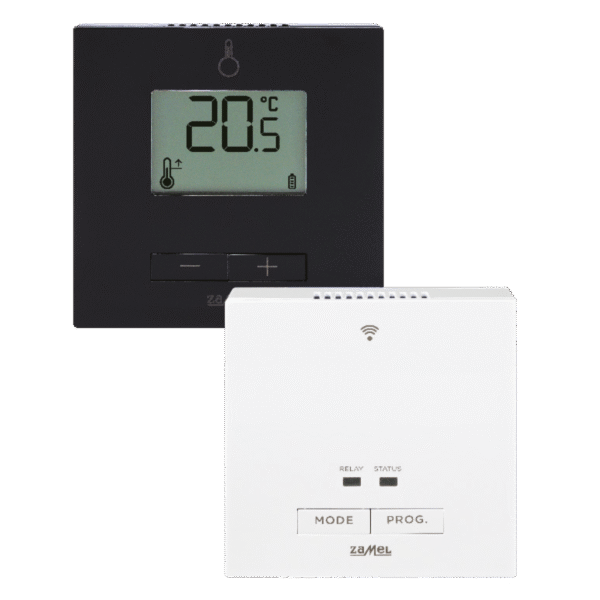

LTS-21
Wireless control system with simple regulator
The LTS-21 set enables wireless control of a slow heating device or pump. It consists of a simple LBW-21 battery-powered radio regulator and a LOT-21 regulator receiver. The controller controls the temperature in the room based on one set temperature. Information about the need to turn on/ off the heating device or pump is sent via radio to the LOT21 receiver, which physically performs the control function. The set, in cooperation with the EFC-01 controller, can be operated via the Exta Life mobile application.
– set paired and ready for operation,
– wireless communication,
– control based on one temperature,
– ability to control any heating device via the NO 8A contact,
– signal renewal mechanism,
– temperature setting range from + 5°C to + 35°C,
– control based on hysteresis or TPI,
– ability to place the regulator anywhere,
– cooperation with the Exta Life mobile application (via EFC-01),
– white / black colour version.
Regulator power supply: 2 x LR03 AAA batteries
Receiver power supply: 230 V AC 50 / 60 Hz
Transmission: radio 868,50 MHz
Range: up to 300 m
Receiver output: NO voltage-free NO contact
Maximum receiver load: 8A / 230 VAC
Control algorithm: hysteresis or TPI
Installation: Receiver (surface-mounted), Regulator (surface-mounted or standalone)
