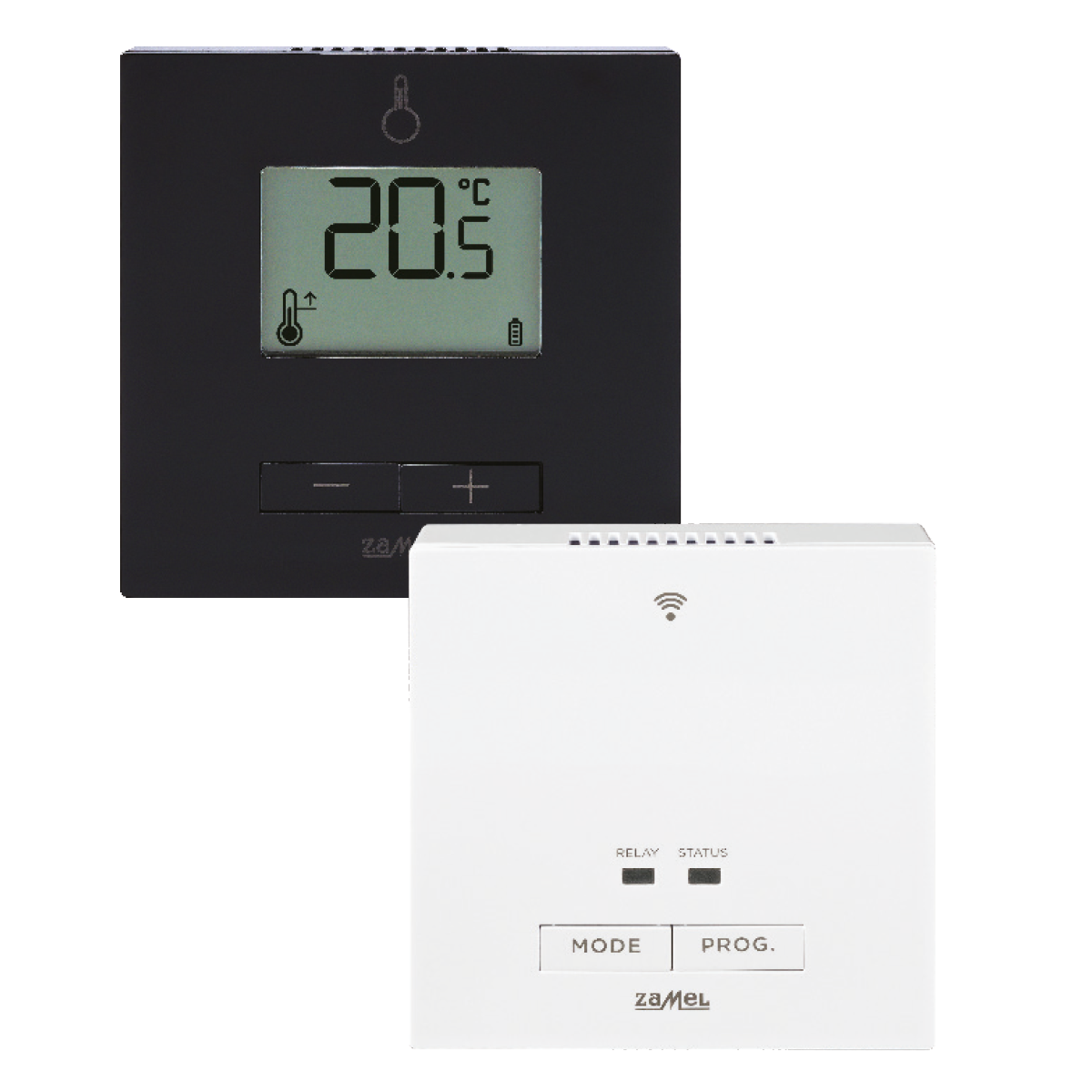

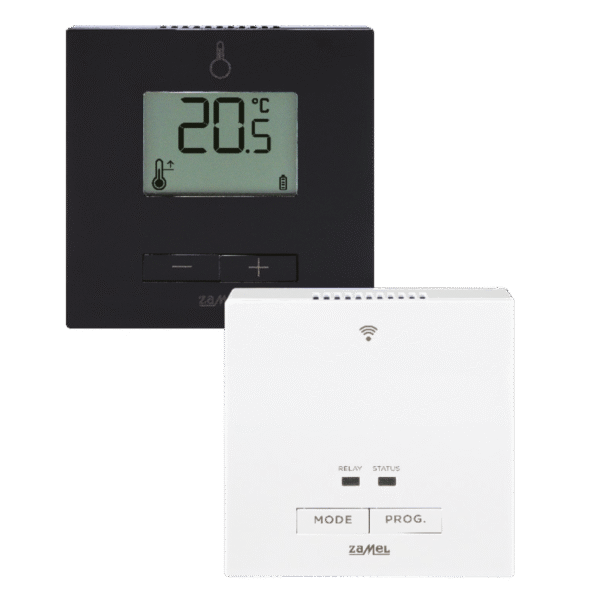

LTS-31
Wireless control system with simple regulator (radio + Wi-Fi)
The LTS-31 set allows you to wireless control of any heating device or pump. It consists of a simple LBW-21 battery-powered radio regulator and a WOT-31 regulator receiver. The regulator controls the temperature in the room based on one set temperature. Information about the need to turn on/off the heating device or pump is sent via radio to the WOT-31 receiver, which physically performs the control function. The WOT-31 receiver can additionally be operated remotely via the NaviHome application using a Wi-Fi network.
– controller paired with the receiver and ready for operation,
– wireless communication 868.5 MHz + Wi-Fi 2.4 GHz,
– control based on one temperature,
– ability to control any heating device via the NO 8A contact,
– signal renewal mechanism,
– temperature setting range from + 5°C to + 35°C,
– control based on hysteresis or TPI,
– ability to place the regulator anywhere,
– receiver cooperation WOT-31 with Navi Home (or Tuya)
– mobile application,
– white / black colour version.
Regulator power supply: 2 x LR03 AAA batteries
Receiver power supply: 230 V AC 50 / 60 Hz
Transmission: radio 868,50 MHz
Wi-Fi: 2.4 GHz
Radio range: up to 300 m
Receiver output: NO contact, voltage-free normally open
Maximum receiver load: 8A / 230 VAC
Control algorithm: hysteresis or TPI
Installation: Receiver (surface-mounted) Regulator (surface-mounted or standalone)
