Wi-Fi external antenna ANT-01

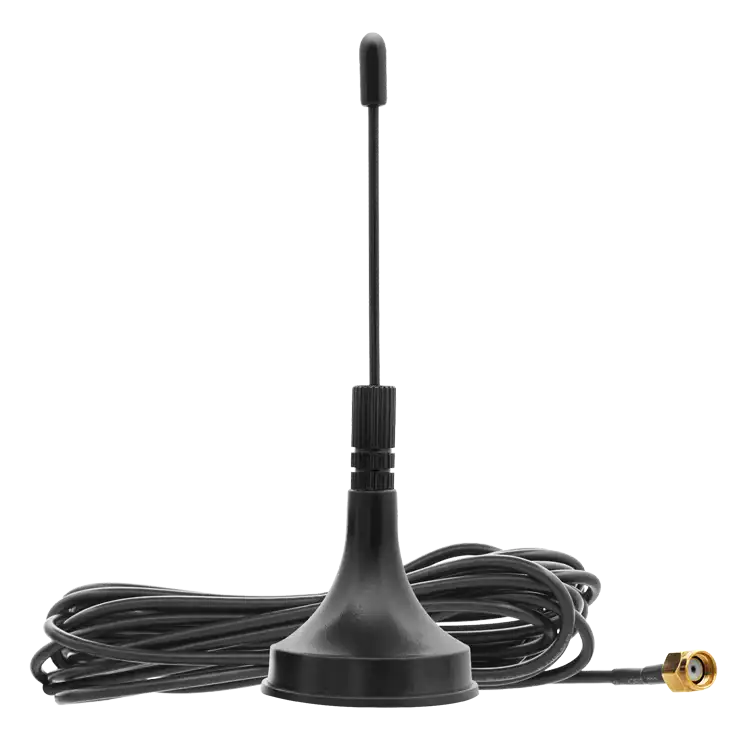

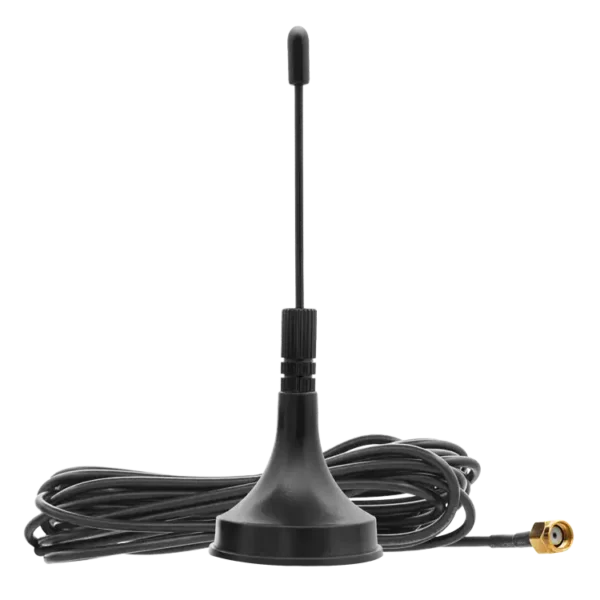

The ANT-01 external antenna is used to output the Exta Free system radio signal outside the installation switchboard. The antenna can be attached to metal surfaces using a magnet built into the base.

Product features

– additional antenna for leading the radio signal outside the switchgear,
– increasing the operating range of transmitters and receivers of the Exta Life wireless control system,
– easy installation using an SMA connector,
– magnetic antenna base,
– cable length: 3 m

 Technical Data

Cable length: 3 m

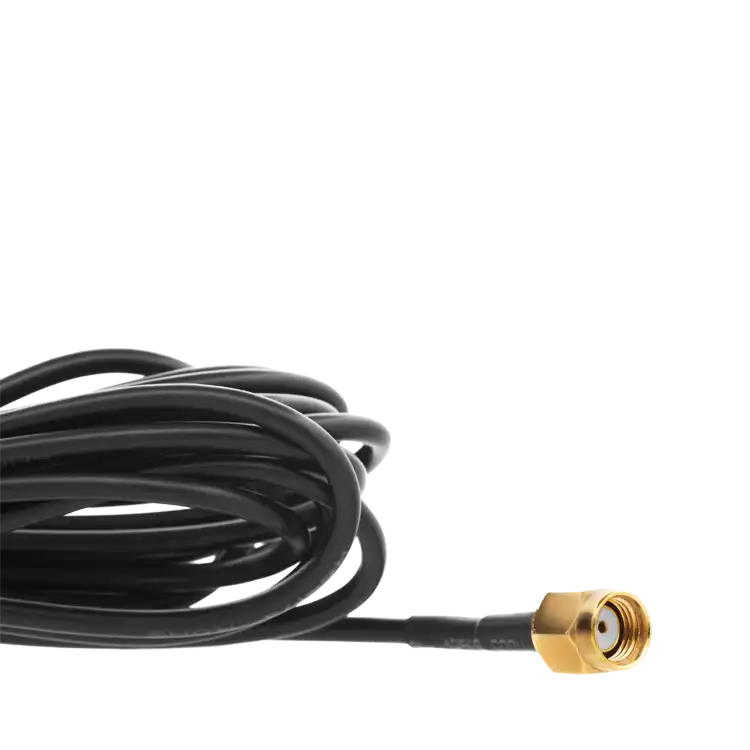

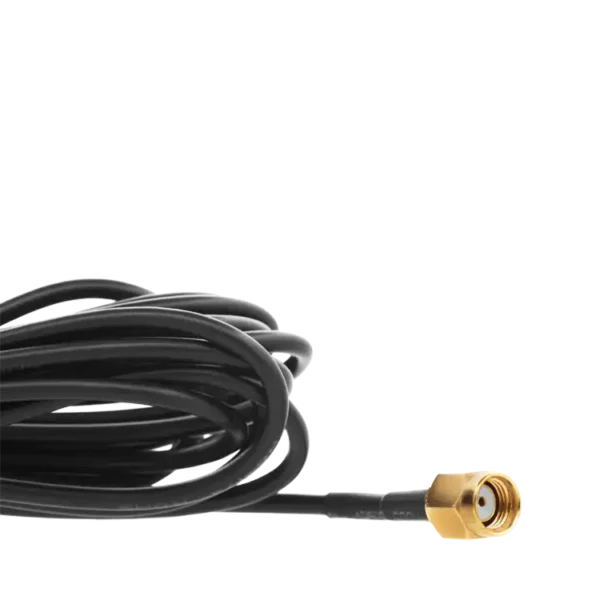

Connection method: SMA screw-in plug
Frequency: 868 MHz
Operating position: any
Housing mounting: magnet or double-sided tape
Temperature range: – 10 ÷ + 55°C
