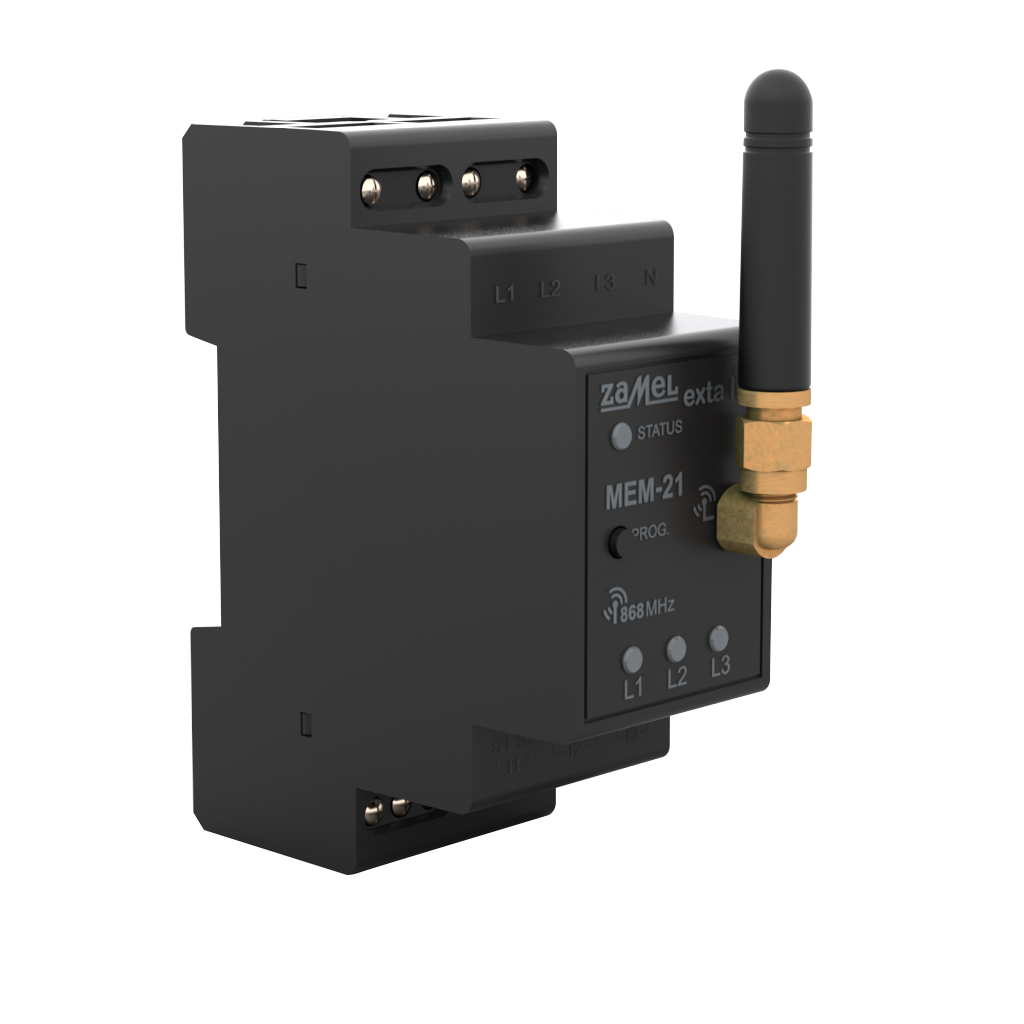

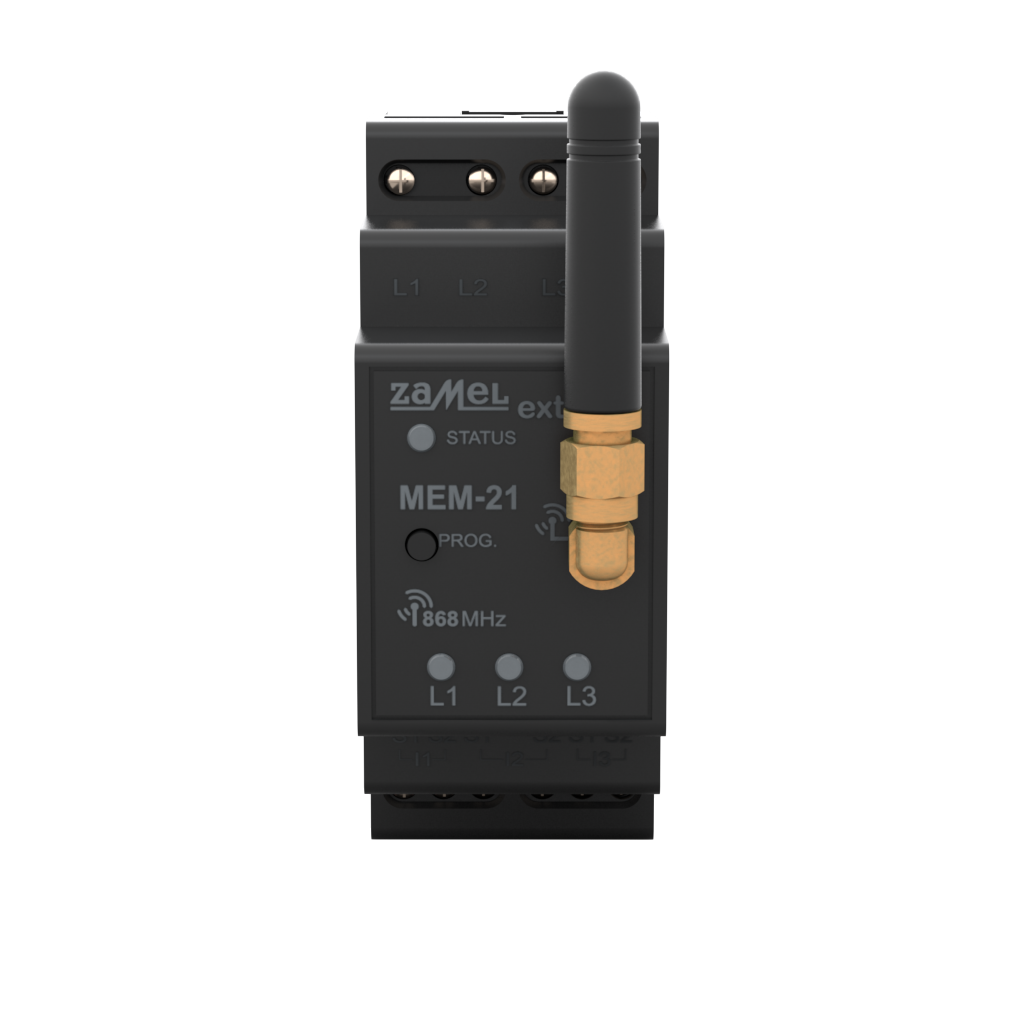

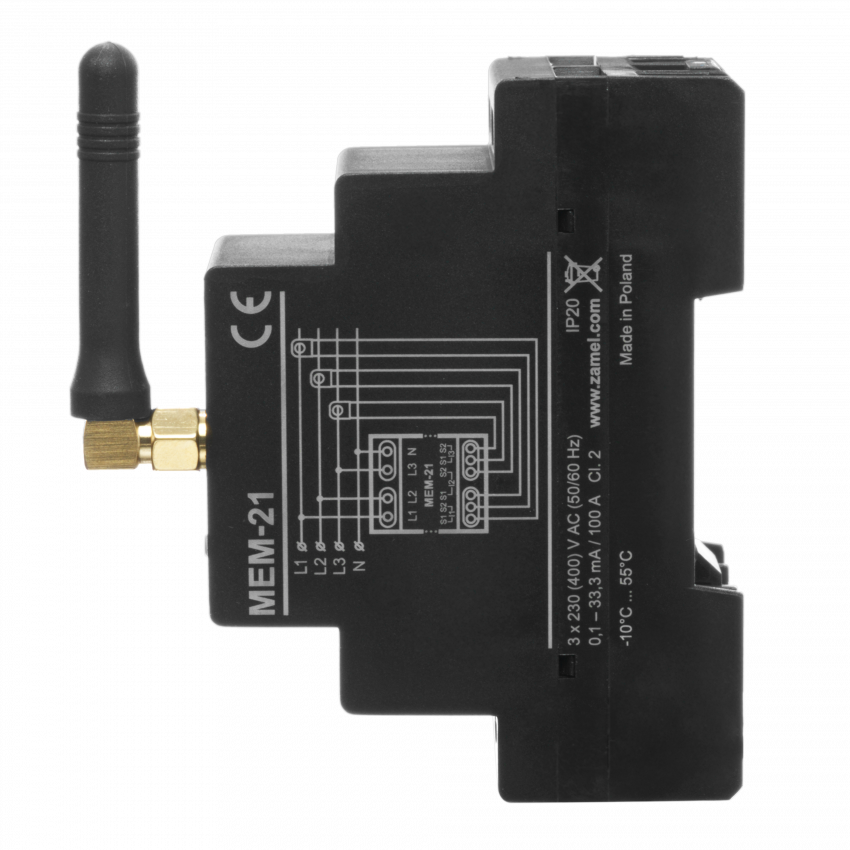

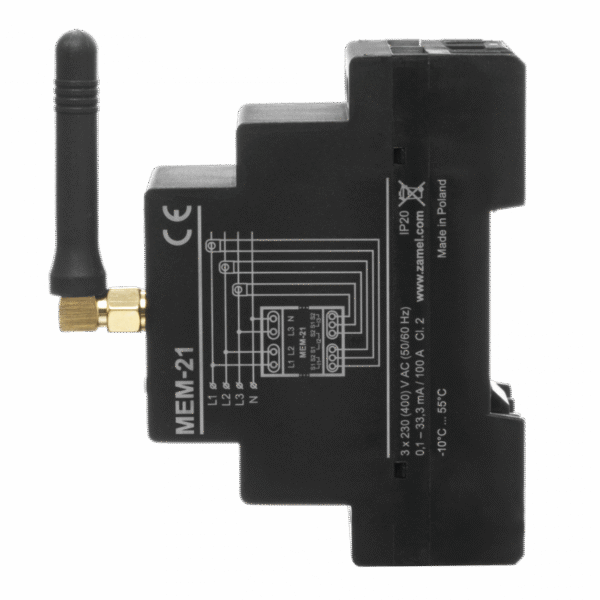

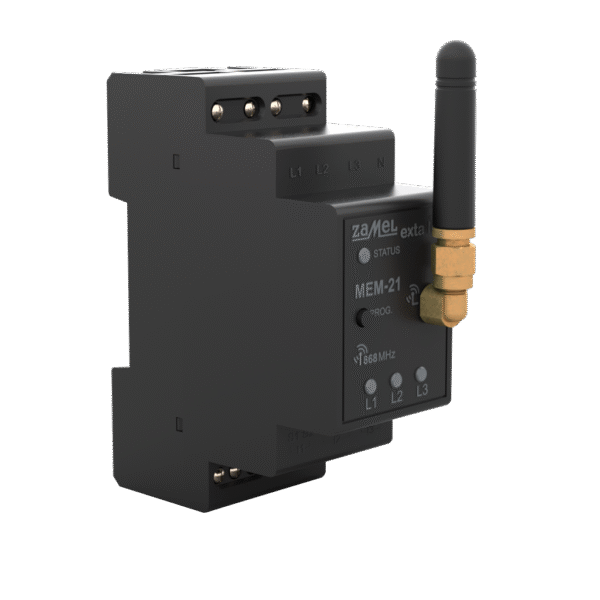

MEM-21
Energy monitor 3F+N
MEM-21 is an electricity monitor that allows you to measure energy, current, voltage and power on each of the three phases. This device can be used as a monitor of energy consumed, produced or both at the same time. Therefore, it can be easily used as a submeter in photovoltaic (PV) installations.
– measurement of energy consumed, produced or both at the same time,
– measurement of network parameters divided into each phase,
– cooperation with the EFC-01 controller,
– measurement carried out using transformers with a maximum current of 100 A,
– signaling the presence of voltage on individual phases, collecting data on energy consumed in the cloud + data export to an xls file,
– possibility of remote software update,
– measurement of network parameters divided into each phase.
Power supply: 3 x 230 V AC / 400 V AC
Frequency: 50 / 60 Hz
Power consumption: 1,5 W (standby)
Transmission: Radio 868,50 MHz
Range: up to 300 m
Measured parameters: Voltage, current, frequency, active, reactive, apparent power, active and reactive energy divided into particular phases
Measuring element: 3 x current transformer
Max. wire cross-section: 2,5 mm2
Installation: DIN rail
