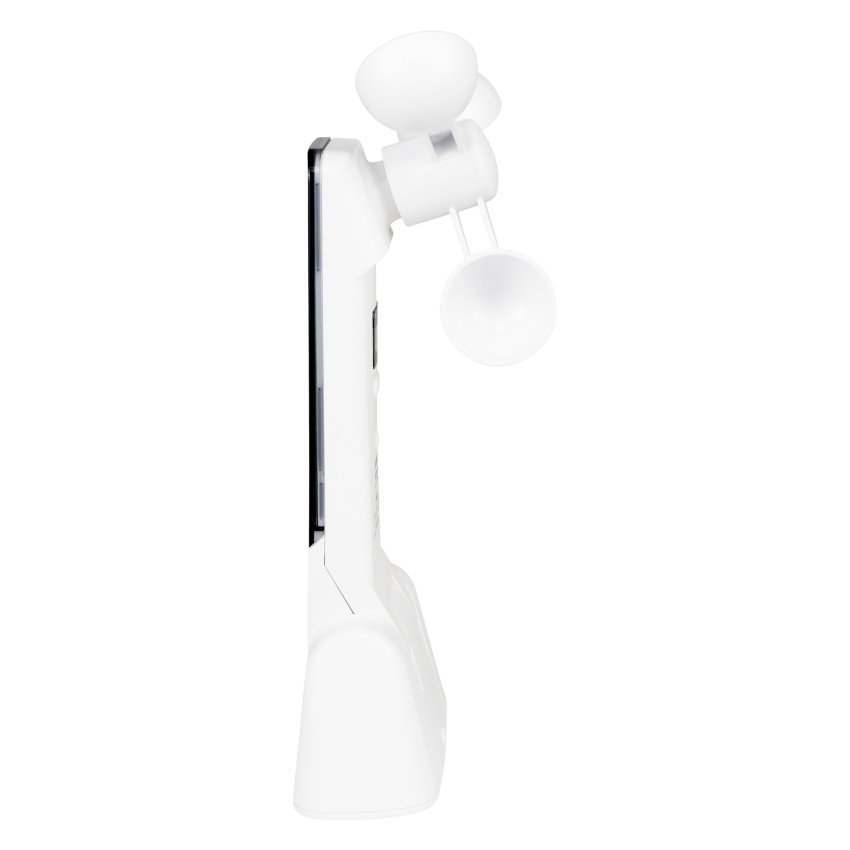

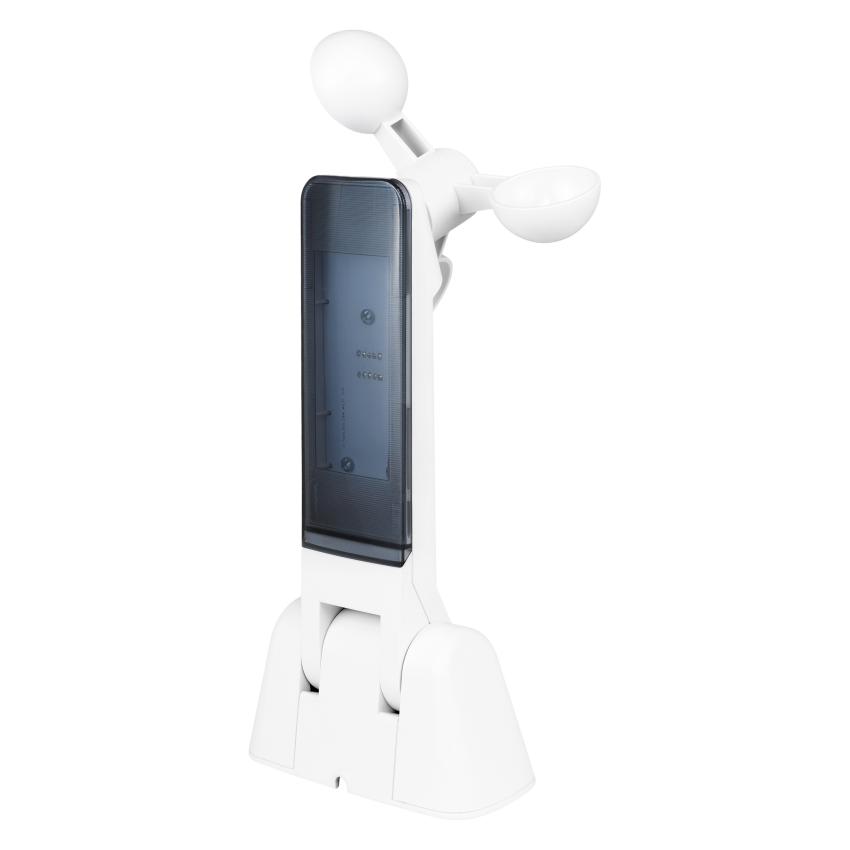

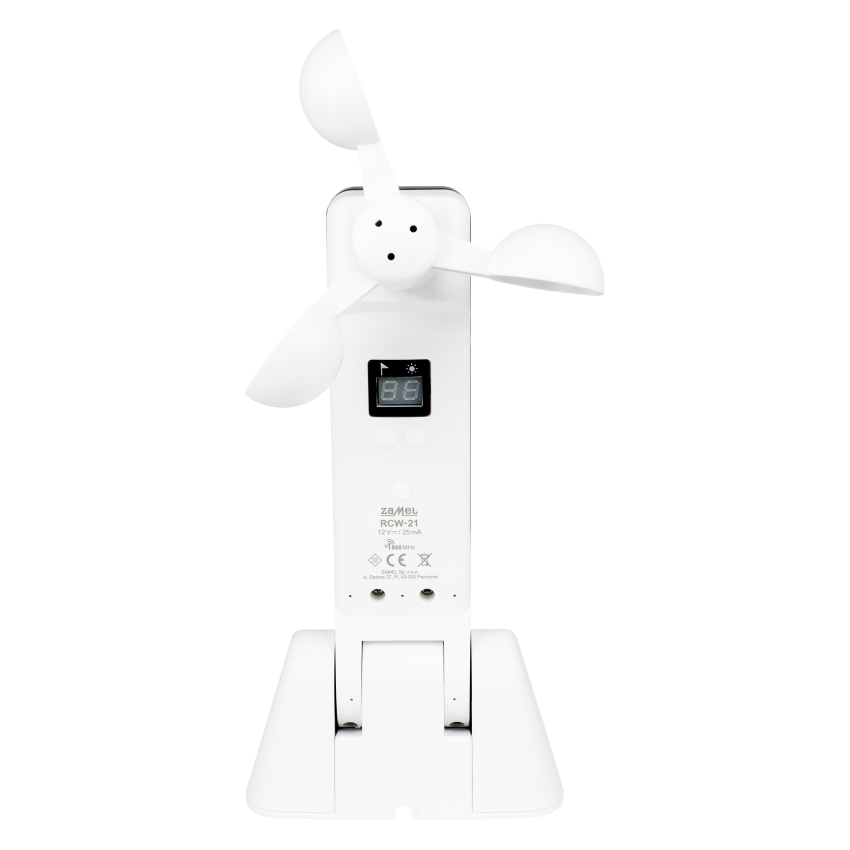

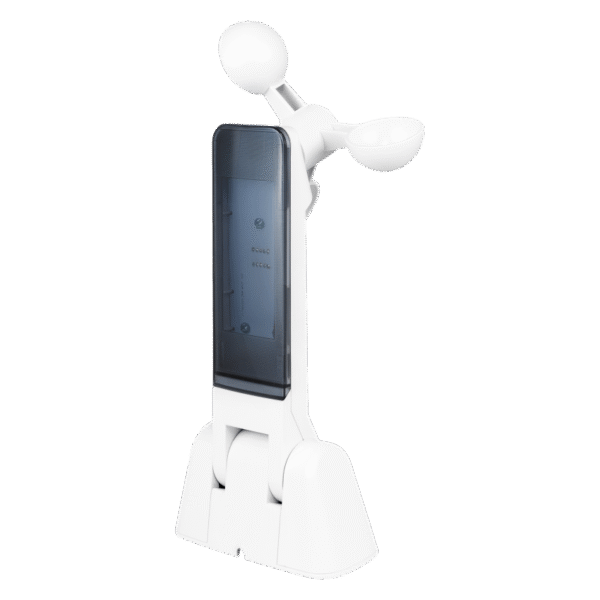

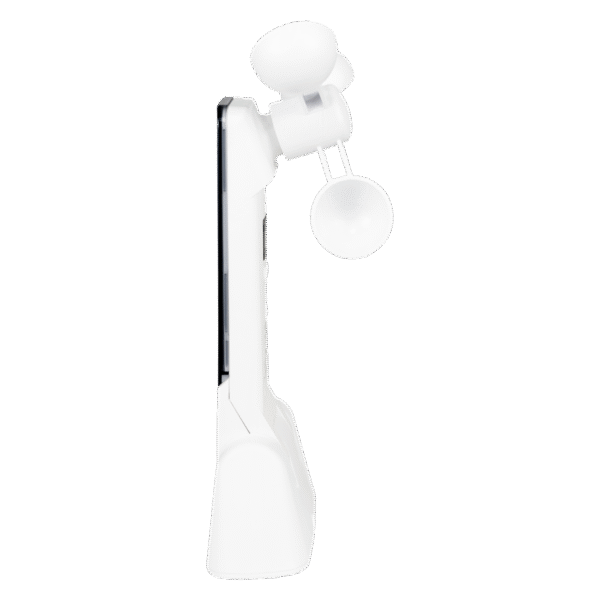

RCW-21
Radio wind and light intensity sensor
The RCW-21 sensor enables measurement of wind speed (range 0 – 99 km/h) and light intensity (range 0 – 99,000 lx). It is dedicated to direct cooperation with SFP-22 controllers. It protects the blinds against damage caused by too strong wind. Exceeding a specific wind speed automatically causes the blinds to roll up and the control function to be blocked for a specified period of time.
– dedicated to direct cooperation with SFP-22 façade blind controllers,
– cooperation with the EFC-01 controller as part of the Exta Life system,
– set activation for the wind sensor (10 levels) in the range of 0-90 km/h (in cooperation with SFP-22),
– measurement of light intensity in the range from 0 to 99,000 lx,
– activation of the SFP-22 controller lock after exceeding the level associated with wind sensor (results in automatic rolling of the blinds + control lock for the set time),
– display of wind speed and light intensity values on the
– display and in the application,
– can be used in logical functions in combination with EFC-01, long operating range (up to 200 m in open areas).-
Power supply: 12 V DC min. 100 mA
Power consumption: 0,24 W
Transmission: radio 868,50 MHz
Range: up to 200 m
Measuring range: 0 to 99 km/h – wind speed, 0 to 99000 lx – illuminance
External mounting: yes (IP44)
Mounting: surface-mounted (2 screws)
