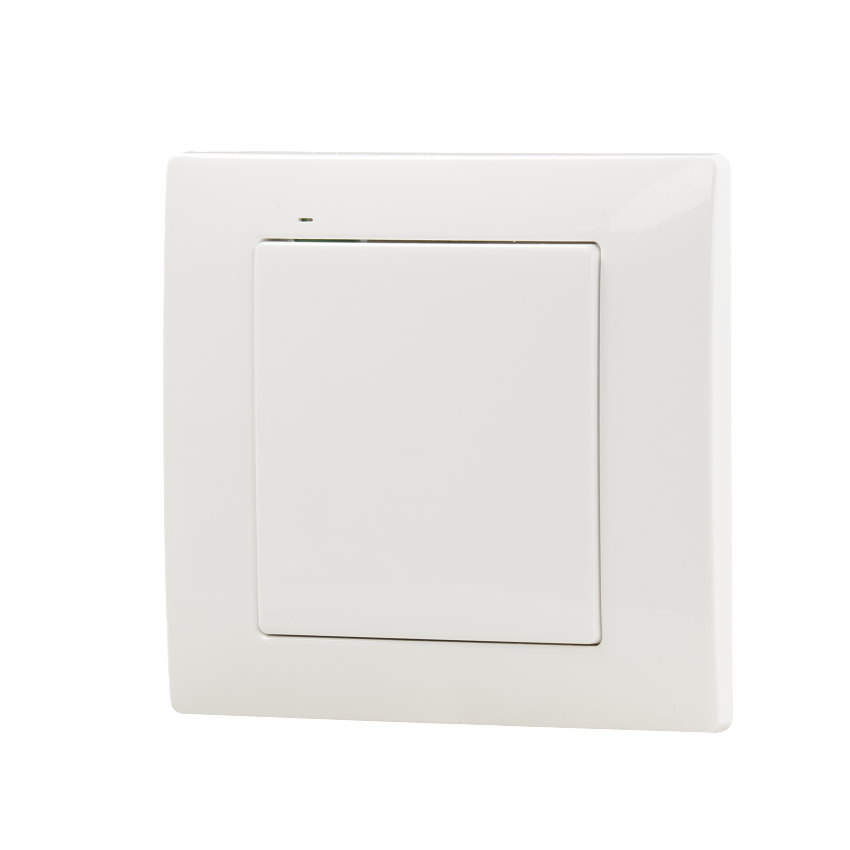

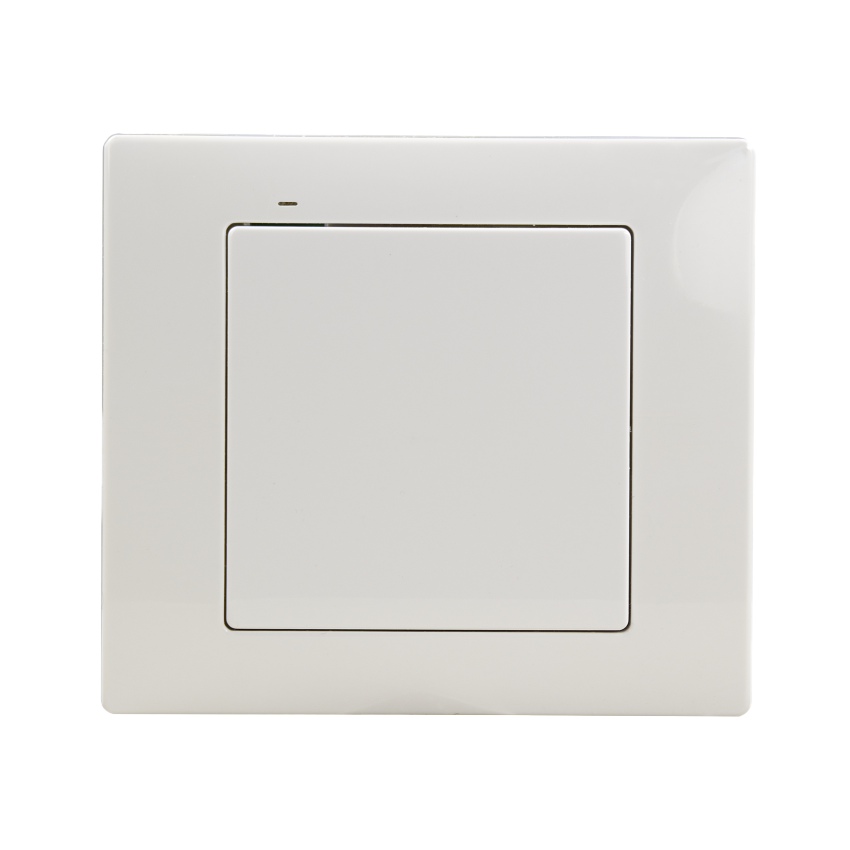

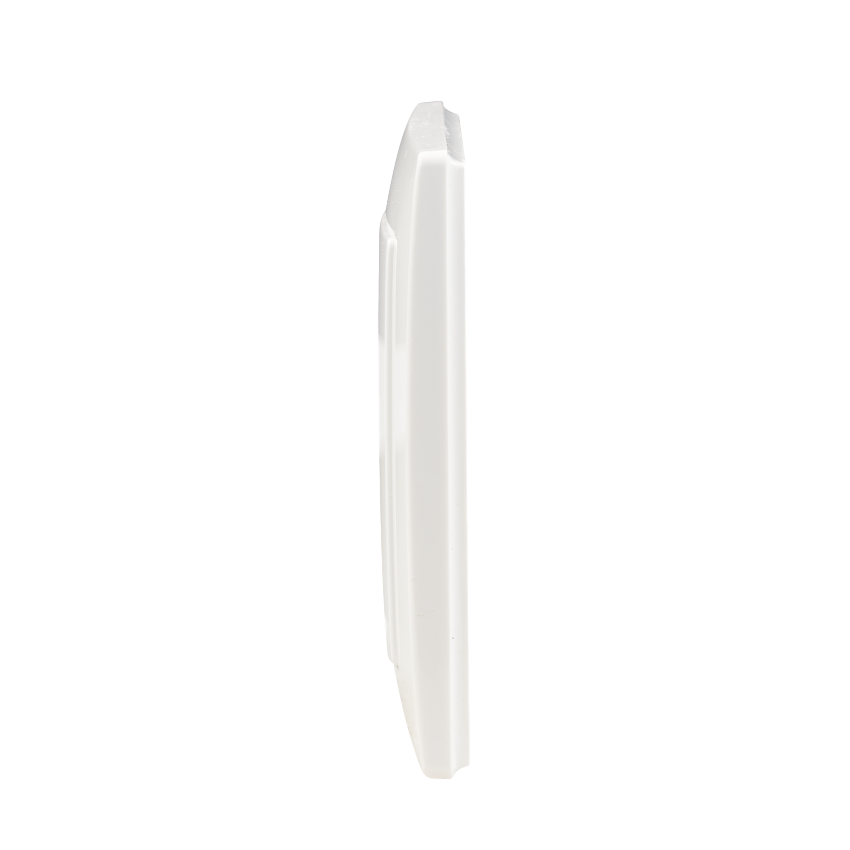

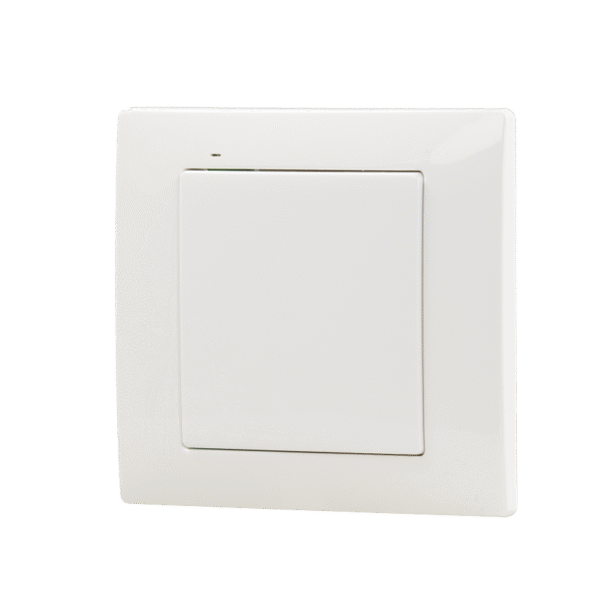

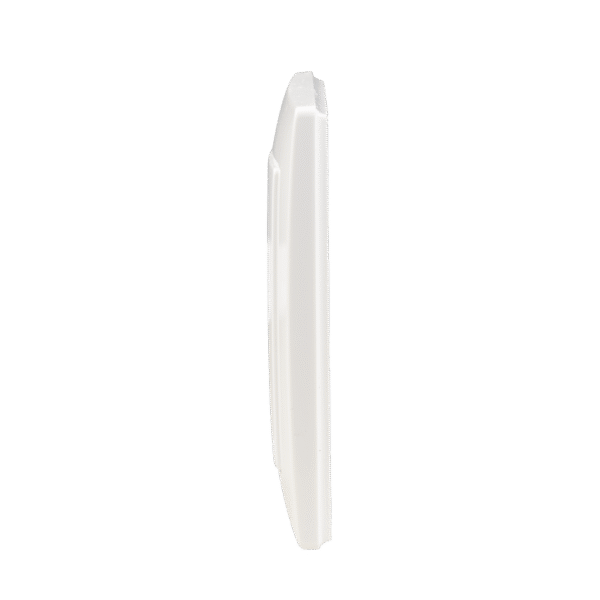

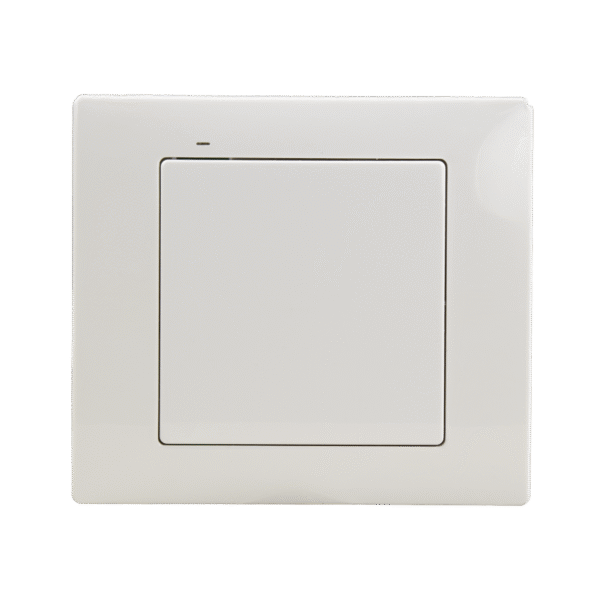

RNK-22
Radio push button transmitter, 2-channel
The RNK-22 radio surface-mounted transmitter is used to send control signals and information about the temperature value in the EXTA LIFE system. It is used to perform operations such as switching on/off, brightening/dimming, and controlling window blinds.
– one-key (2-button) radio transmitter,
– remote control of Exta Life system receivers,
– ability to independently control of two receivers,
– coded radio transmission,
– integrated internal temperature sensor,
– temperature measurement carried out by the sensor: from – 40 to + 125°C,
– battery powered,
– signaling of transmission and battery discharge,
– easy installation using double-sided tape or two screws,
– long operating range (up to 300 m in an open area).
Power supply: 3 V DC
Battery type: CR2032
Transmission: radio 868,50 MHz
Number of channels: 2
Range: up to 300 m
Temperature measurement: – 40 to + 125 °C
Operation indication: green LED
Installation: surface-mounted (screws or double-sided tape)
