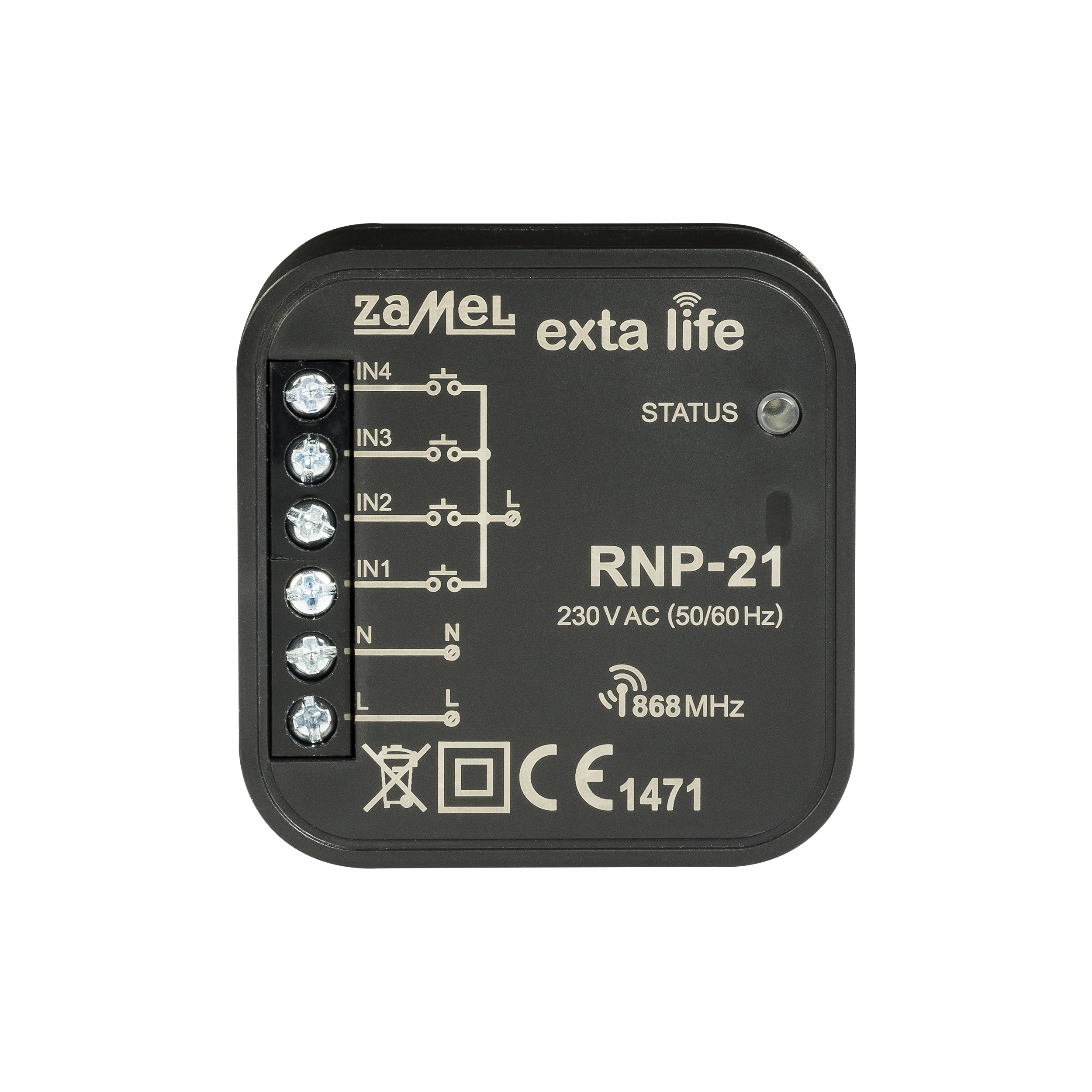

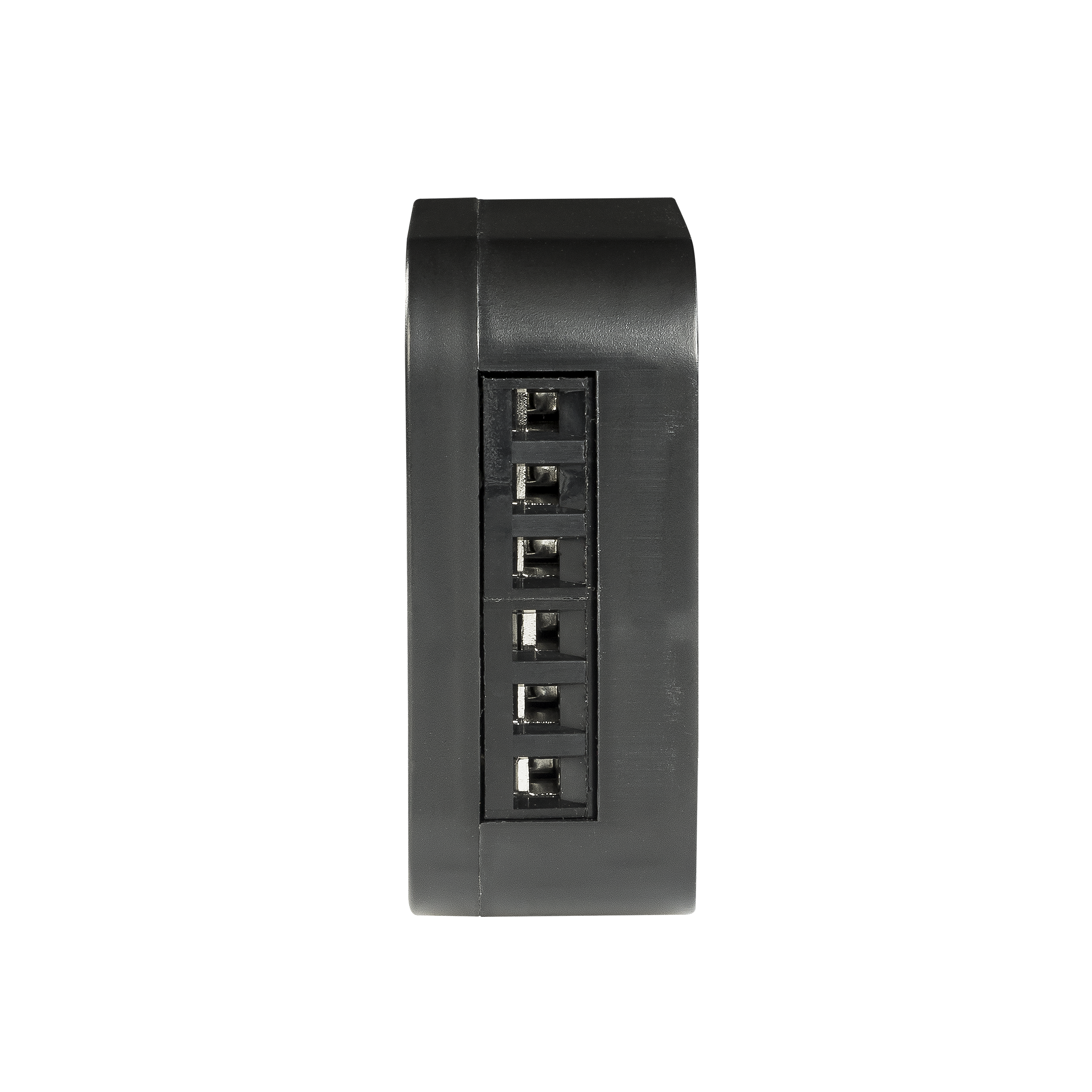

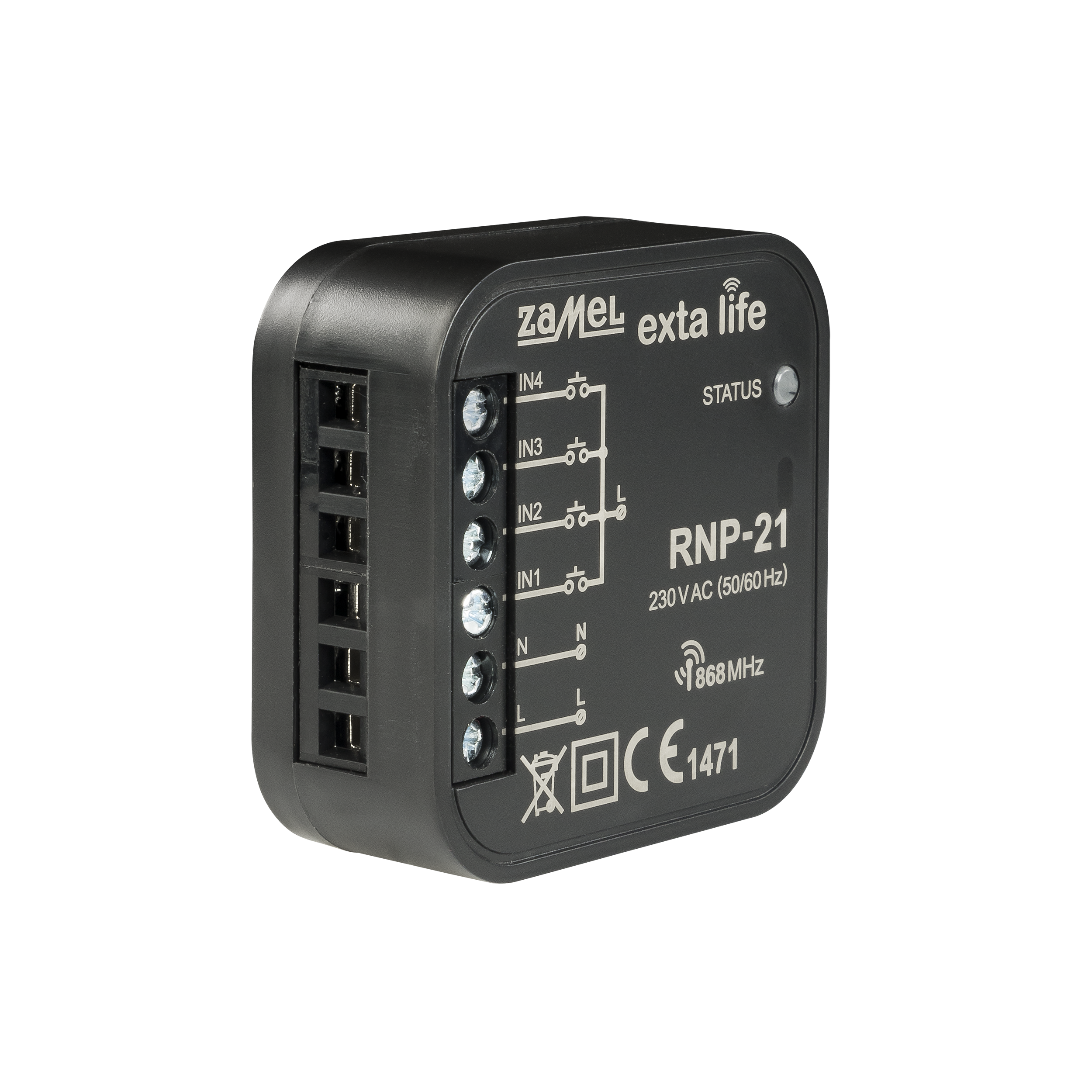

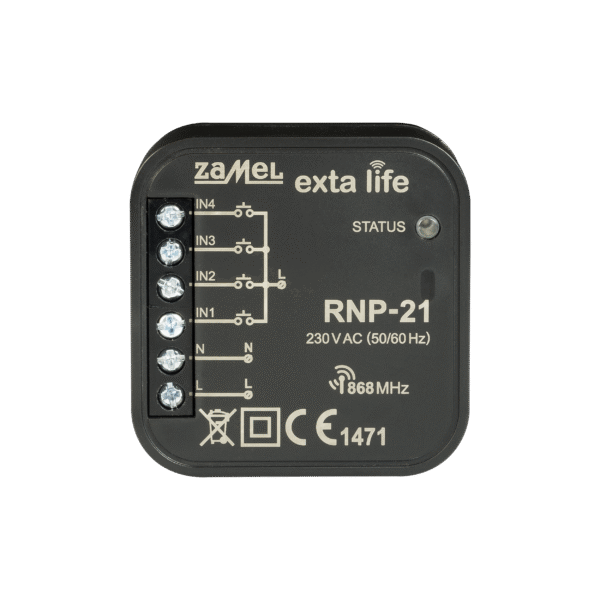

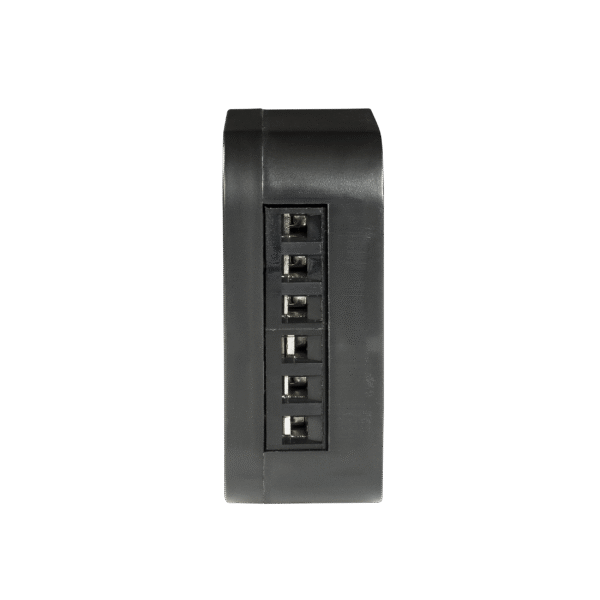

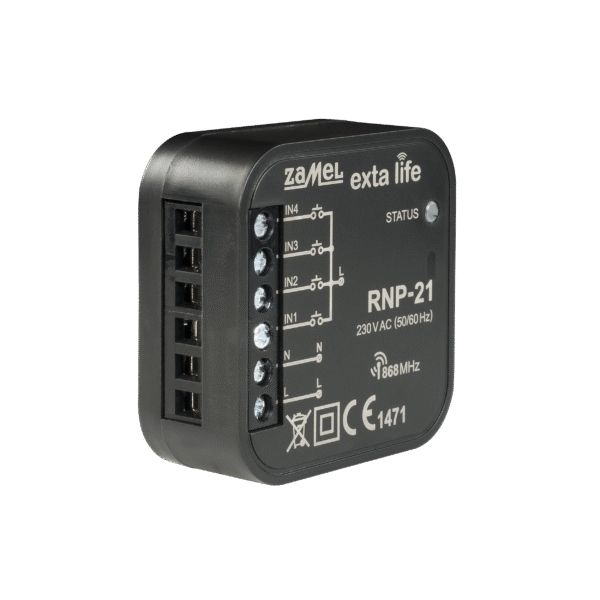

RNP-21
Radio transmitter 4-channel
The RNP-21 transmitter enables wireless control of Exta Life system receivers. It is designed to perform functions such as remotely turning on/off lighting, adjusting lighting intensity, closing/opening window blinds and garage doors. It is intended for installation in junction boxes (minimum Ø 60 mm) under existing equipment.
– remote control of Exta Life system receivers,
– installation under traditional installation equipment,
– ability to independently control up to four receivers (circuits)
– coded radio transmission,
– 230 V AC power supply,
– long operating range (up to 300 m in open areas).
Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: 0,65 W (standby)
Transmission: Radio 868,50 MHz
Range: up to 300 m
Inputs: 4
Installation: Ø 60 mm junction box (under accessories)
