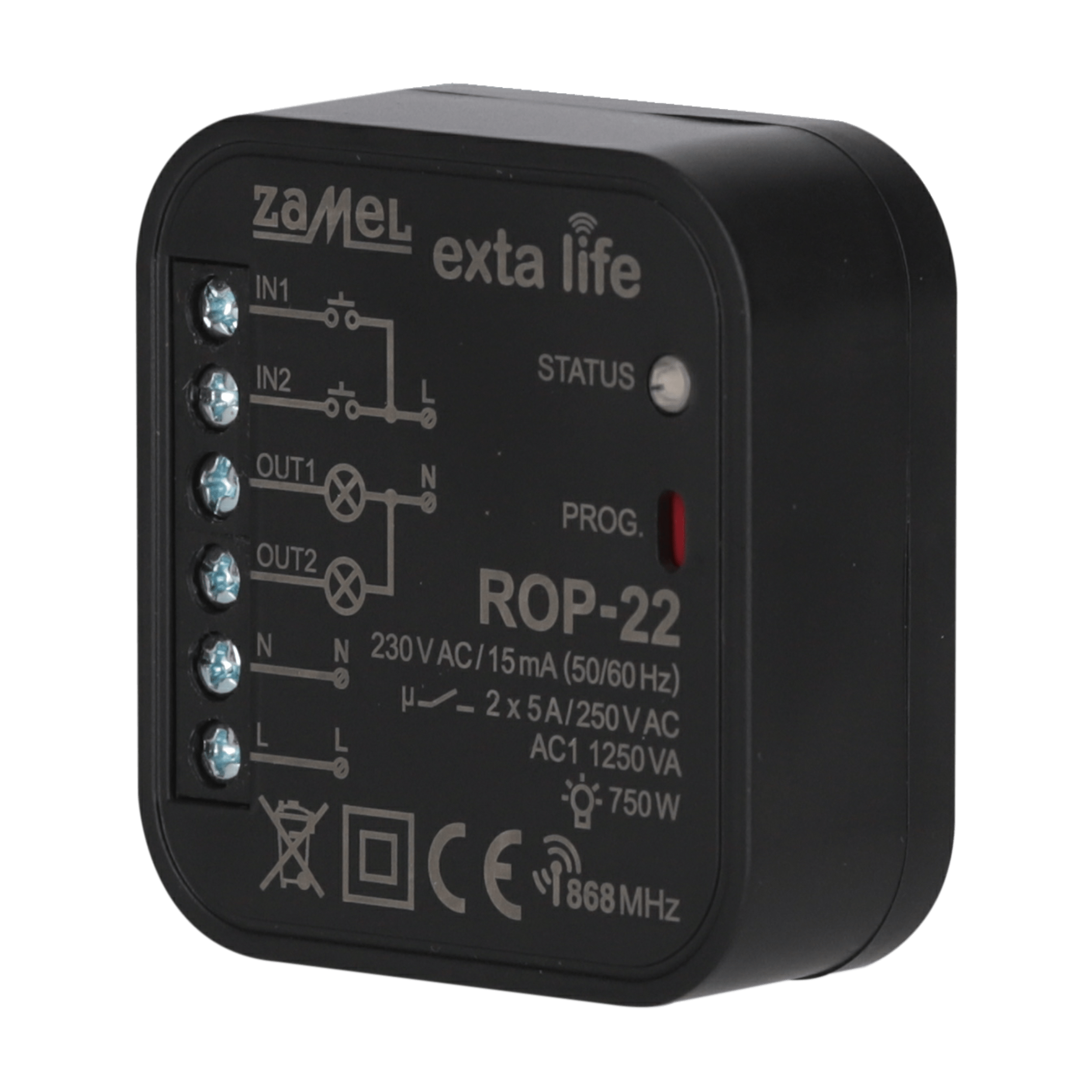

ROP-22
Radio light and electrical equipment controller, 2-channel
ROP-22 enables independent control of any two 230 V AC devices/circuits. It is especially dedicated to controlling lamps, halogen, LED and CFL compact fluorescent lamps. Control in cooperation with a controller can be performed via the application. Additionally, radio remote controls and traditional installation connectors can be used.
– 2 output channels (voltage outputs),
– programmable state of the outputs after a power failure,
– possibility of connecting monostable or bistable switches,
– 4 operating modes in cooperation with transmitters (on/off, bistable, monostable, time),
– 2 operating modes in cooperation with the controller (switch on/off, timer),
– independent times for radio transmitters, controller and external input, – independent times for each of the outputs,
– possibility of remote software update,
– dedicated to controlling two circuits.
Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: 0,40 W (standby) 1,10 W (both outputs on)
Transmission: radio 868,50 MHz
Range: up to 330 m
Output: relays 2 x NO 5A / 250 V AC (voltage output)
Inputs: 2
Installation: Ø 60 mm junction box
