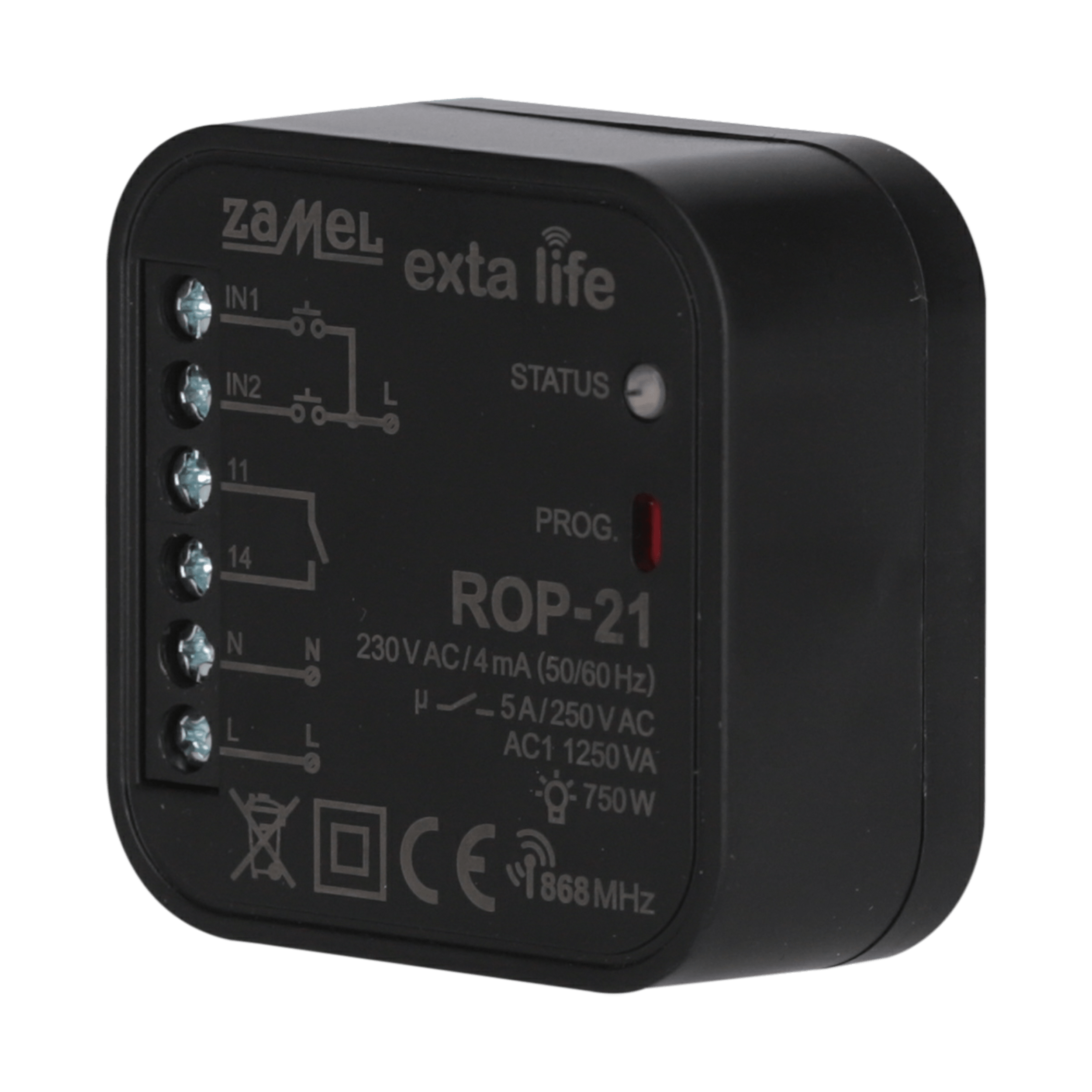

ROP-21
Radio light and electrical equipment controller, 1-channel
ROP-21 is the final element of the EXTA LIFE system, which allows you to control any devices in your home or office. The output in the form of a single normally open contact enables the control of low-voltage circuits (e.g. 12/24 V AC/DC) and standard circuits in home installations (230 V AC). Control can be done using applications, remote controls or wired using buttons
– 1 output channel (voltage-free contact),
– bi-directional transmission – indication of the current output state in the application,
– programmable output state after switching on the supply voltage,
– 2 programmable external inputs,
– possibility of connecting monostable or bistable switches,
– 4 operating modes in cooperation with transmitters (switch on/off, bistable, monostable, timer),
– 2 operating modes in cooperation with the controller (switch on/off, timer),
– independent times for radio transmitters, controller and external inputs,
– possibility of remote software update.
Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: 0,45 W (standby) 0,80 W ((output on)
Transmission: Radio 868,50 MHz
Range: up to 330 m
Output: relay 1 x NO 5A / 250 V AC (make contact)
Inputs: 2
Installation: Ø 60 junction box
