Radio flush-munted transmitter, 4-channel, battery-powered
Radio flush-munted transmitter, 4-channel, battery-powered - obrazek 2
Radio flush-munted transmitter, 4-channel, battery-powered - obrazek 3
Documents for download
User
manual
Wiring diagram
Declaration of conformity
Product
card

RNP-22

SKU: EXL10000021-WUN Kategorie: , ,

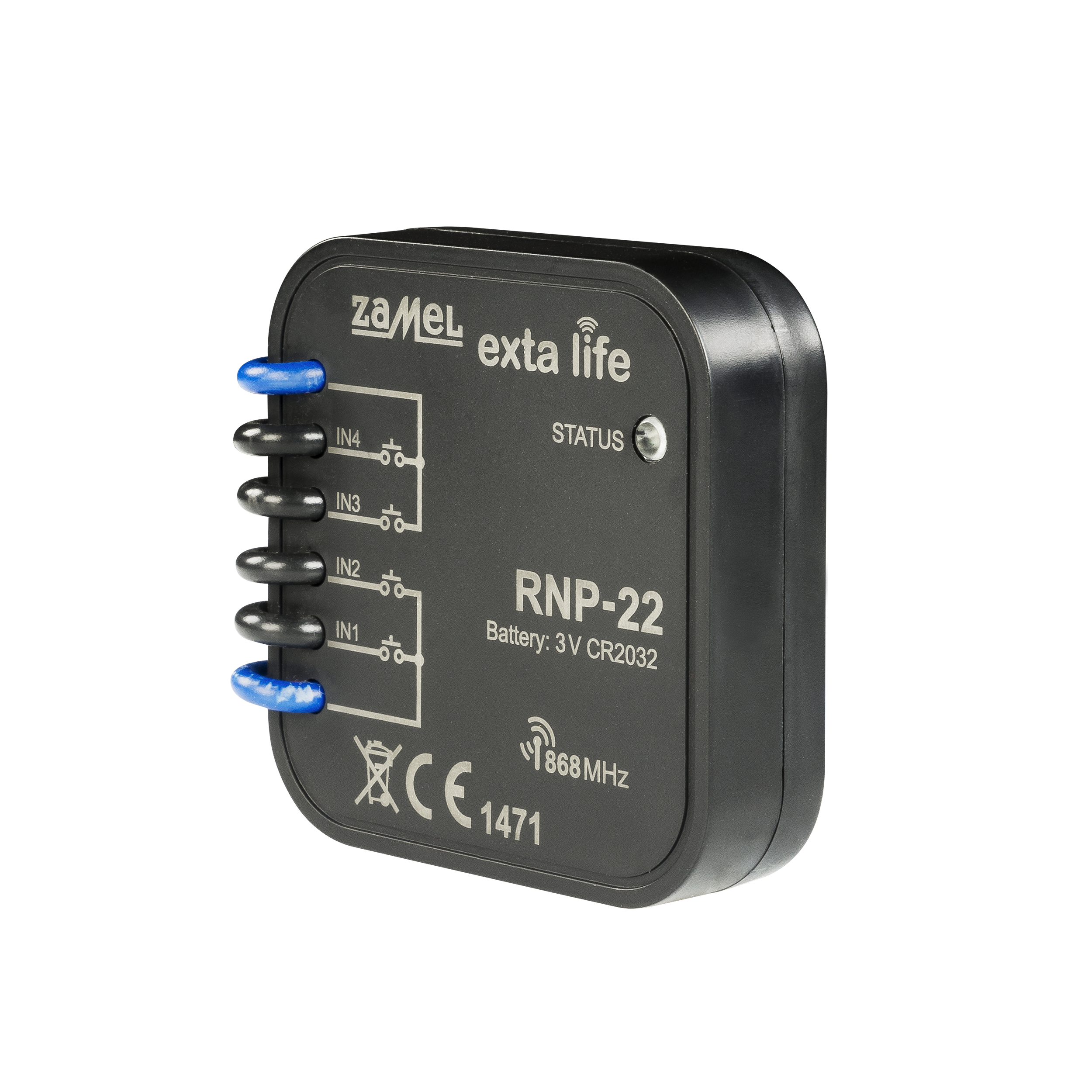

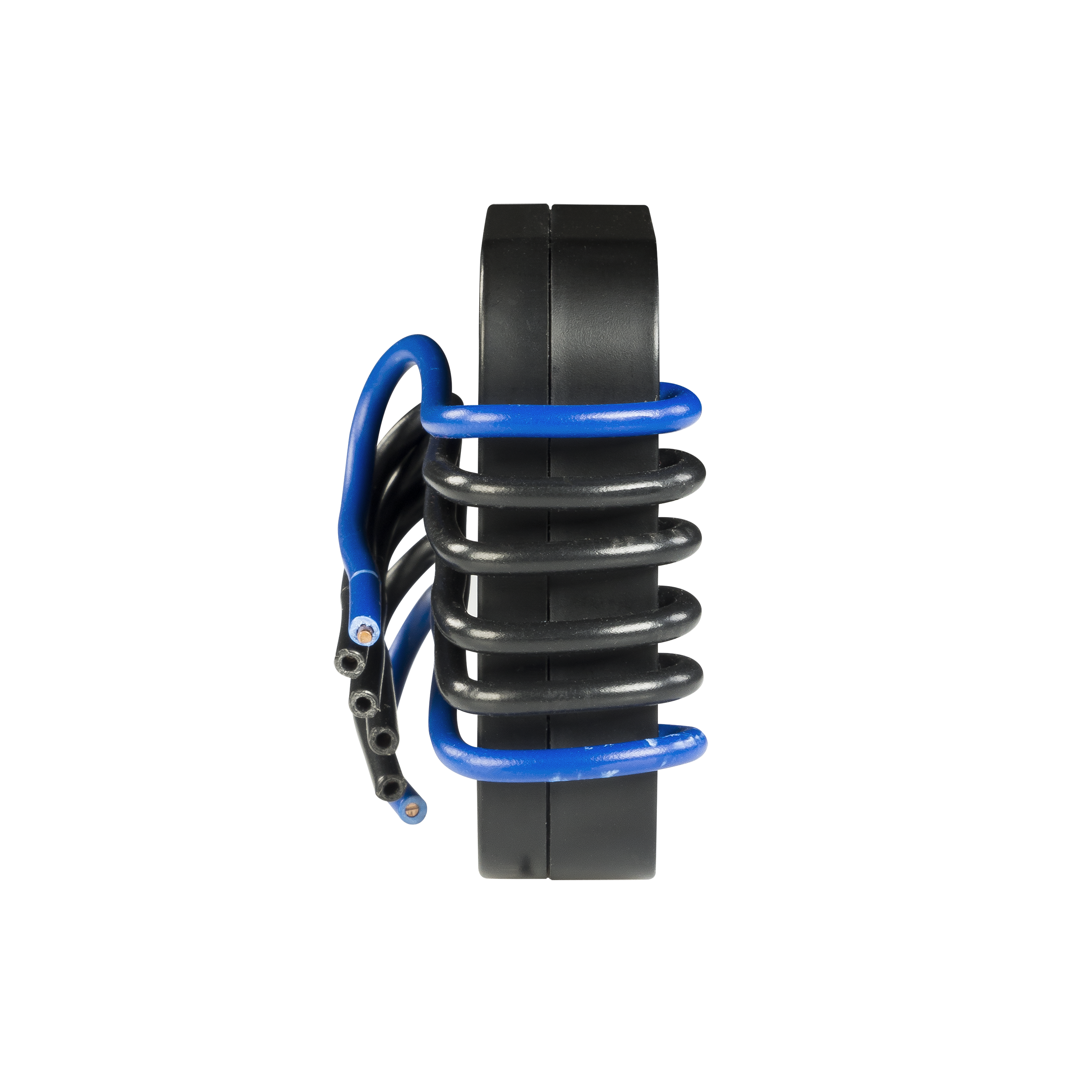

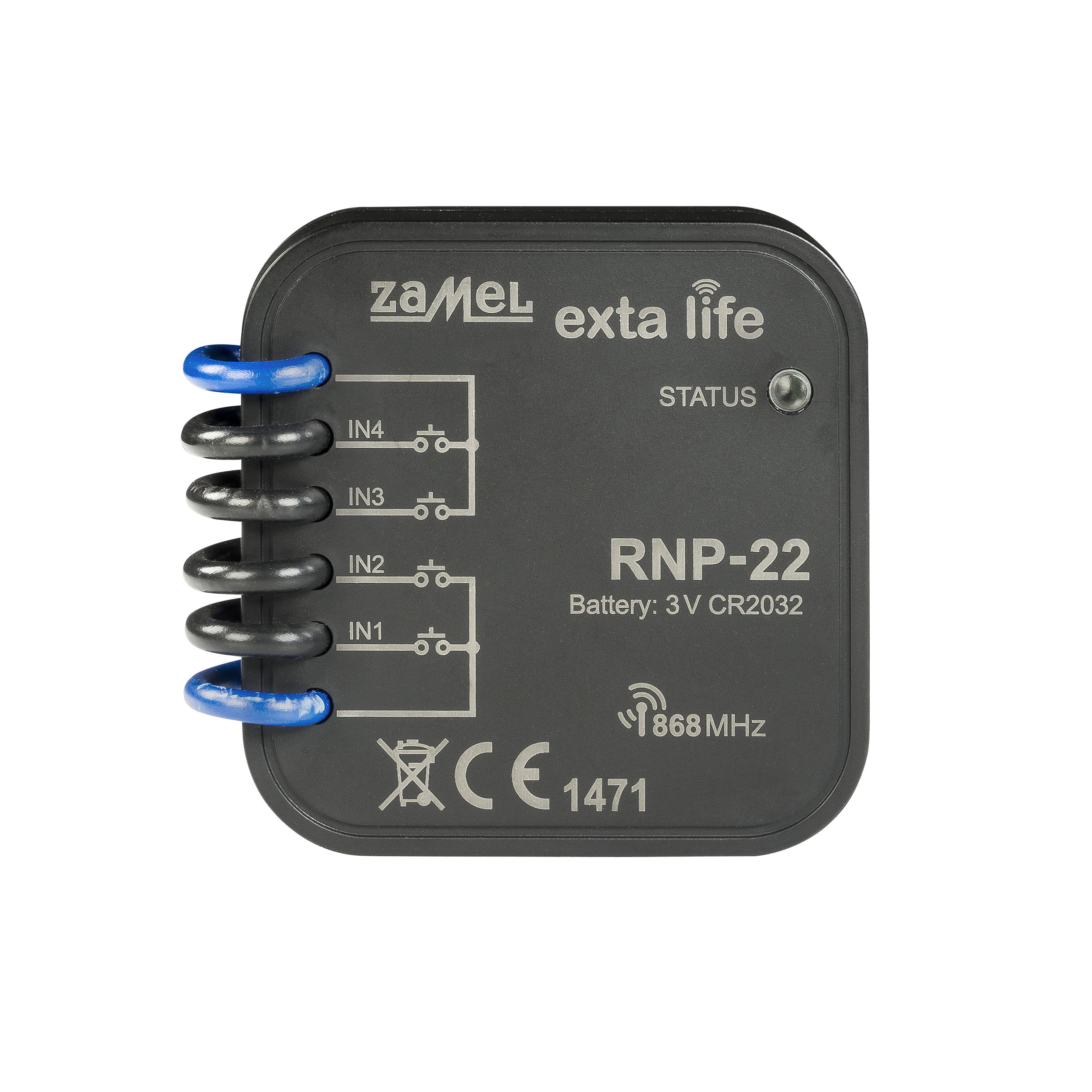

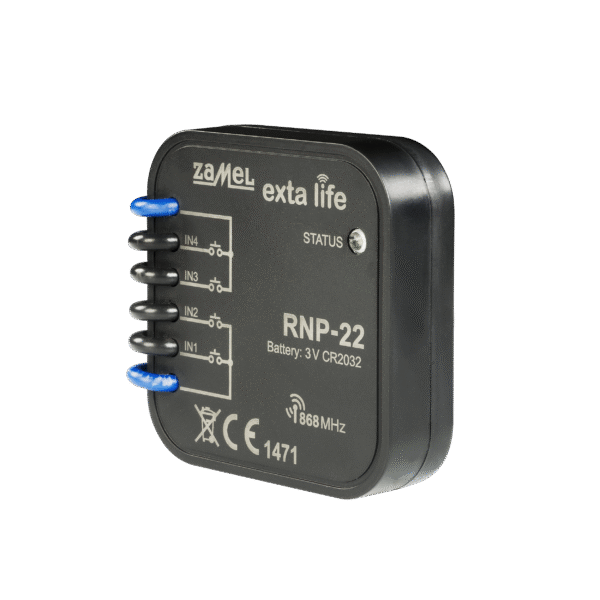

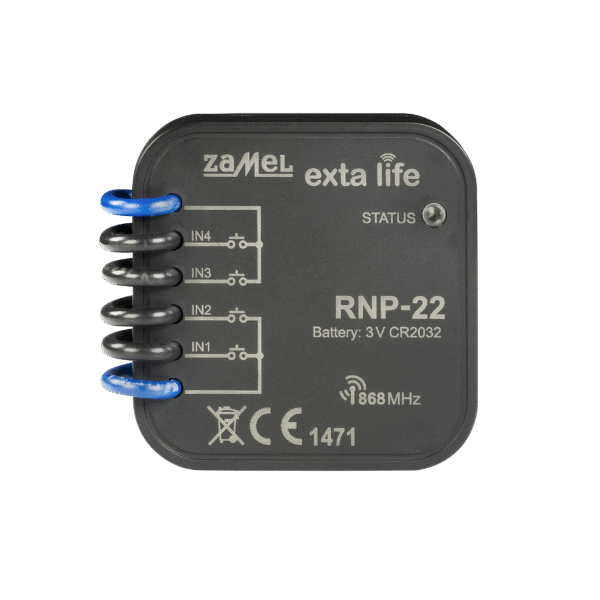

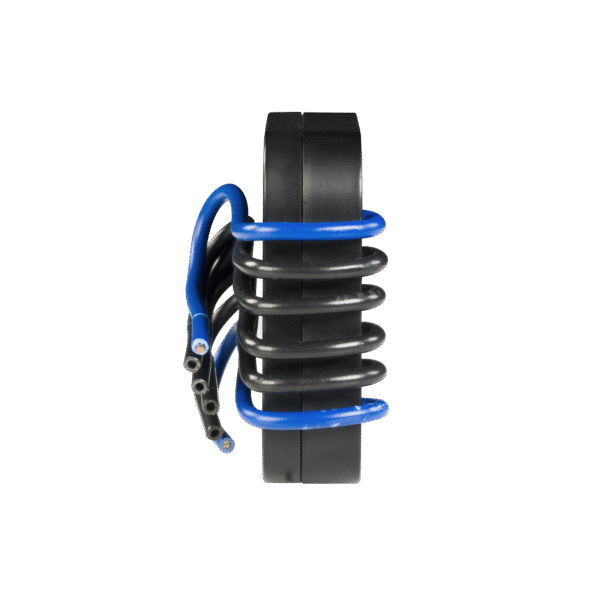

Radio flush-munted transmitter, 4-channel, battery-powered

The RNP-22 transmitter enables wireless control of EXTA LIFE system receivers. It is designed to perform functions such as remotely turning on/off lighting, adjusting lighting intensity, closing/opening window blinds and garage doors. This allows the use of electrical installation equipment from any manufacturer and does not impose any restrictions on the design and character of the interior.

Product features

– 4-input (4-channel) radio transmitter,
– remote control of Exta Life system receivers,
– ability to independent control up to four circuits (receivers),
– coded radio transmission, 3 V DC battery power supply,
– small dimensions enabling installation under
– traditional installation equipment,
– long operating range (up to 300 m in open area).

 Technical Data

Power supply: 3 V DC
Battery type: CR2032
Transmission: radio 868,50 MHz
Number of channels: 4
Range: up to 300 m
Operation indicator: green LED
Installation:: flush-mounted – Ø 60 mm junction box
