LED controller, 4-channel

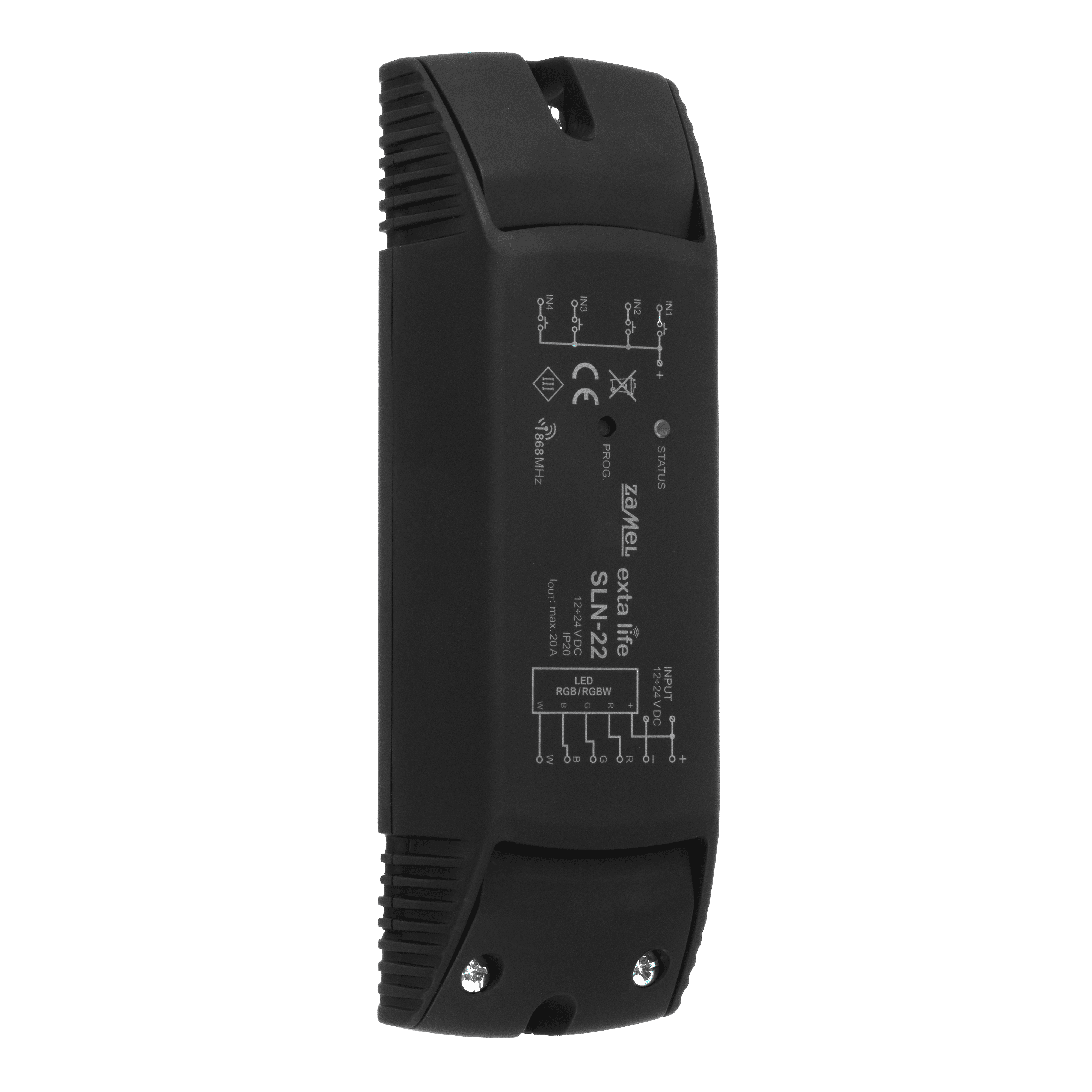

The SLN-22 controller is the final element of the EXTA LIFE system designed to control RGB or RGBW strips, which are powered by 12÷24 VDC. It is distinguished by increased output load of 8A/channel. In addition to the standard functionality of selecting colour and adjusting brightness, the controller offers additional functions such as automatic, smooth colour change mode and defined programs.

Product features

– compatible with the EFC-01 controller and Exta Life system transmitters,
– control of RGB or RGBW LED strips powered by 12÷24 V DC,
– bi-directional transmission – indication of the current controller status in the application,
– programmable output status after a power failure,
– 4 configurable external inputs,
– possibility of connecting mono or bistable switches,
– possibility of remote software update,
– on/off function,
– brightness adjustment and change color,
– special programs.

Technical Data

Power supply: 12 to 24 V DC
Power consumption: 0,24 W (standby)
Transmission: radio 868,50 MHz
Range: up to 230 m
Number of outputs: 4 (R, G, B, W)
Output: MOSFET transistor, PWM regulation
Max. channel load: 8 A
Max. receiver load: 20 A
Number of inputs: 4
