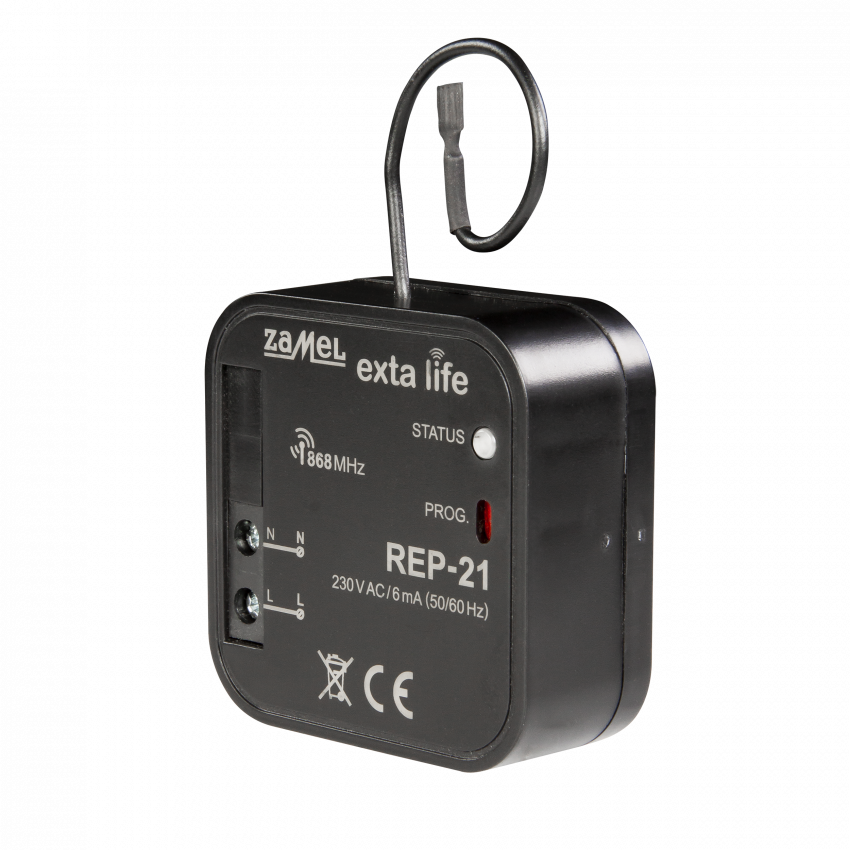

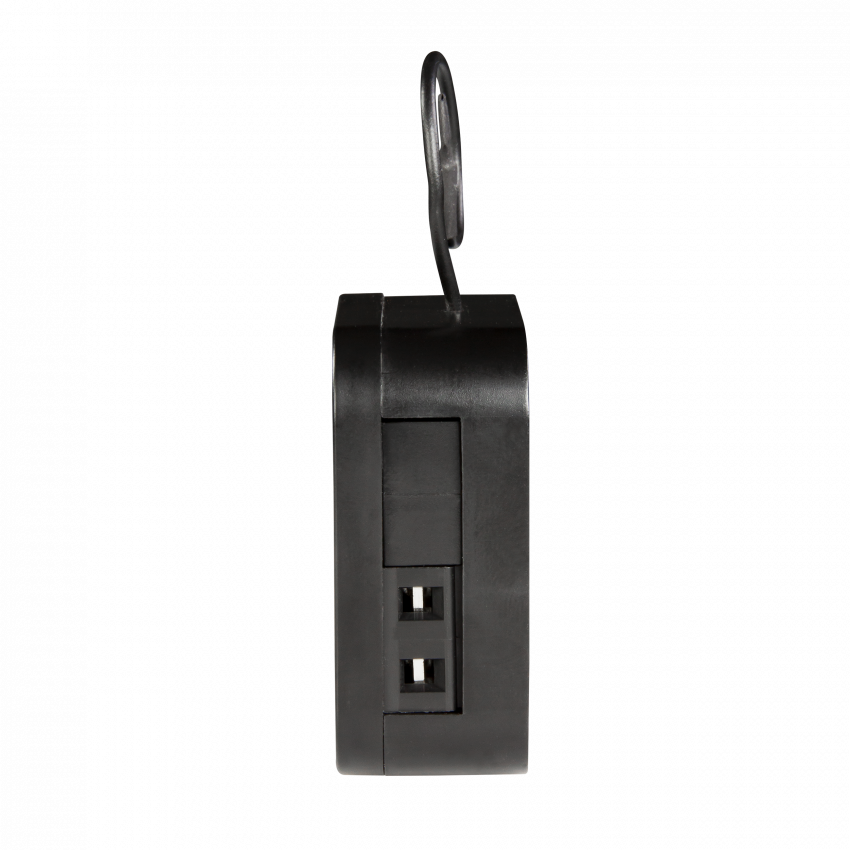

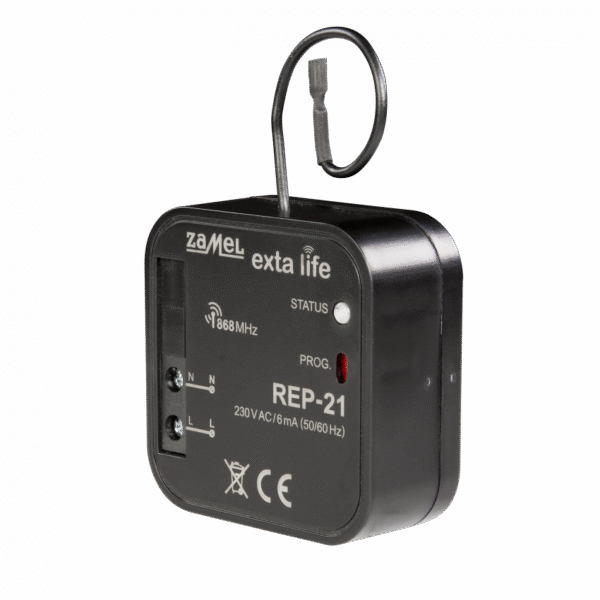

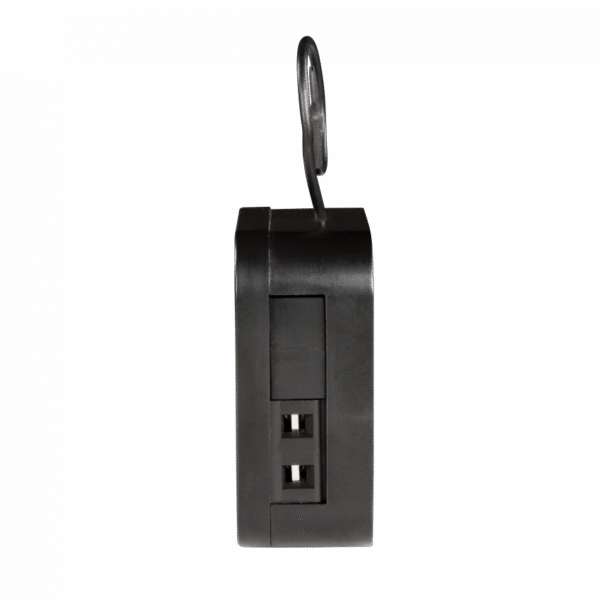

REP-21
Exta Life retransmitter
The REP-21 retransmitter increases the operating range of devices operating in the EXTA LIFE system. This applies to communication between: receivers, sensors and transmitters and the EFC-01 controller, as well as direct communication between radio transmitters and receivers of the EXTA LIFE system (without a controller). A single retransmitter increases the operating range by approximately 250 m in an open area.
– rated supply voltage of 230 V AC,
– easy and intuitive operation from the application level,
– cooperation with Exta Life system elements,
– installation in Ø 60 mm installation boxes,
– increased range to 250 m in open areas,
– possibility of remote software update.
Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: 0,50 W
Transmission: Radio 868,50 MHz
Range: up to 250 m
Installation: Ø 60 mm junction box
