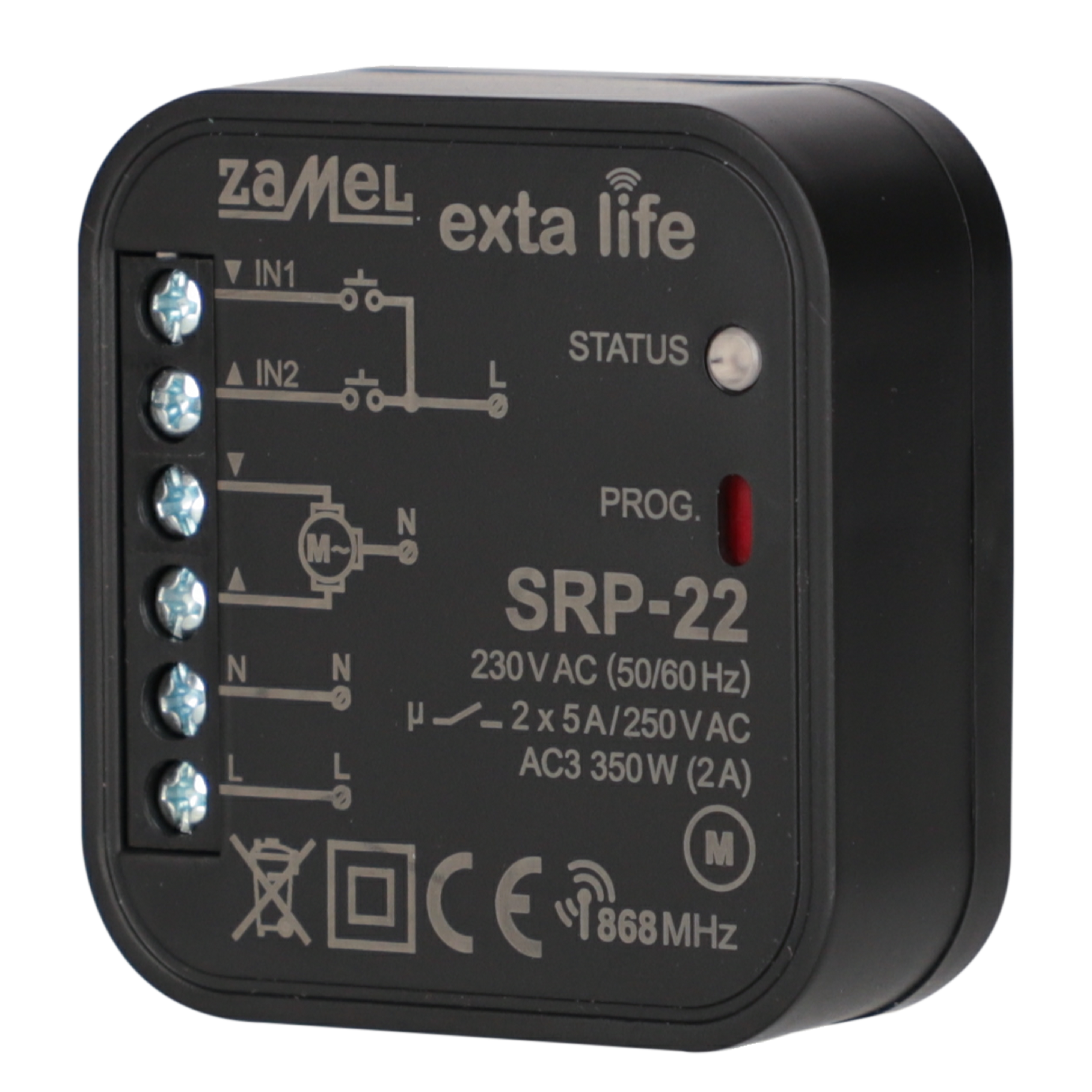

Radio roller blind controller

SRP-22 is designed to control window roller blinds or other devices powered by single-phase 230 VAC motors. Control can be carried out wireless from the level of transmitters or the EXTA LIFE controller and wired from the level of blind buttons. IN1 and IN2 inputs configured in the mobile application are used for wired control.

Product features

– information about the current position of the roller blind in the mobile application (% closed + icon),
– programmable external inputs (local or central control function),
– ability to connect a single or double blind button,
– programmable roller shutter movement time,
– 2 defined „favorite” settings for transmitters and external inputs,
– up to 4 defined „favorite” settings called from the application,
– 2 operating modes in cooperation with transmitters (local / central),
– type control from the application level open – stop –
– close + change the position of the roller shutter using the slider.

Technical Data

Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: 0.40 W (standby) 0.70 W (work)
Transmission: Radio 868,50 MHz
Range: up to 330 m
Output: relays 2 x NO 5A / 250 VAC (max. 350 W AC3)
Inputs: 2
Installation: Ø 60 mm junction box
