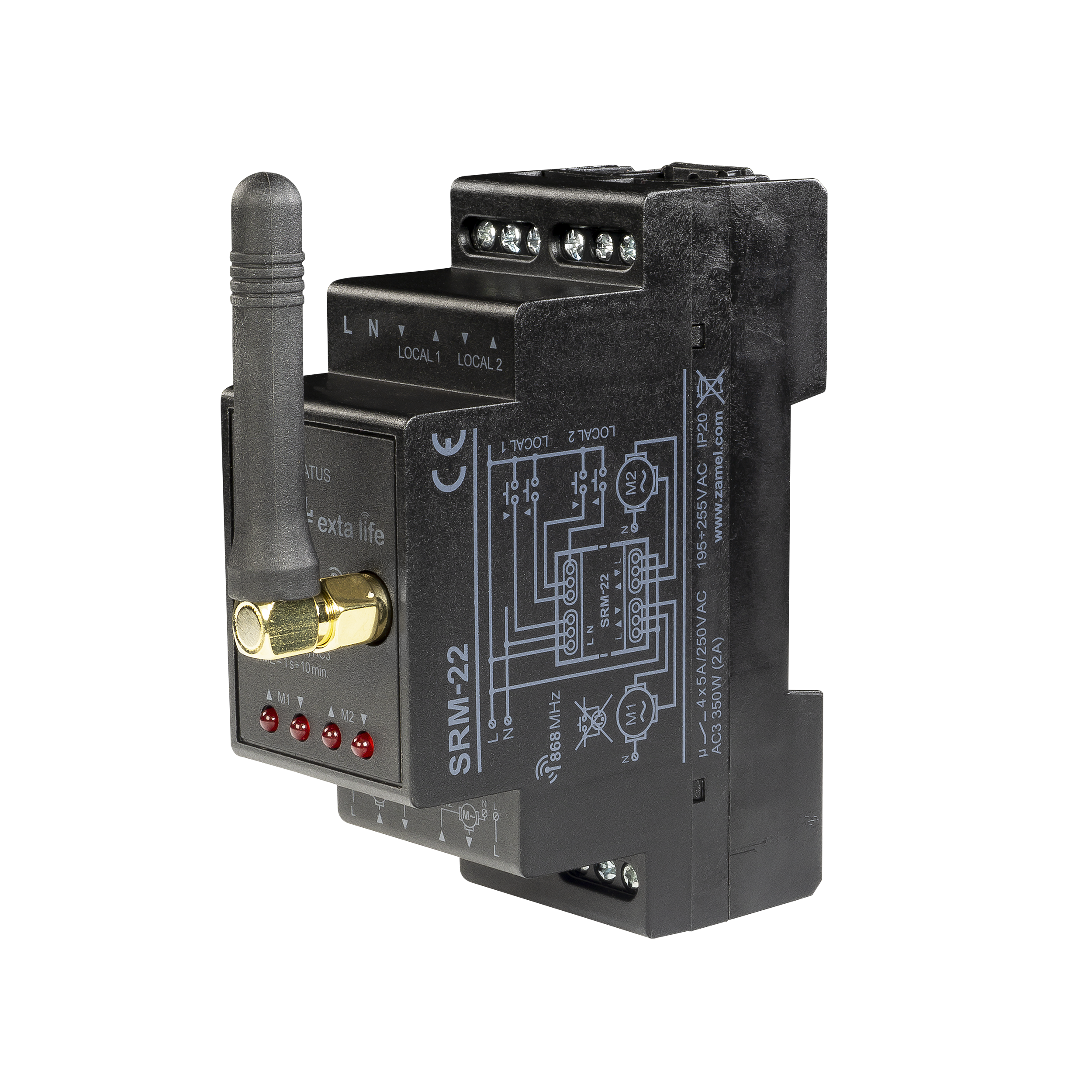

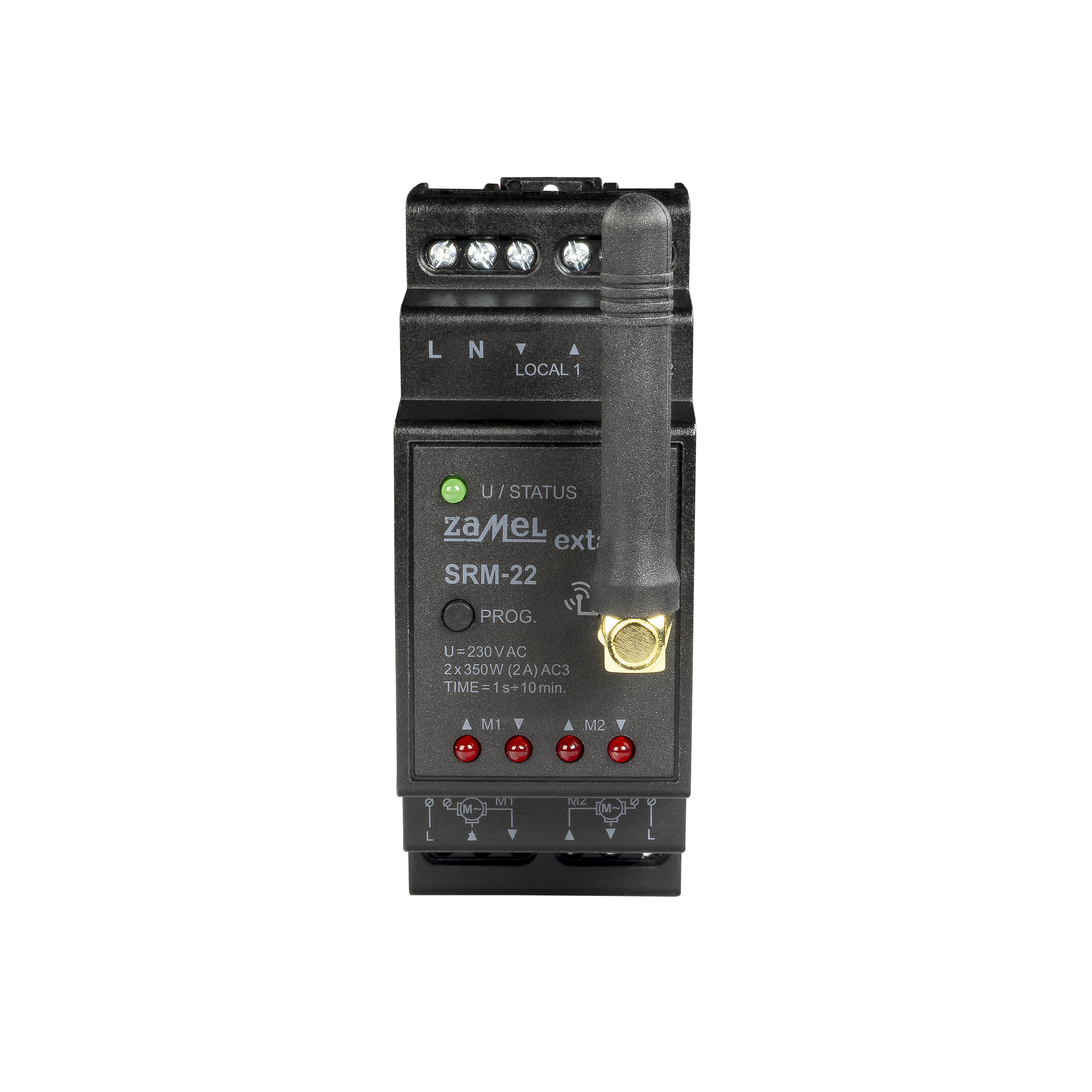

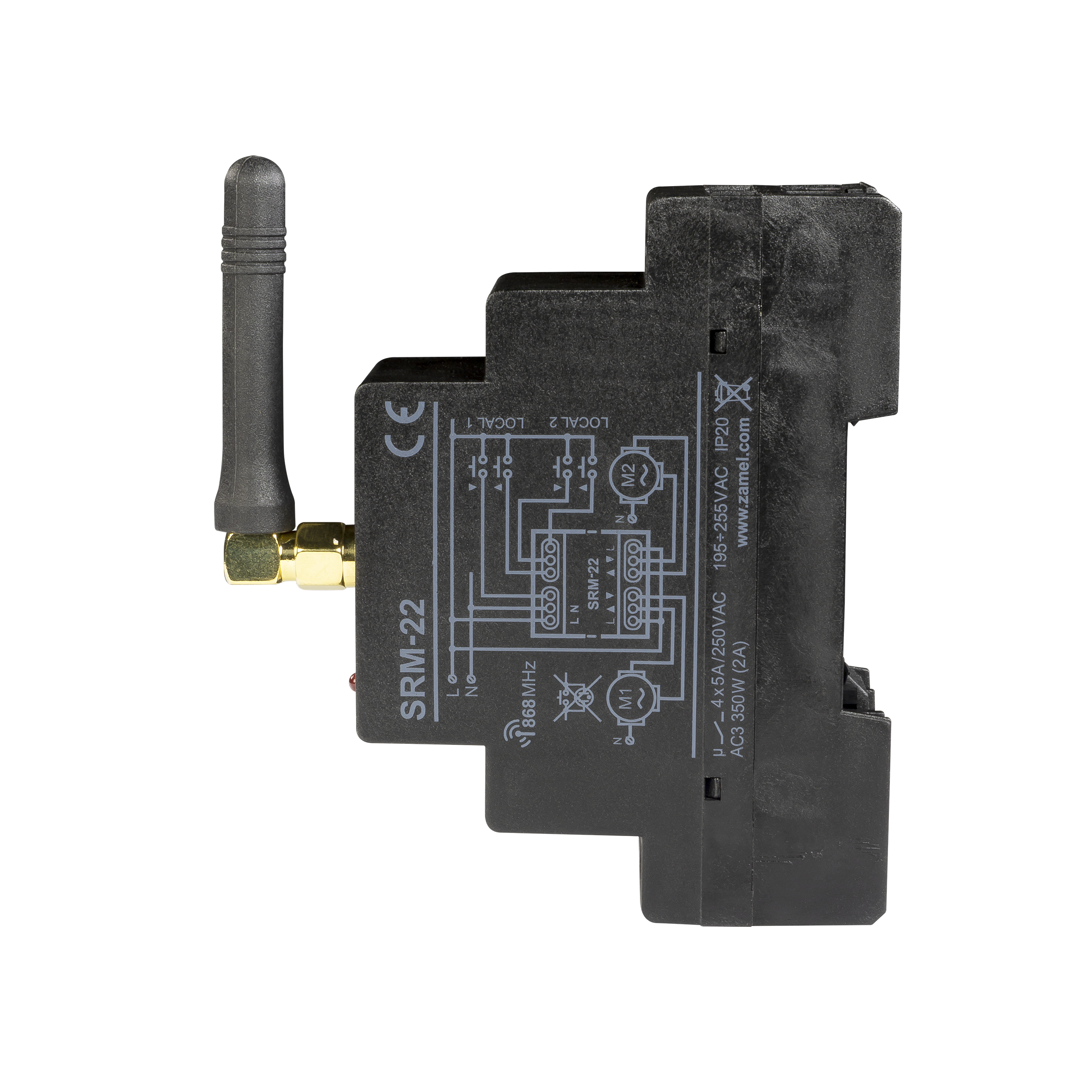

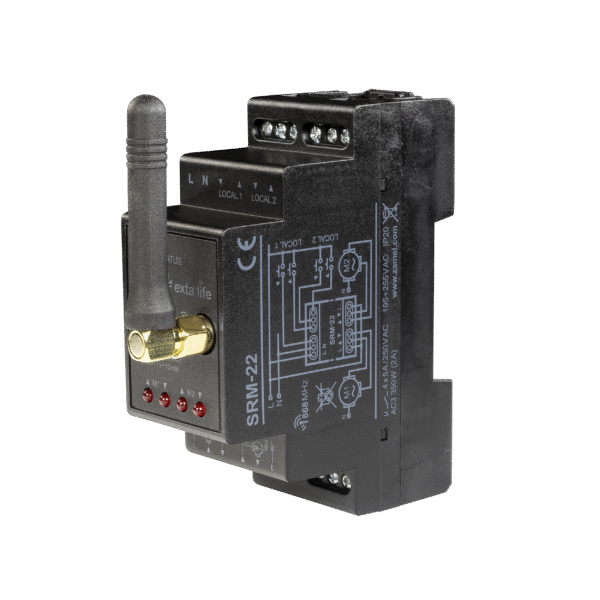

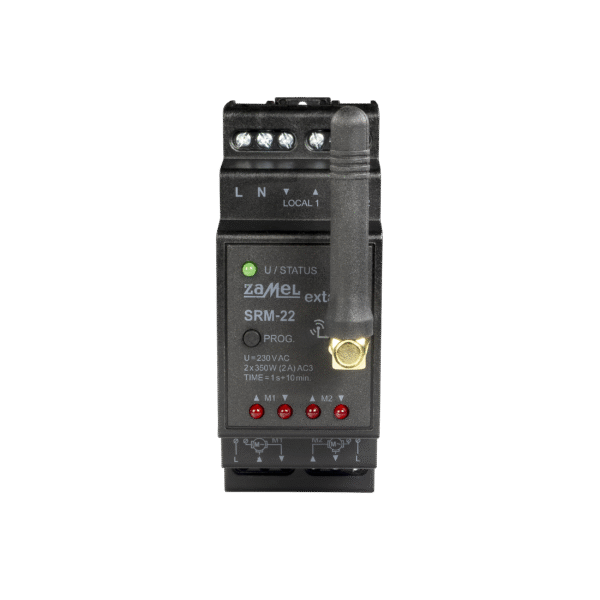

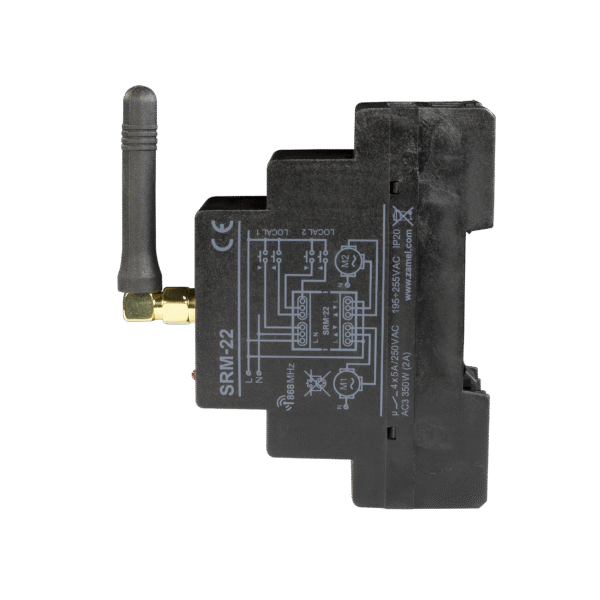

Radio modular roller blind controller – double

SRM-22 is designed to control roller blinds or other devices powered by single-phase 230 V AC motors. It is possible to control two roller blinds independently. Control can be carried out wireless from the level of transmitters or the EXTA LIFE controller and wired from the level of blind buttons.

Product features

– rated supply voltage of 230 V AC,
– control of roller shutters or other devices driven by 230 V AC single-phase motors,
– independent control of two roller shutters/drives,
– compatibility with the Exta Life controller and transmitters,
– bi-directional transmission – information about the current position of the roller blind in the mobile application,
– maximum load 350 W (2 A) class AC3 / for each roller blind,
– possibility of remote software update,
– Installation on DIN rail (2 modules).

Technical Data

Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: 0,65 W (standby)
Transmission: Radio 868,50 MHz
Range: up to 300 m
Output: relays 4 x 5A / 250 V AC (voltage output)
Inputs: 4
Installation: DIN rail
