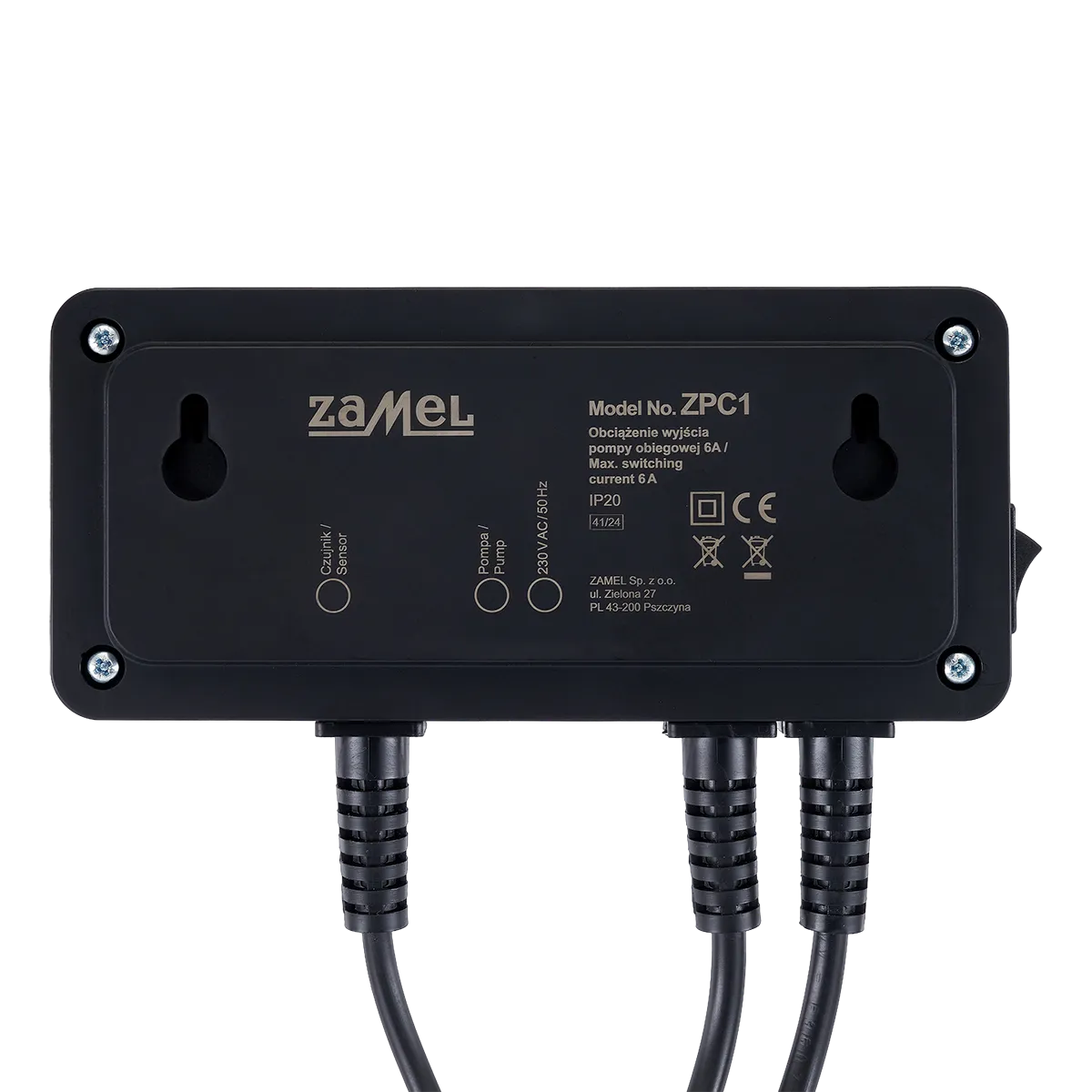

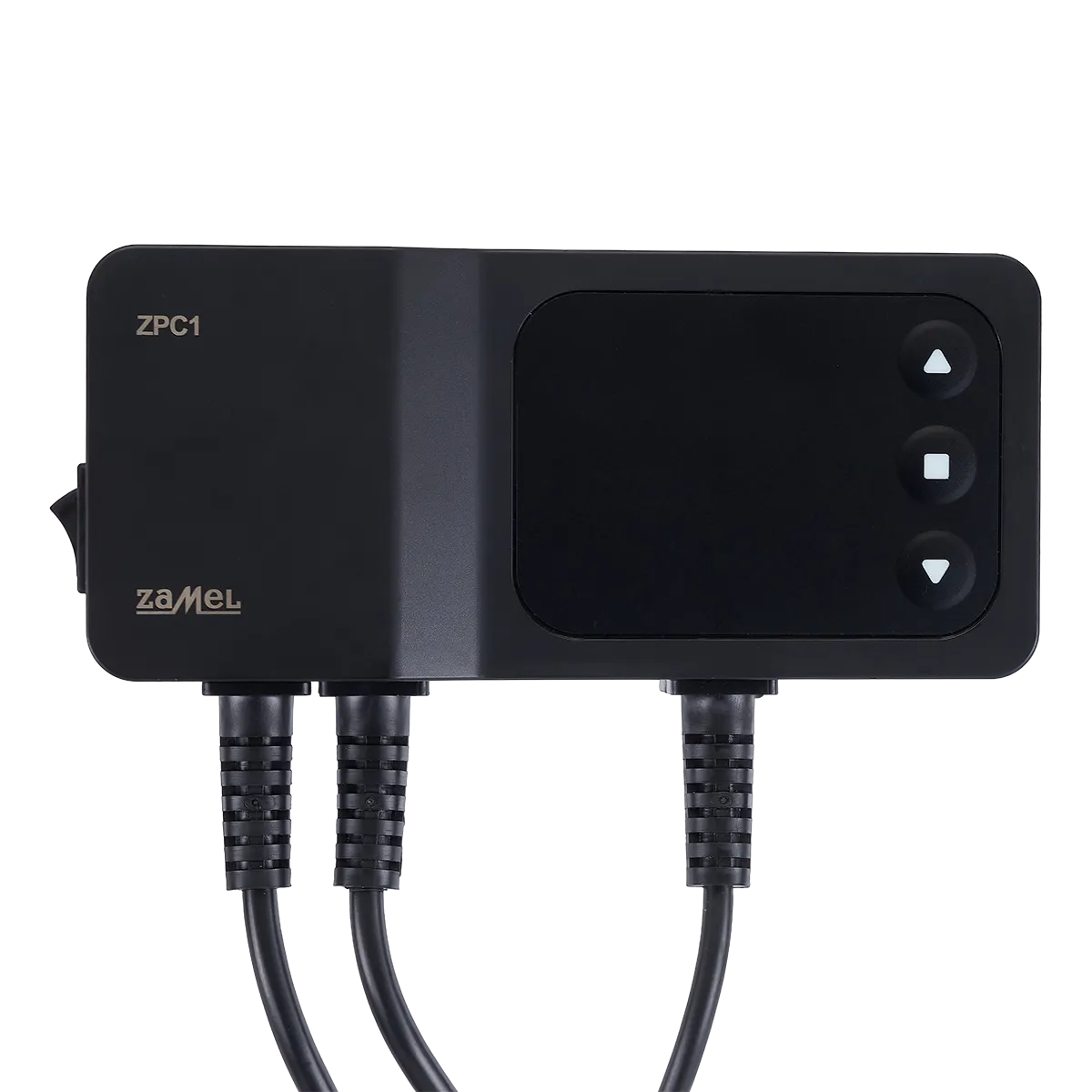

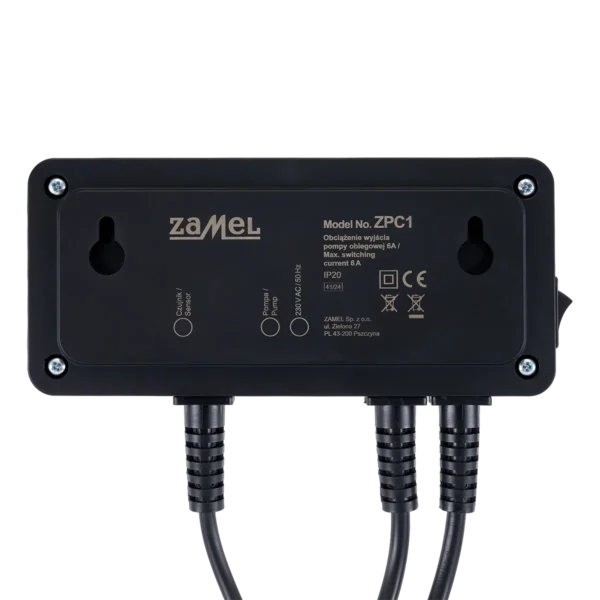

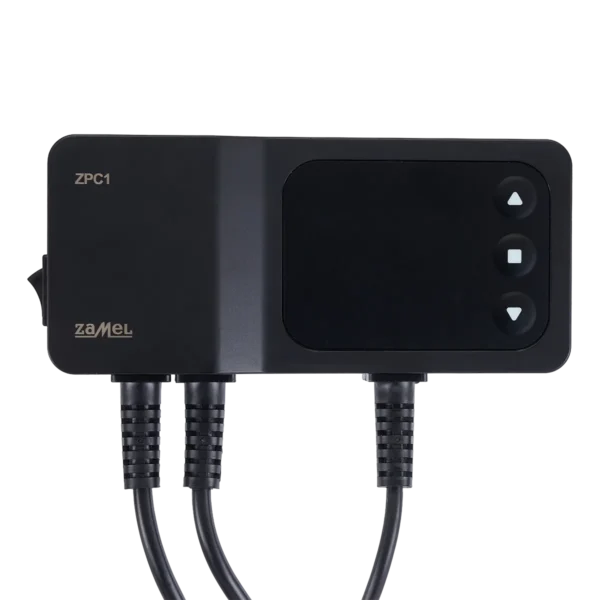

ZPC-1
Pump controller
ZPC1 is designed to control the water pump in the central heating circuit. The controller’s task is to turn on the pump if the temperature exceeds the desired value, and turn it off if the boiler cools down (due to extinguishment). This prevents unnecessary pump operation and extends its lifetime.
– control of the central heating circulation pump,
– temperature measurement in the range from 0 °C to 99 °C,
– constant hysteresis of 2 °C,
– LED display,
– diodes indicating power supply and pump status,
– possibility of manual control of the pump,
– alarm function when the temperature increases > 90 °C,
– anti-freeze protection for temperatures < 5 °C,
- anti-stop function protecting the pump in the summer,
- error indication from the sensor (short circuit/open).
Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: max. 2 W
Output: voltage max. 6 A
Temperature measurement range: from 5 °C to 99 °C
Temperature setting range: from 5 °C to 80 °C
Hysteresis: constant 2 °C

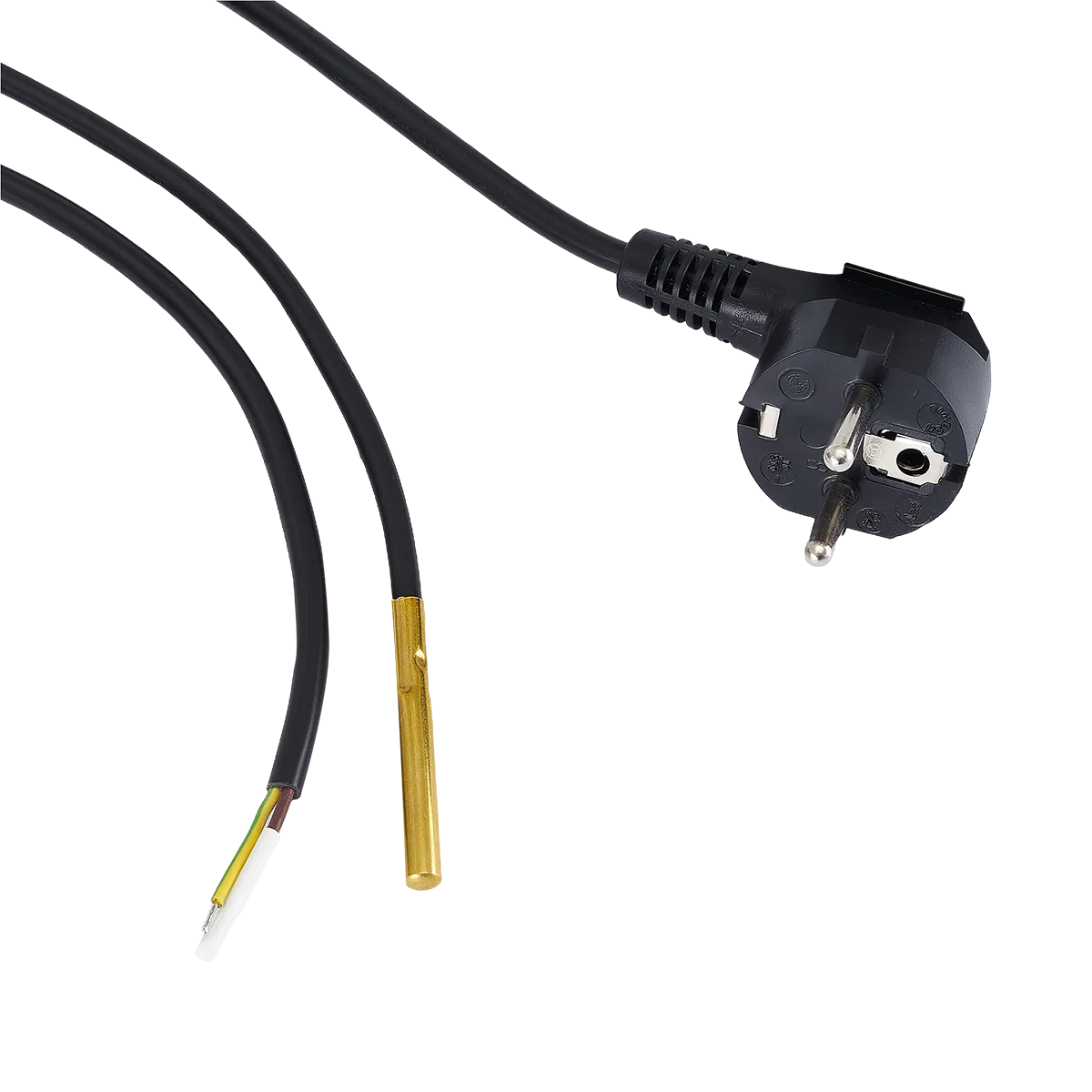

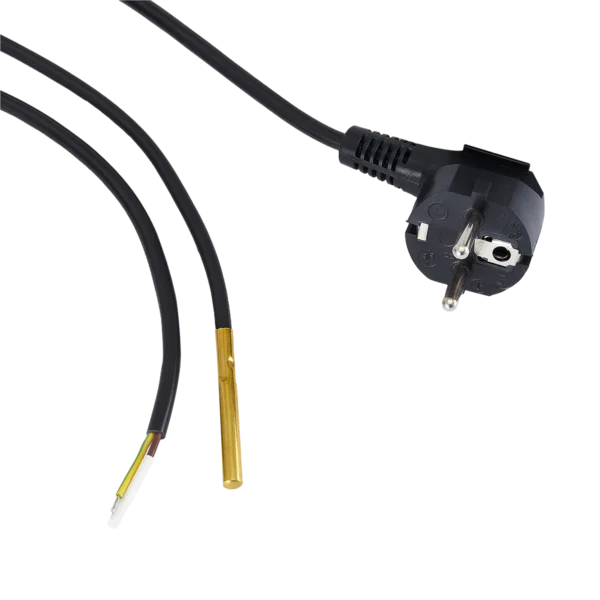

Sensor length: 1,2 m
Installation: surface-mounted
