ZPC1-B
Pump controller
ZPC1B is designed to control a water pump in the central heating or hot water circulation or as a safety thermostat. The controller allows you to adjust the temperature of switching the pump on and off. The pump turns on after exceeding the user-set temperature value „C”, and turns off after exceeding the set shutdown temperature „U”.
– control of the central heating or hot water circulation pump,
– temperature measurement in the range from 0 °C to 99 °C,
– constant hysteresis of 2 °C,
– pump activation temperature set in the range from 5 °C to 80 °C,
– pump shutdown temperature set in the range from 10 °C to 85 °C,

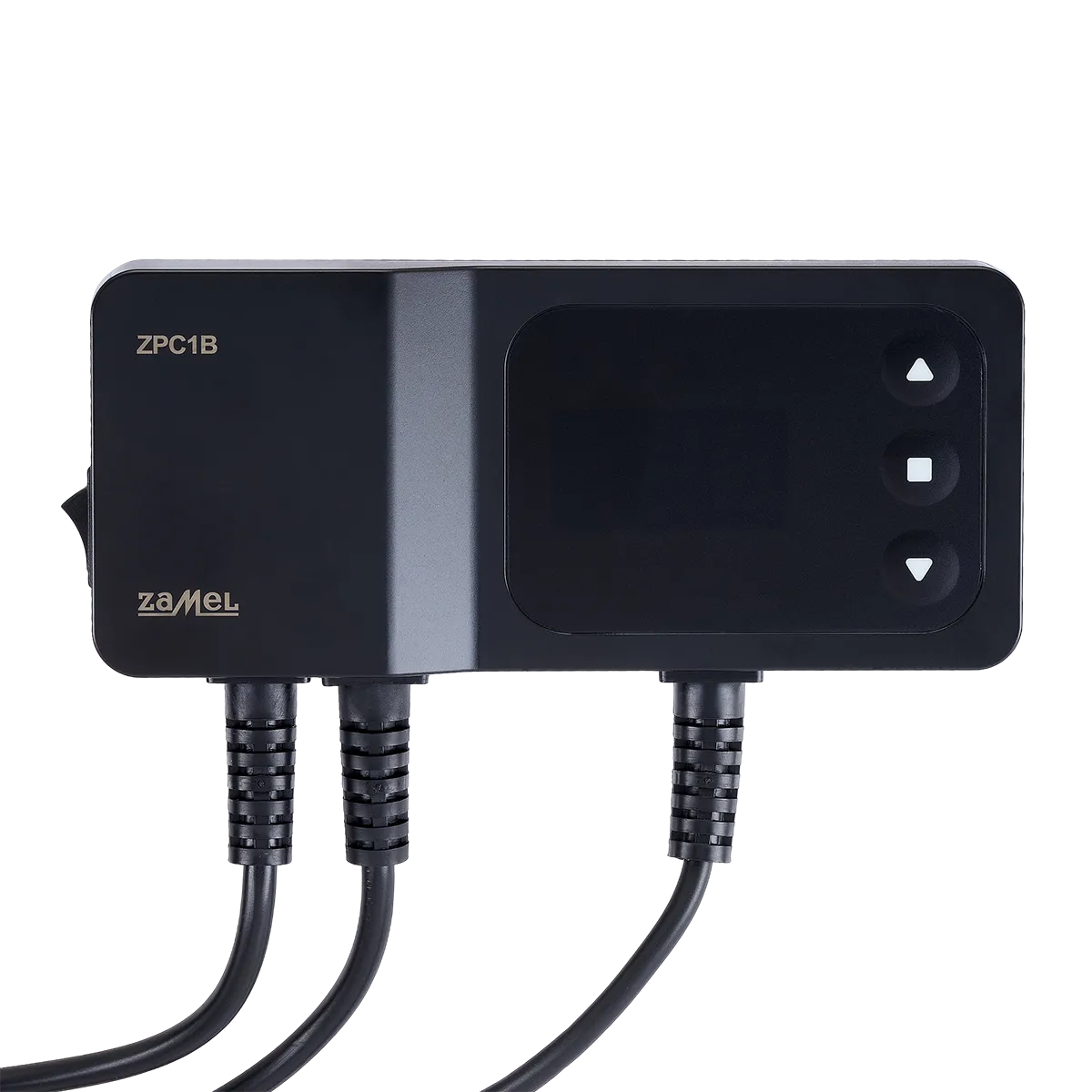

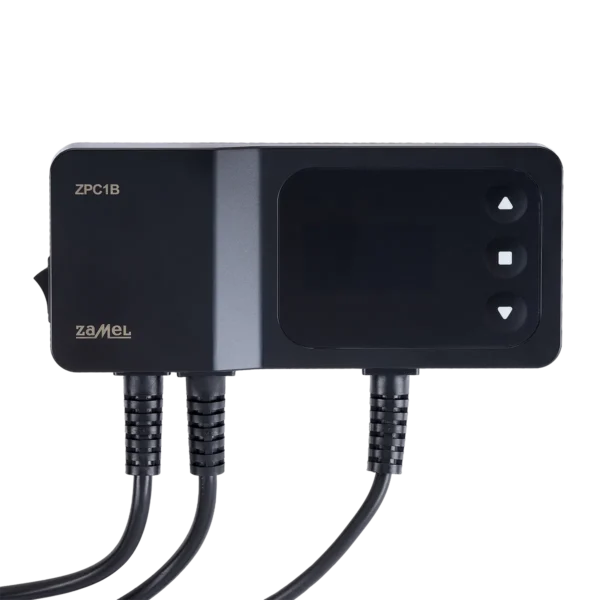

– LED display,
– diodes indicating power supply and pump status,

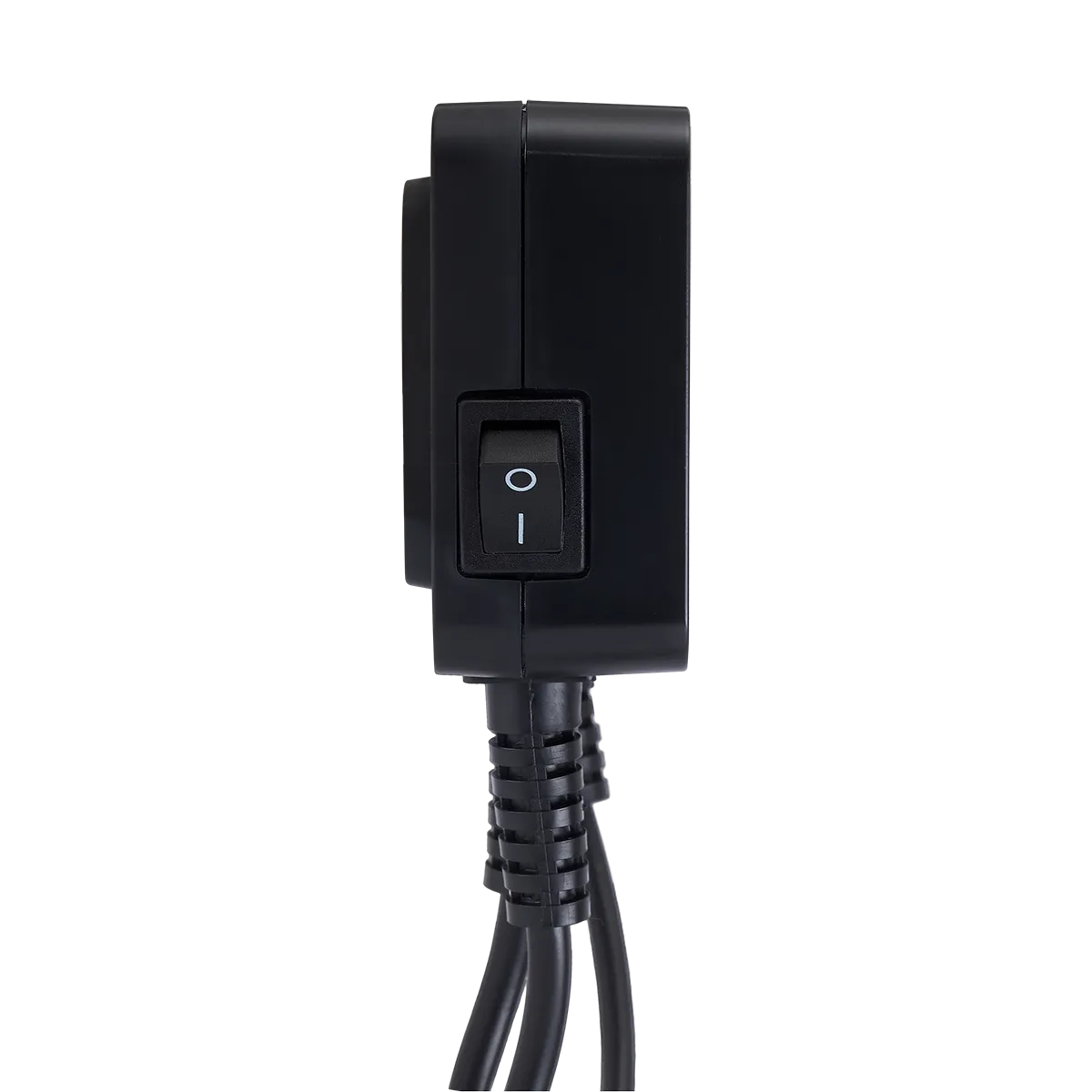

– ability to manually control the pump,
– alarm function when rising temperatures > 90 °C,
– anti-freeze protection for temperatures < 5 °C,
- anti-stop function protecting the pump in the summer,
- error indication from the sensor (short circuit/open).
Power supply: 230 V AC
Frequency: 50 / 60 Hz
Power consumption: max. 2 W
Output: voltage max. 6 A
Temperature measurement range: from 5 °C to 99 °C
Pump activation temperature setting range: from 5 °C to 80 °C
Hysteresis: constant 2 °C

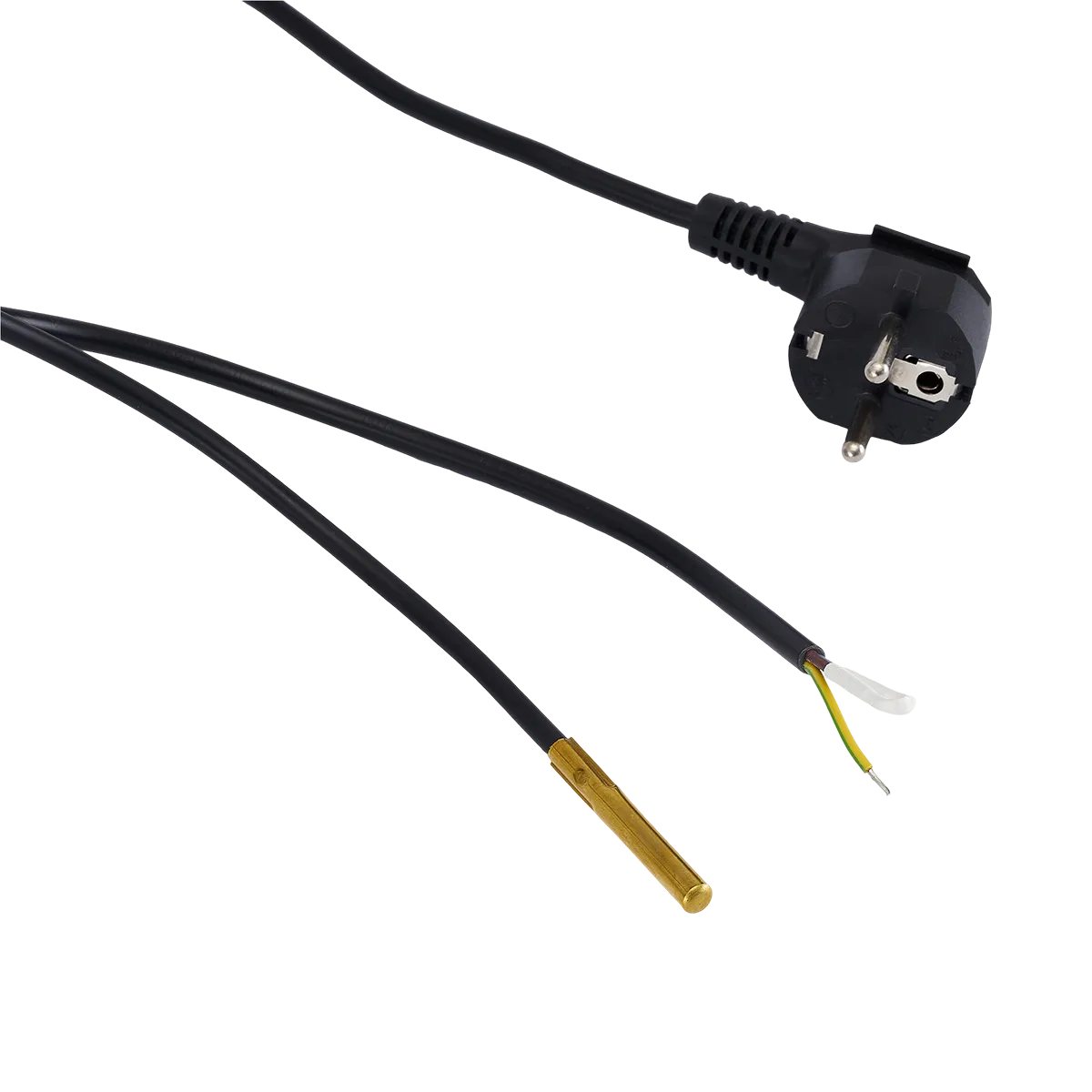

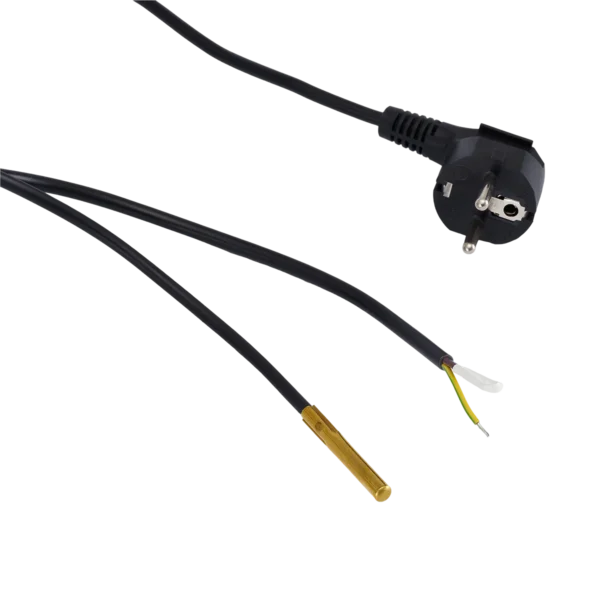

Sensor length: 1,2 m
Installation: surface-mounted
