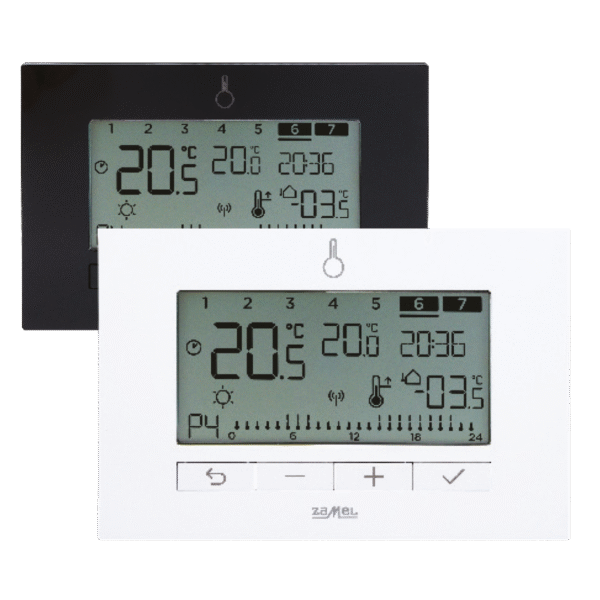

LPR-03
Temperature regulator, weekly, powered by 230 V AC, relay
LPR-03 is a regulator powered by 230 V AC, designed for flush mounting in Ø 60 mm junction boxes. The regulator’s task is to maintain thermal comfort in the room on a weekly basis based on a schedule and four defined temperatures. The controller is connected by wire to underfloor heating board or other heating devices such as gas boilers, pumps.
– control based on a weekly schedule and 4 defined temperatures,
– special modes: anti-freeze, holiday, party,
– ability to define temperature control ranges,
– floor protection function against overheating,
– thermometer function (for external sensor),
– ability to work in manual mode and temporarily raise/lower the temperature,

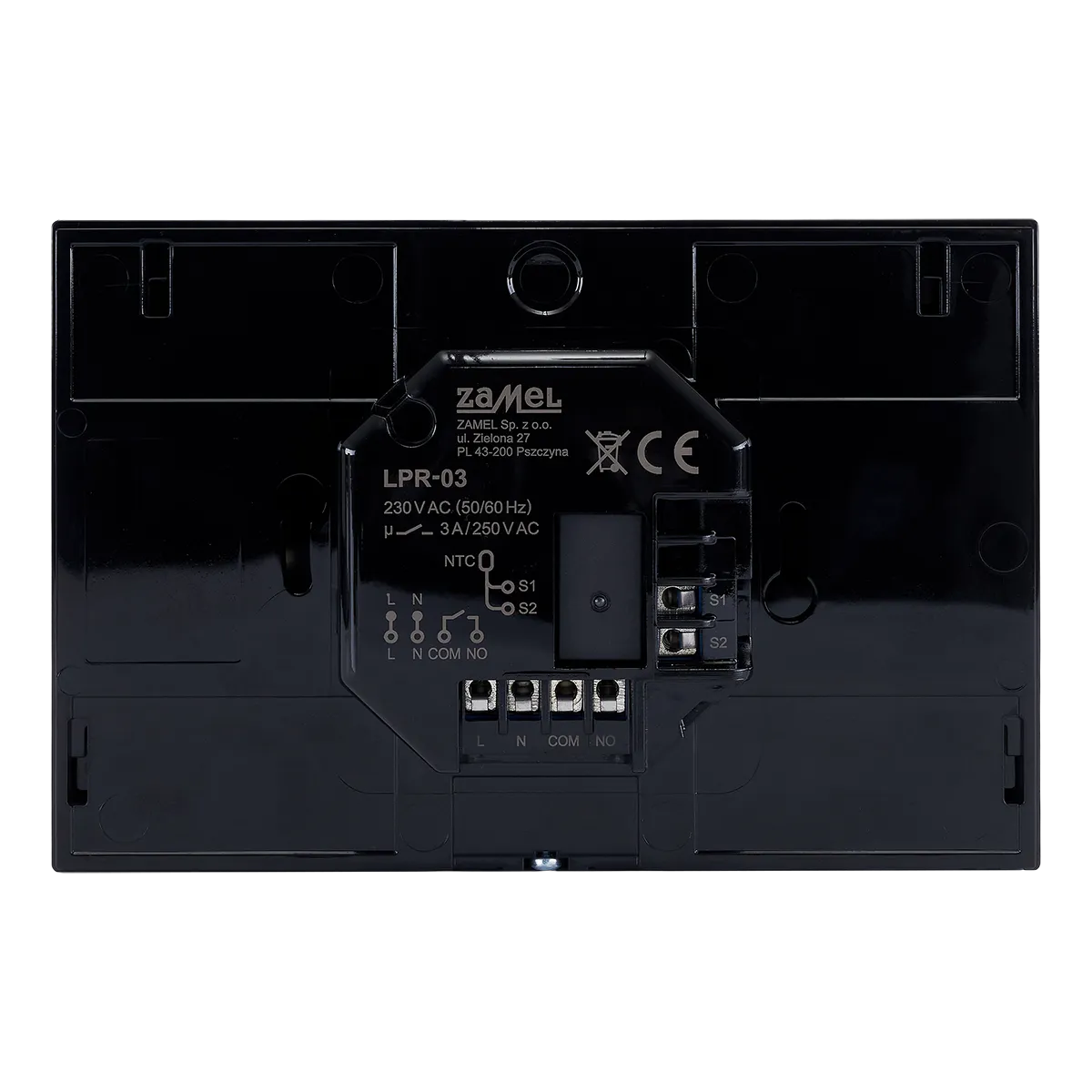

-relay output 3 A / 230 V~ (NO voltage-free contact),
– cooperation with heating boards, boiler, actuators or others heating devices,
– possibility of power supply directly from the board,
– possibility of connecting an external sensor,
– heating or cooling mode,
– key lock (standard or PIN code),

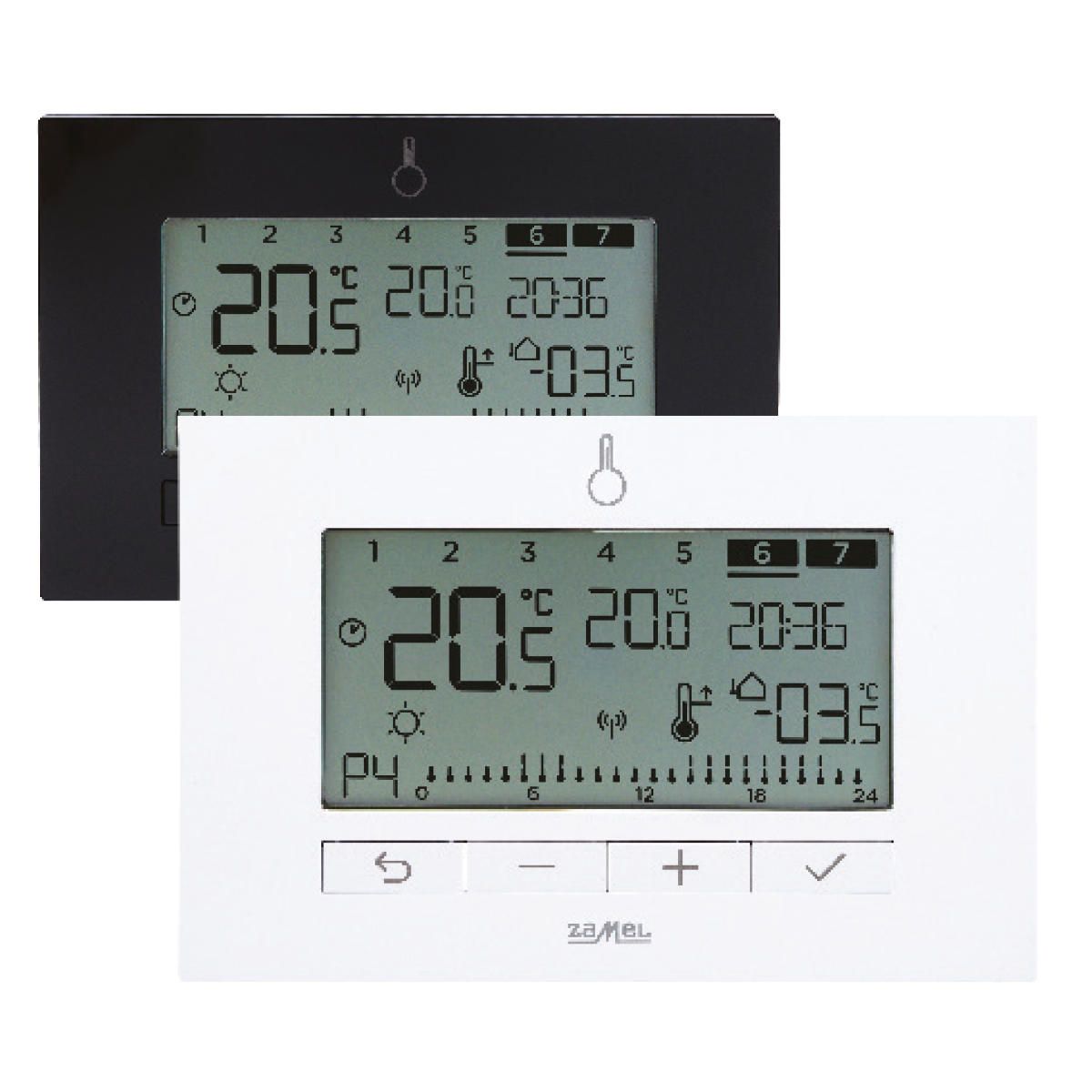

– display with backlight (white).-
Power supply: nominal 230 V~
Control: based on a weekly schedule
Communication: wired
Control algorithm: TPI or Hysteresis 0,2÷4°C
Min. temperature change value: 0,1 °C
Regulation range: + 5.0 °C to + 95.0 °C

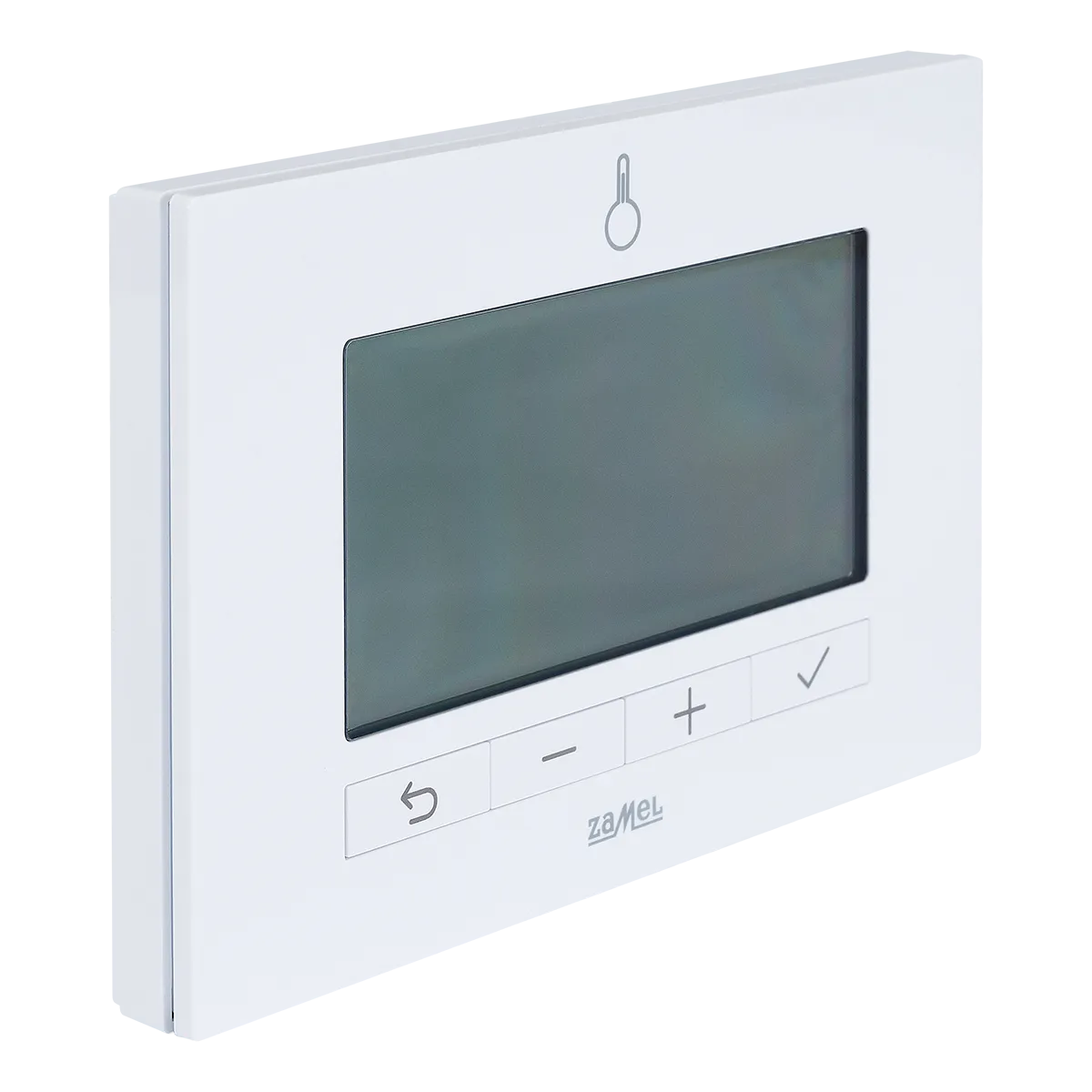

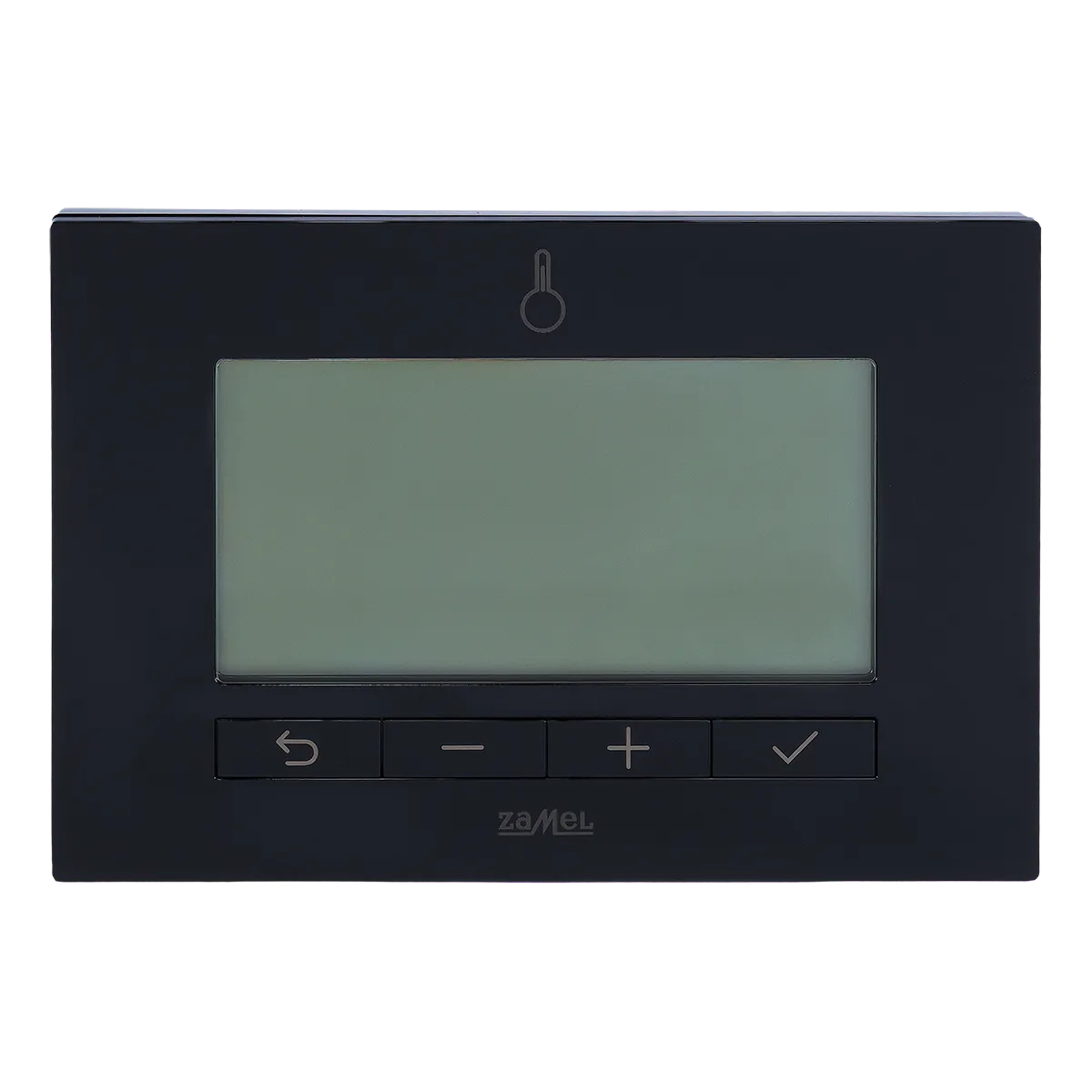

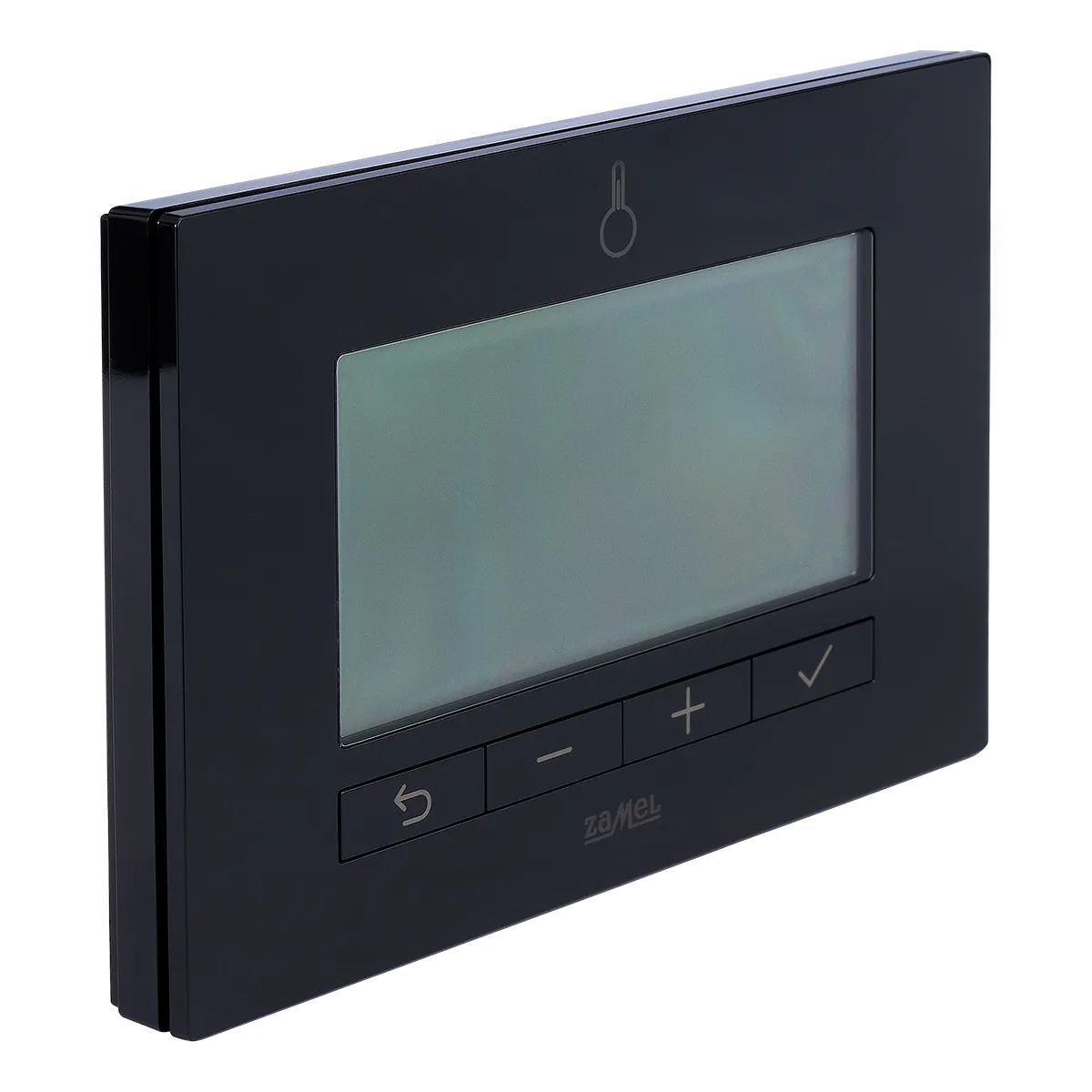

Colour versions: black / white
Installation: Ø 60 mm junction box
