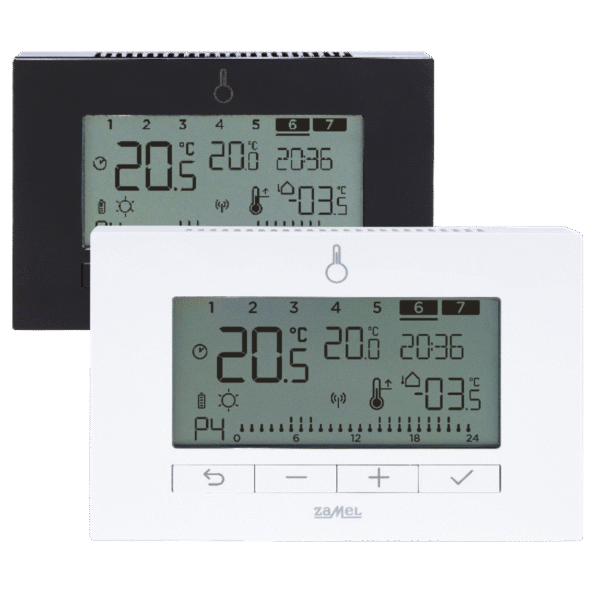

LBR-03
Temperature regulator, weekly, battery-powered, relay
LBR-03 is a battery-powered regulator designed for surface mounting. The controller’s task is to maintain thermal comfort in the room on a weekly basis based on a schedule and four defined temperatures. The regulator is connected by wire to underfloor heating boards or other heating devices such as gas boilers, pumps
– control based on a weekly schedule and 4 defined temperatures,
– special modes: anti-freeze, holiday, party,
– ability to define temperature control ranges,
– floor protection function against overheating,
– thermometer function (for external sensor),
– ability to work in manual mode and temporarily raise/lower the temperature,
– relay output 3 A / 230 V~ (NO voltage-free contact),
– cooperation with heating boards, boiler, pump or others
– heating devices,
– possibility of connecting an external sensor,
– heating or cooling mode,
– key lock (standard or PIN code),
– display with backlight (white),
– surface mounting or installation in a Ø 60 mm junction box
Power supply: 2 x AAA LR03
Control: based on a weekly – daily schedule,
Communication: wired
Control algorithm: TPI or Hysteresis 0,2÷4°C
Min. temperature change value: 0,1 °C
Regulation range: + 5.0 °C to + 95.0 °C

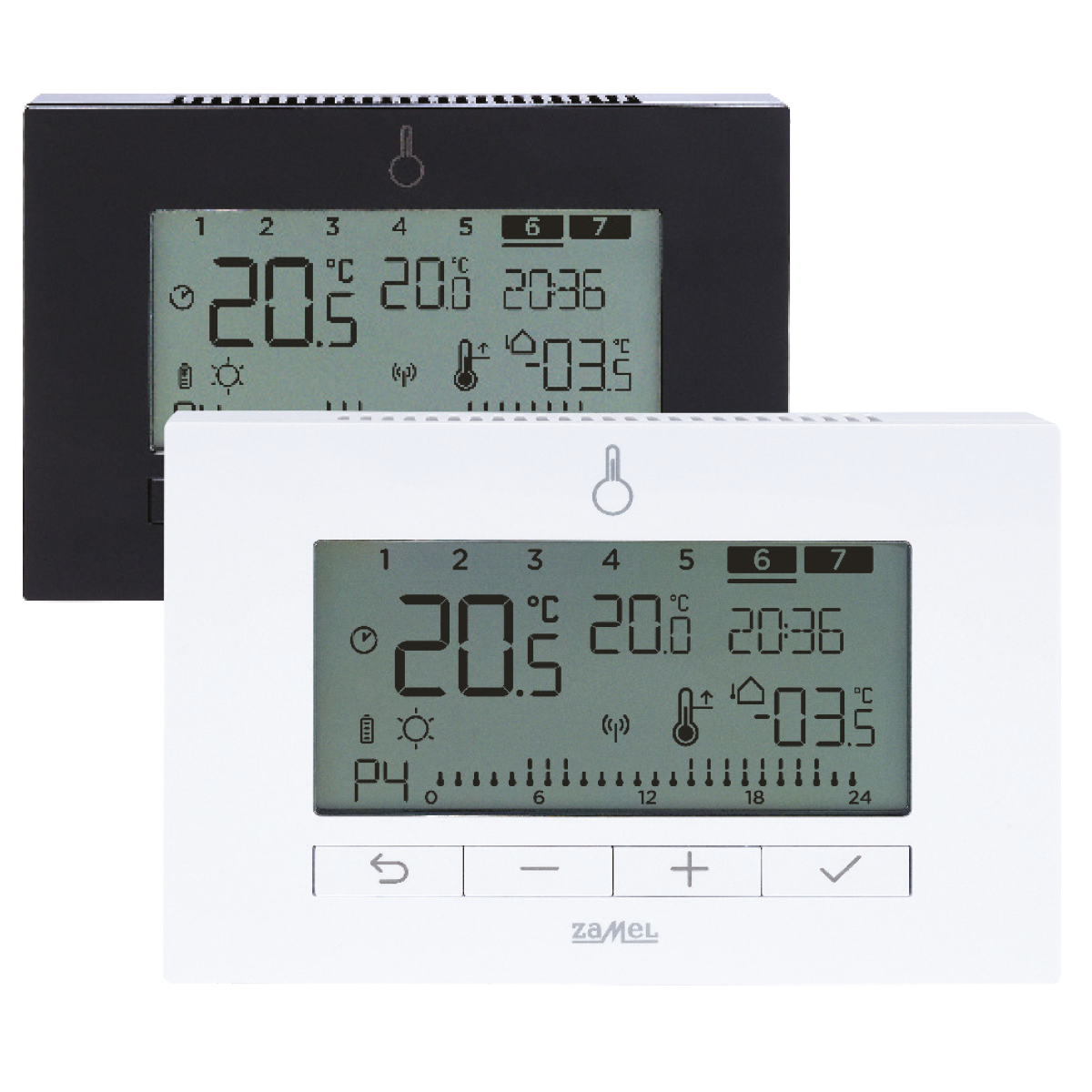

Colour versions: black / white
Installation: surface-mounted
