LPR-01
Temperature regulator, simple, powered by 230 V AC, relay
LPR-01 is a regulator powered by 230 V AC, designed for flush mounting in Ø 60 mm junction boxes. The regulator’s task is to maintain thermal comfort in the room based on one set temperature. The controller is connected by wire to underfloor heating board or other heating devices such as gas boilers, pumps.
– control based on one temperature,
– nominal power supply 230 V~,

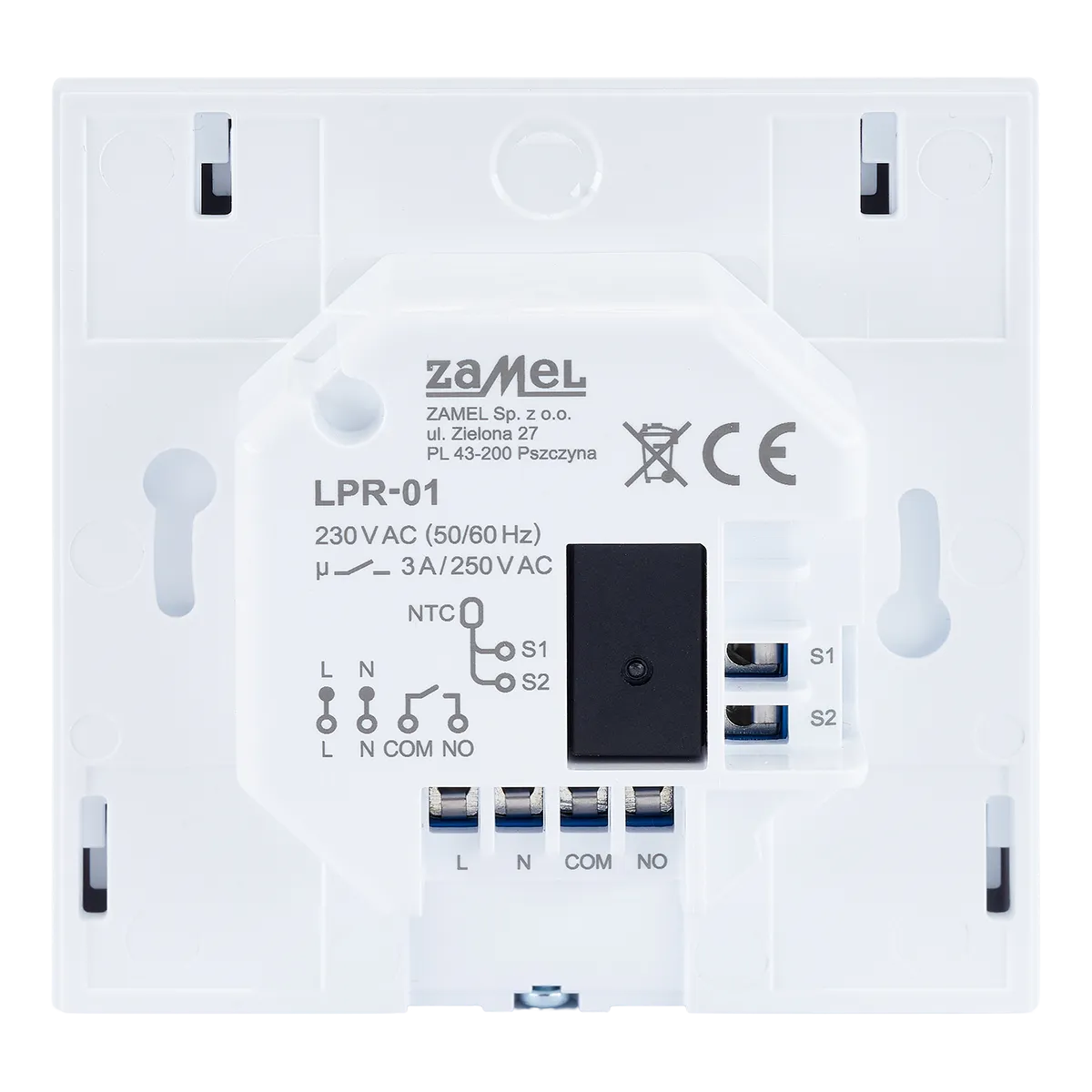

– relay output 3 A / 230 V~ (NO voltage-free contact),
– cooperation with heating boards, boilers, actuators or other heating devices,
– possibility of power supply directly from the board,
– measurement resolution 0.1 °C,
– heating or cooling mode,
– key lock (standard or PIN code),
– display with backlight (white)
Power supply: nominal 230 V~
Controlled: based on one temperature,
Communication: wired
Control algorithm: TPI or Hysteresis 0,2÷4°C
Min. temperature change value: 0,1 °C
Regulation range: + 5.0 °C to + 35.0 °C

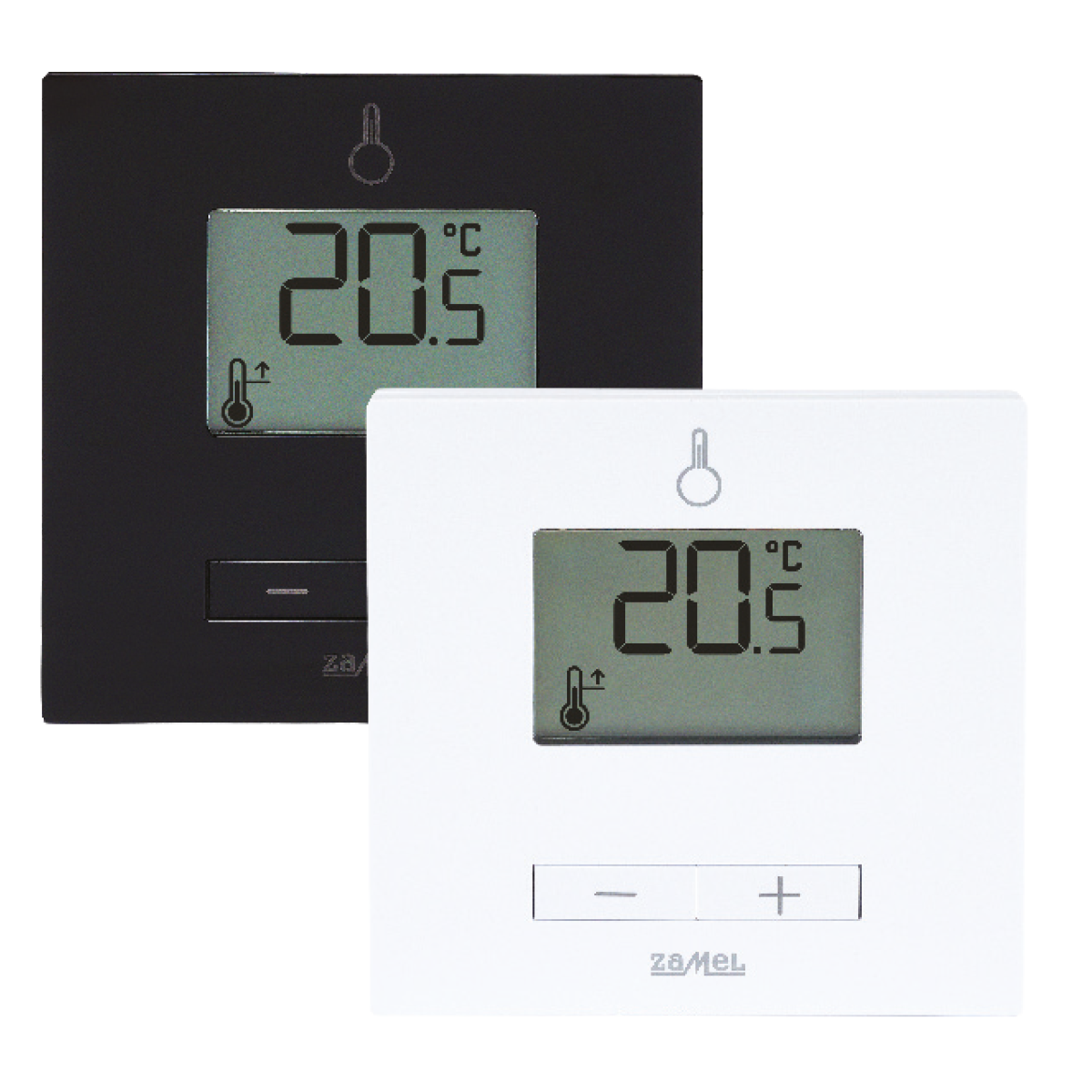

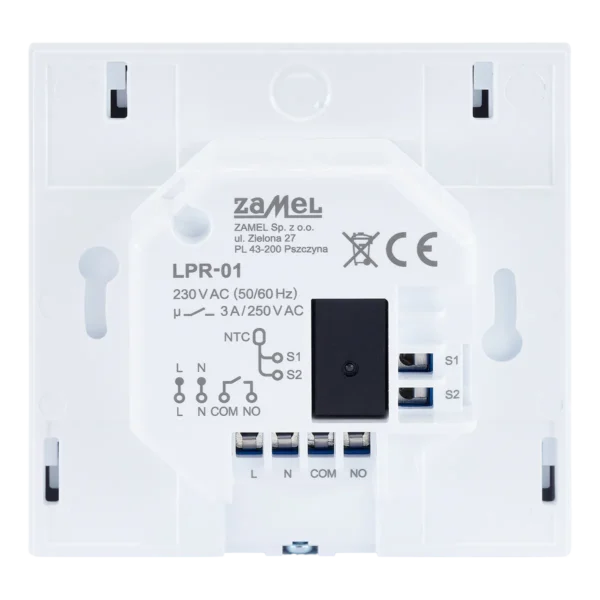

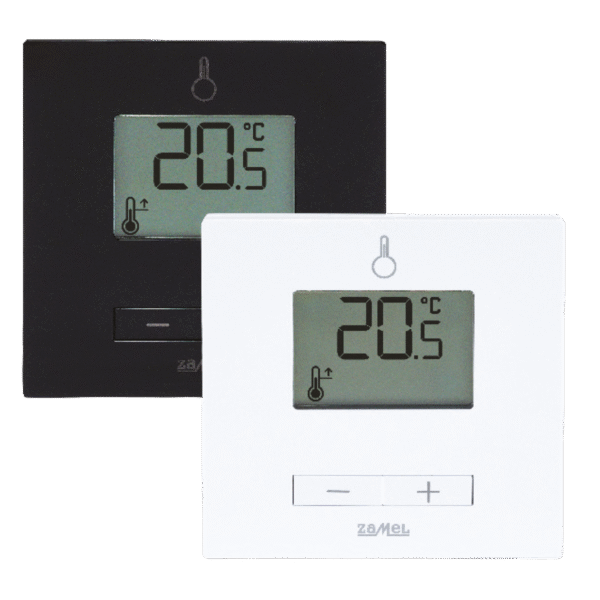

Colour versions: black / white
Installation: Ø 60 mm junction box
