LBR-01
Temperature regulator, simple, battery-powered, relay
LBR-01 is a battery-powered controller designed for surface mounting. The controller’s task is to maintain thermal comfort in the room based on one set temperature. The controller is connected via cable to underfloor heating boards or other heating devices such as gas boilers and pumps.
– control based on one temperature,
– relay output 3 A / 230 V~ (NO voltage-free contact),
– cooperation with heating boards, boiler, pump or other heating devices,
– ability to connect an external sensor,
– measurement resolution 0.1 °C,
– heating or cooling mode,
– key lock (standard or PIN code),
– display with backlight (white),
– surface mounting or installation a Ø 60 mm junction box.
Power supply: 2 x AAA LR03
Control: based on one temperature
Communication: wired
Control algorithm: TPI or Hysteresis 0,2÷4°C
Min. temperature change value: 0,1 °C
Regulation range: + 5.0 °C to + 35.0 °C

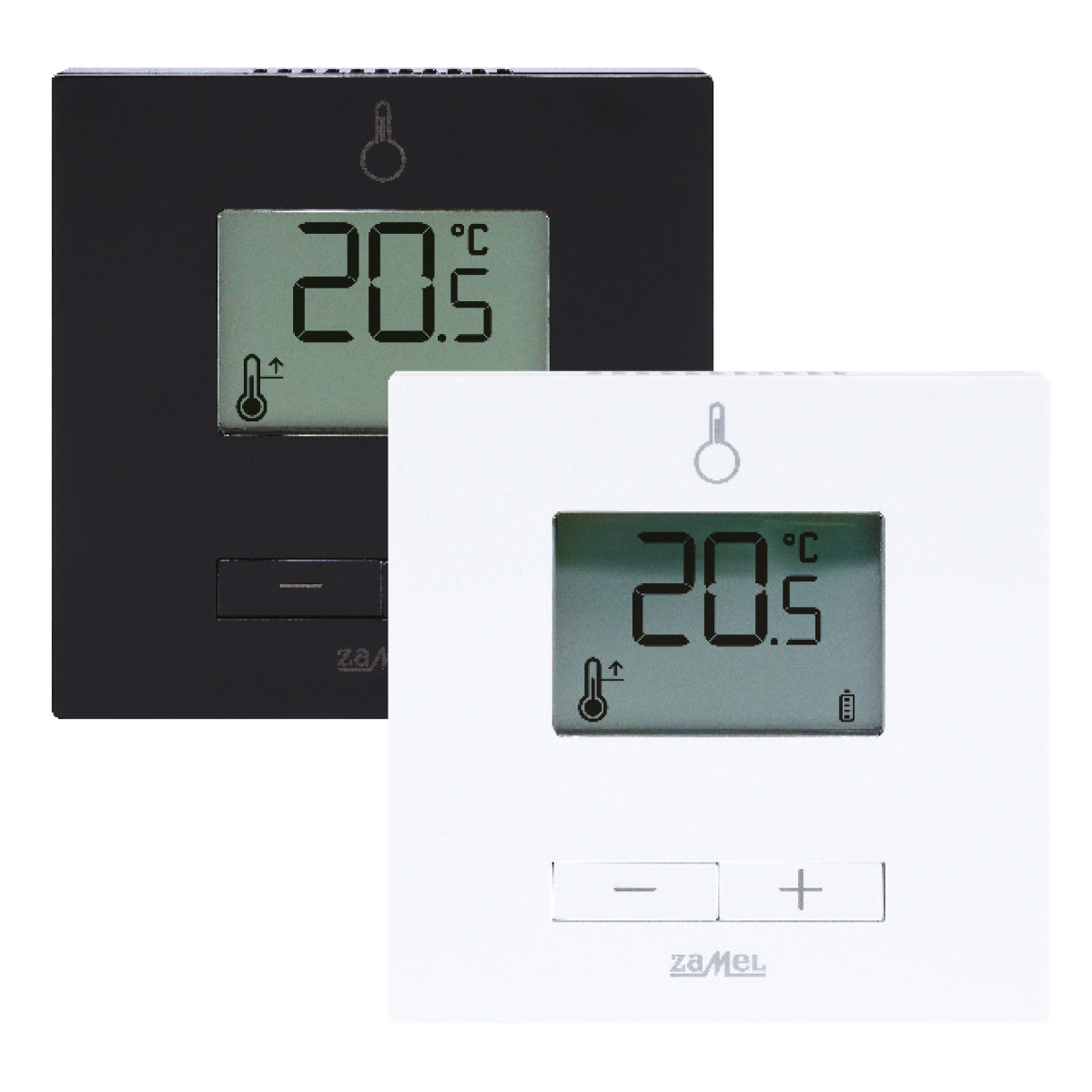

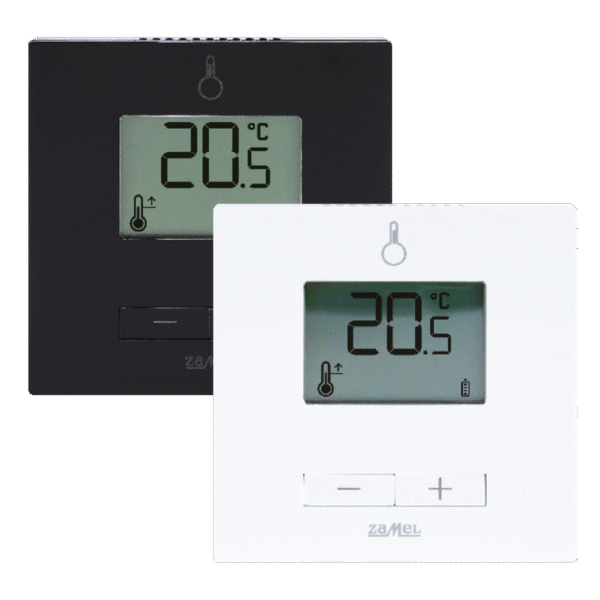

Colour versions: black / white
Installation: surface-mounted
