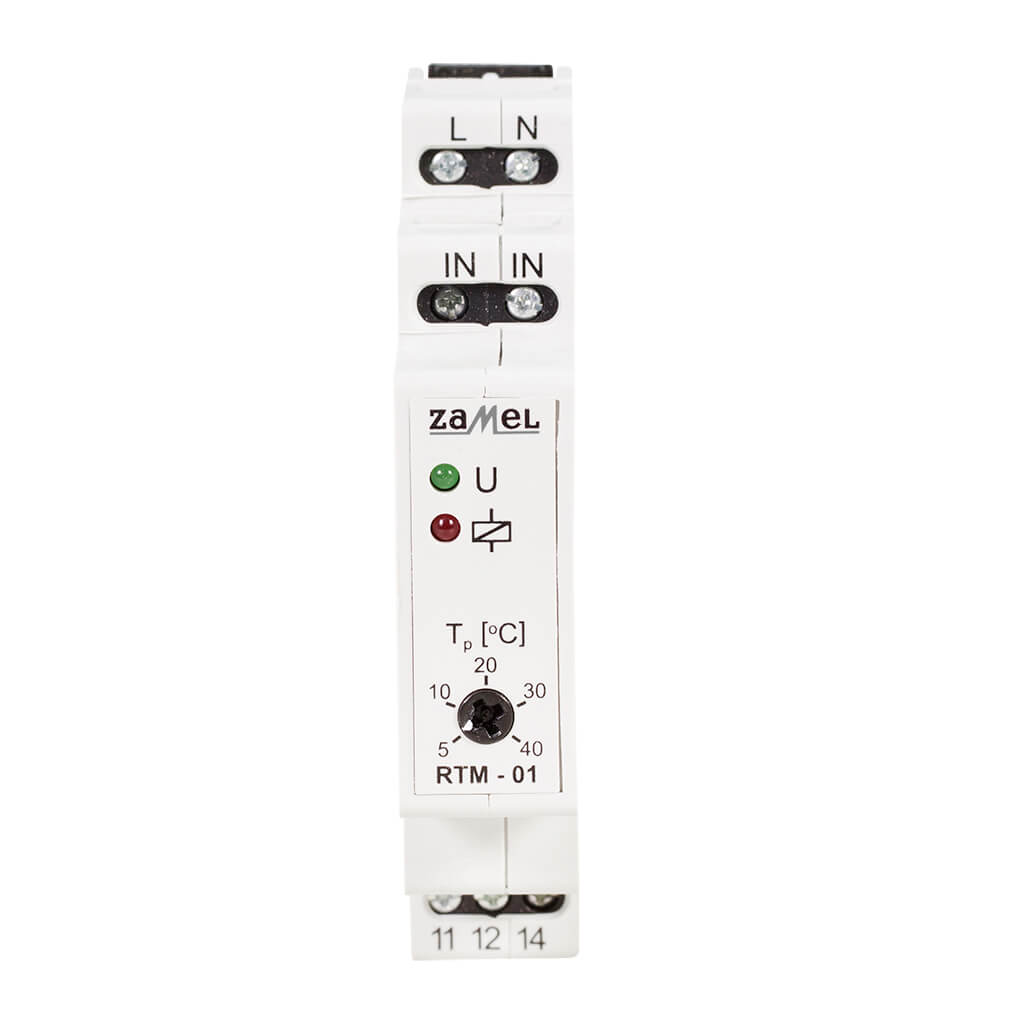

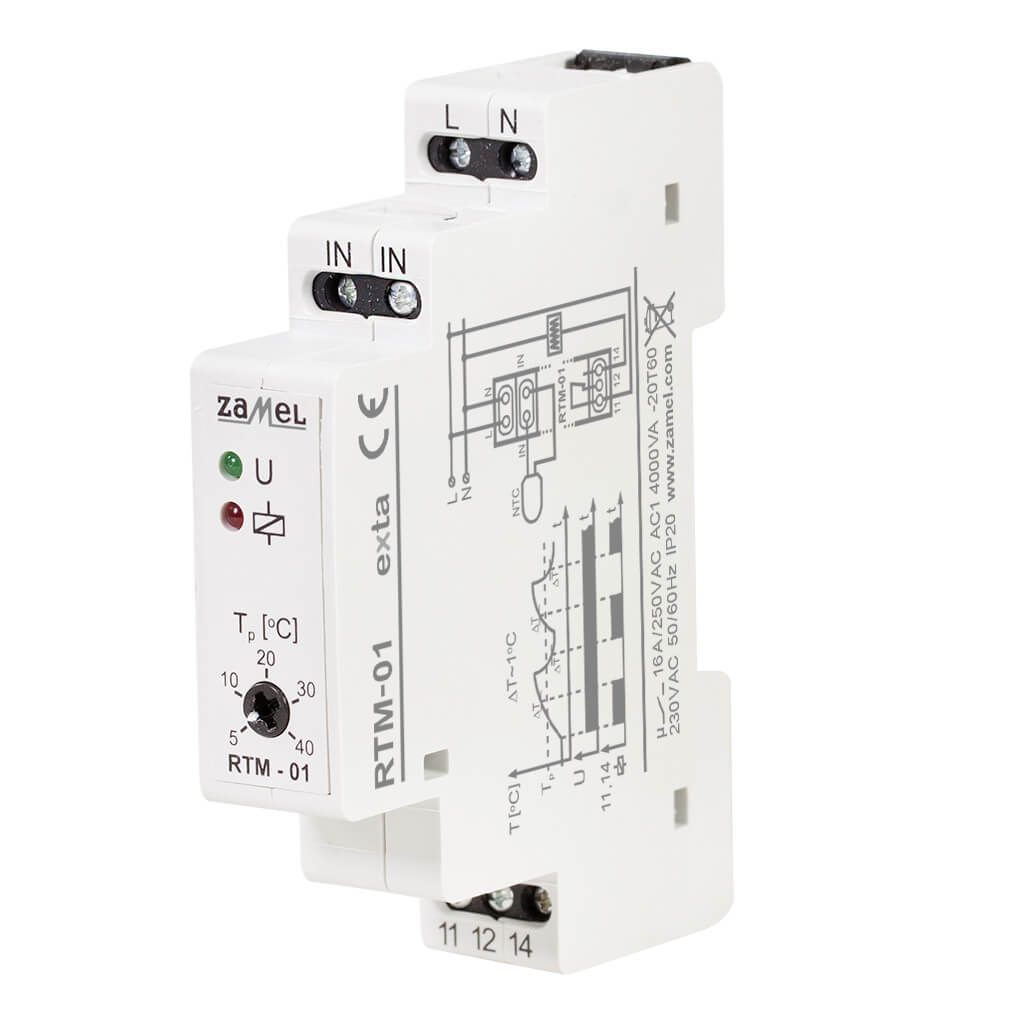

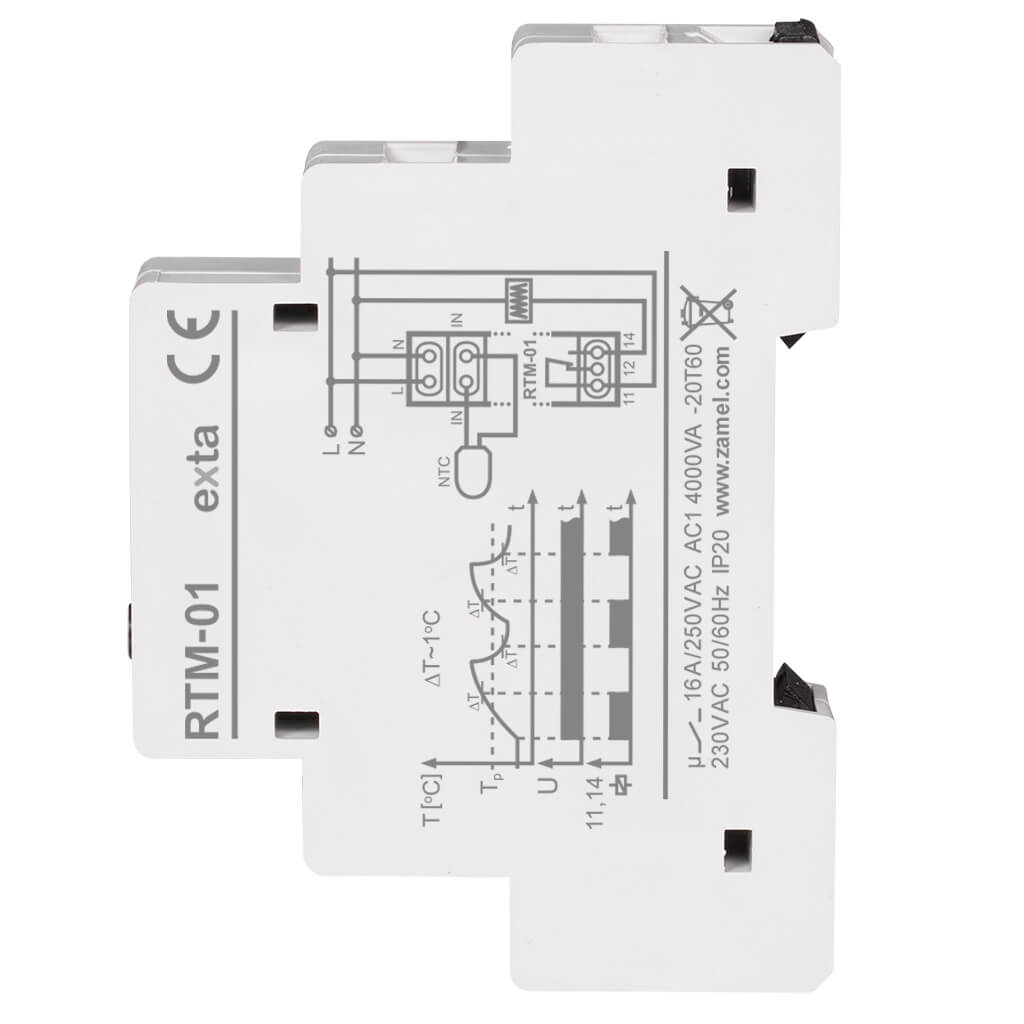

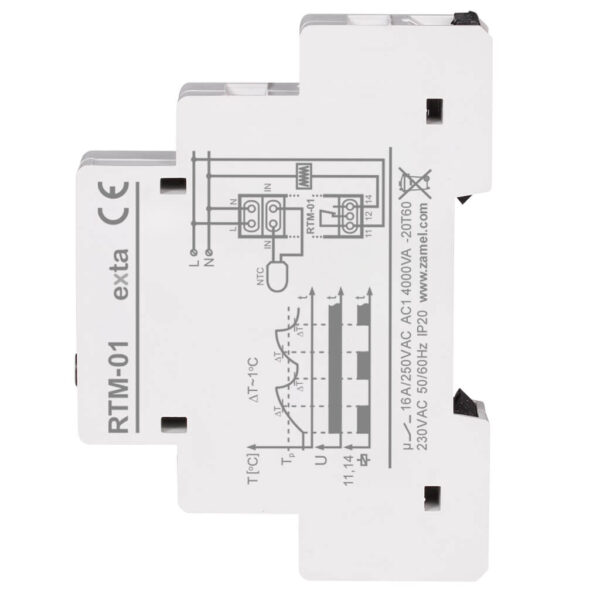

RTM-01
Temperature regulator + 5 ÷ + 40 °C without sensor 230 V
The RTM-01 temperature regulator is used to control receivers (e.g. radiators, underfloor heating) depending on the temperature surrounding the external NTC sensor
– temperature regulation in the range of + 5 °C ÷ + 40 °C,
– relay status indicator, mounting on DIN rail,
– external NTC sensor,
– temperature-dependent receiver control,
– relay output with a maximum load capacity of 16 A,
– sensor connection indicator, 1-module housing.
Power supply terminals: L, N
Power supply: 230 V~
Frequency: 50 / 60 Hz
NTC sensor terminals: IN, IN
Supported sensor: NTC 10 k
Temperature setting range: + 5 ÷ + 40 °C
Working position: any
Installation: DIN rail
