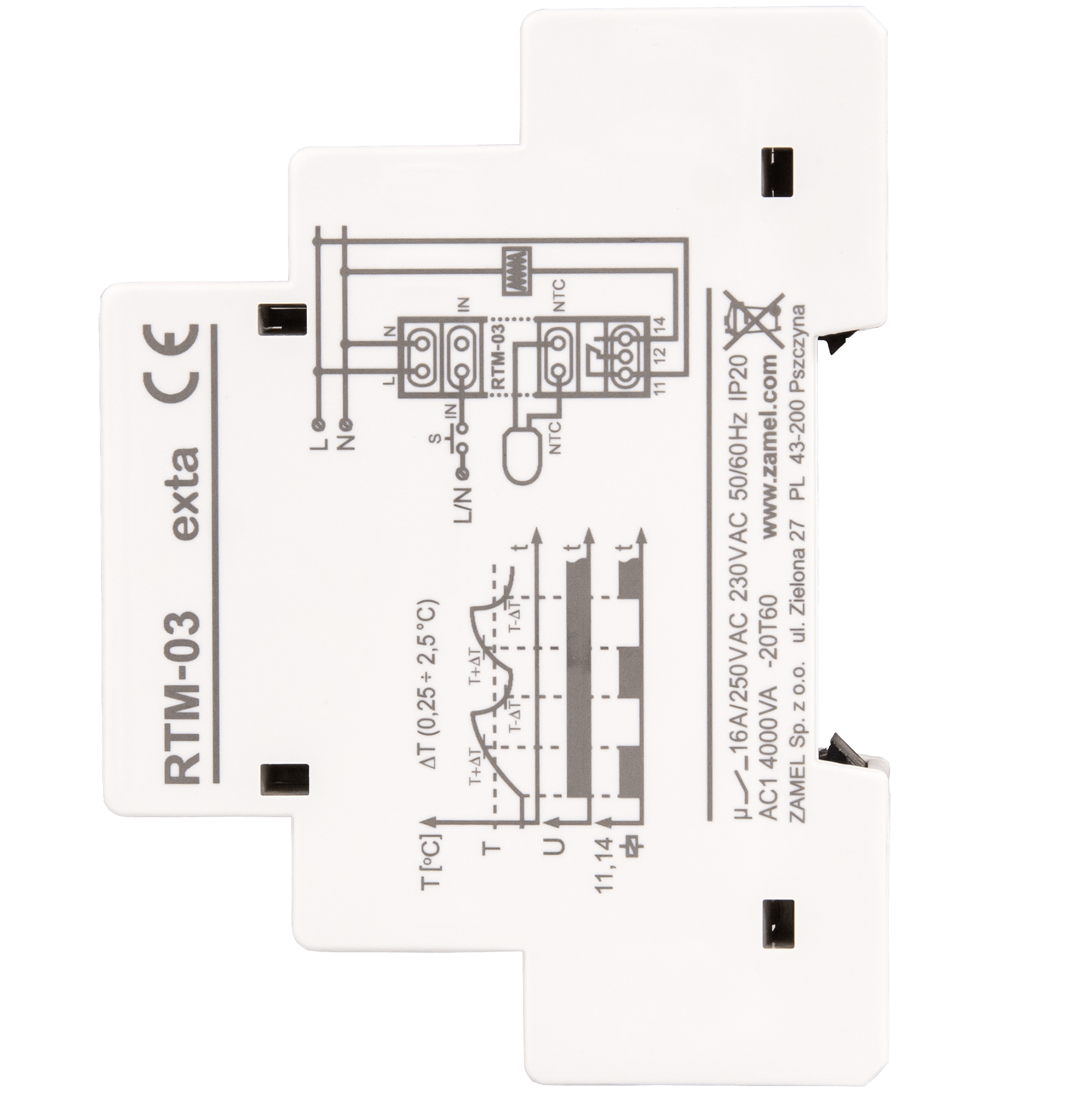

RTM-03
Temperature regulator -10 ÷ +90 °C, with hysterese setting 230 V

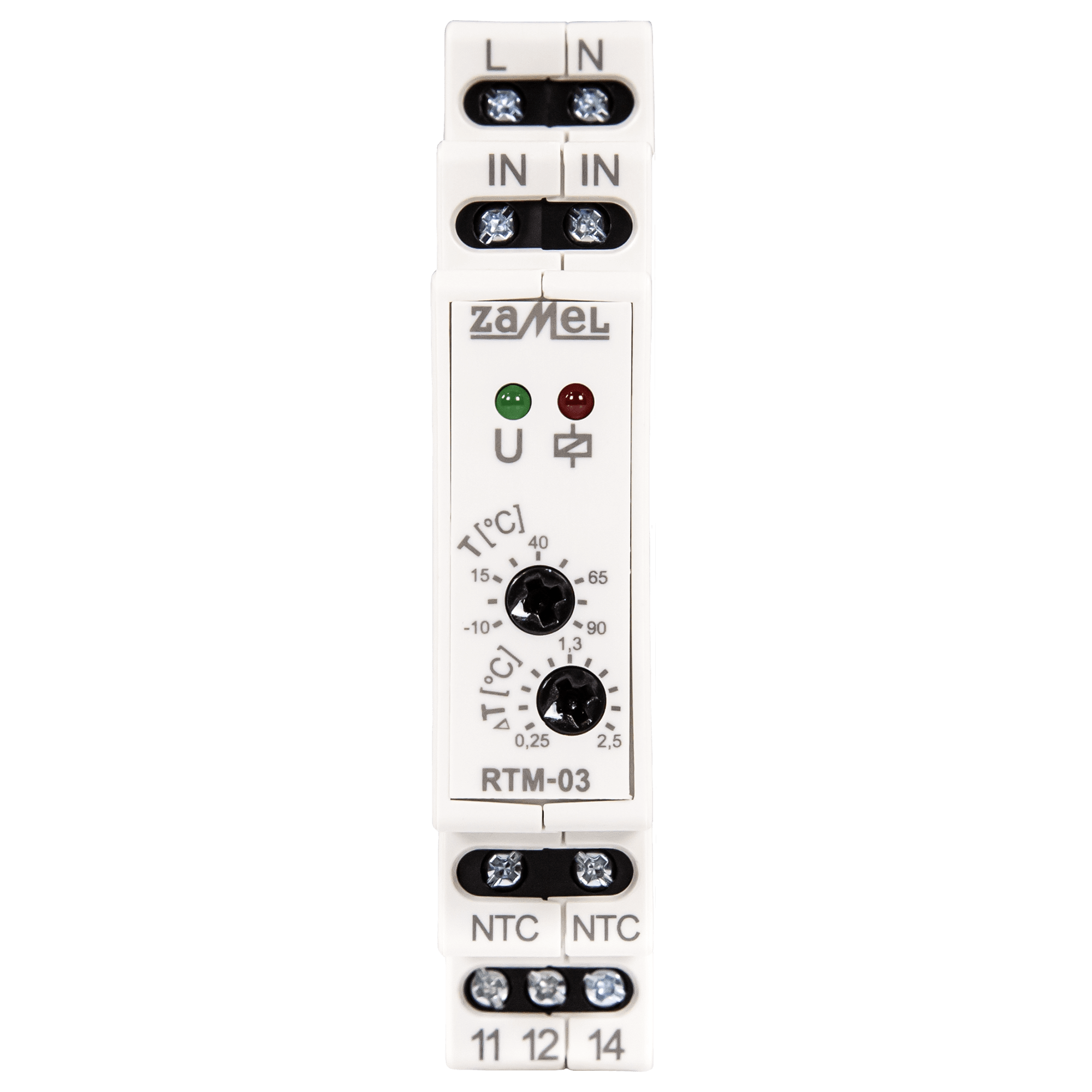

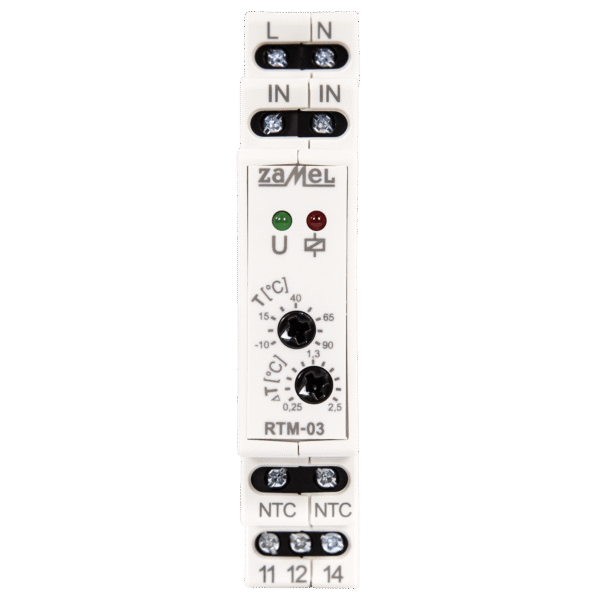

The RTM-03 temperature regulator is used to control receivers (e.g. radiators, underfloor heating) depending on the temperature surrounding the external NTC sensor. The device can adjust the set temperature using a potentiometer located on the front panel in the range – 10 ºC ÷ + 90 ºC.
– temperature regulation in the range of – 10 ºC ÷ + 90 ºC,
– sensor connection indicator,
– input for night temperature reduction by 5 ºC,
– relay output with a maximum load of 16 A.
– step hysteresis adjustment in the range of 0.25 ºC to 2.5 ºC,
– relay status indicator,
– 1-module housing,
– external NTC sensor,
– control receivers depending on temperature,
– installation on DIN rail,
Power supply terminals: L, N
Power supply: 230 V~
Frequency: 50 / 60 Hz
NTC sensor terminals: NTC
Supported sensor: NTC 10 k
Temperature setting range: – 10 ÷ + 90 °C
Working position: any
Installation: DIN rail
