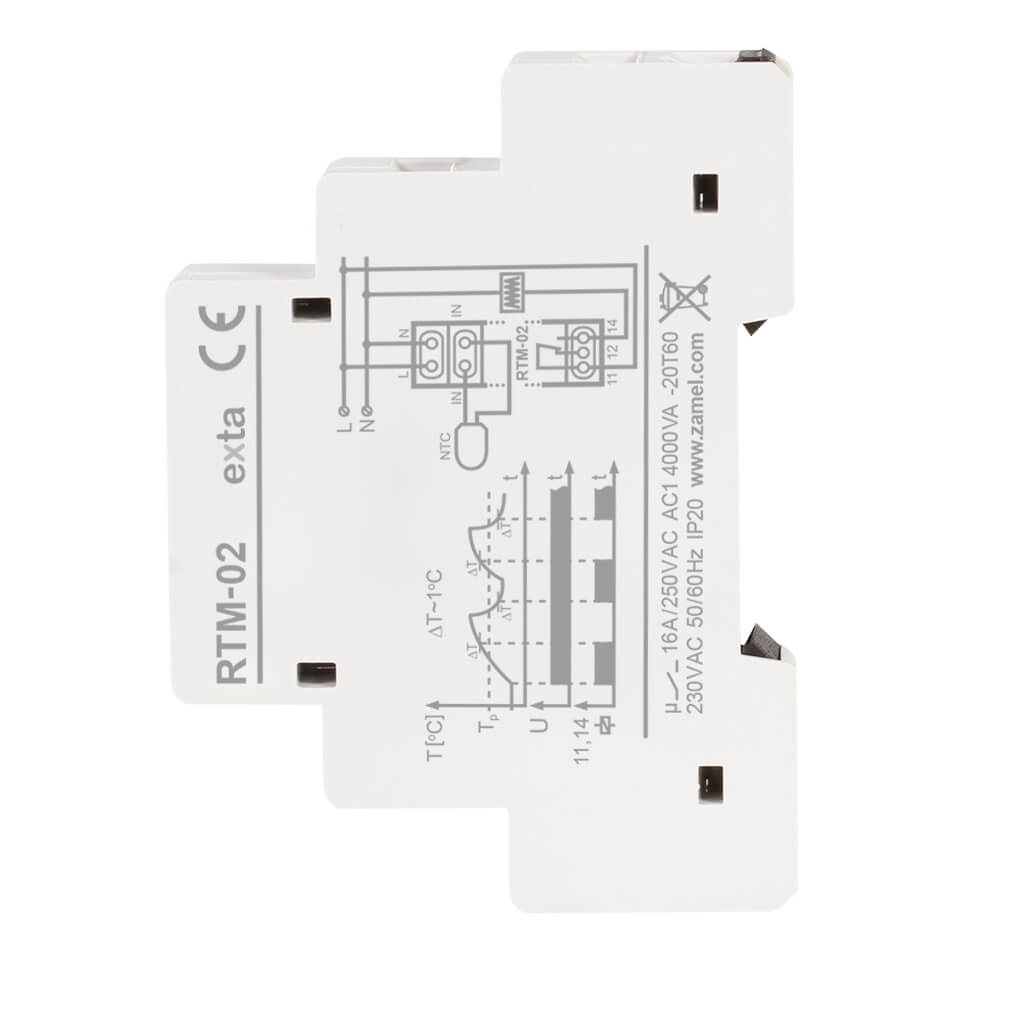

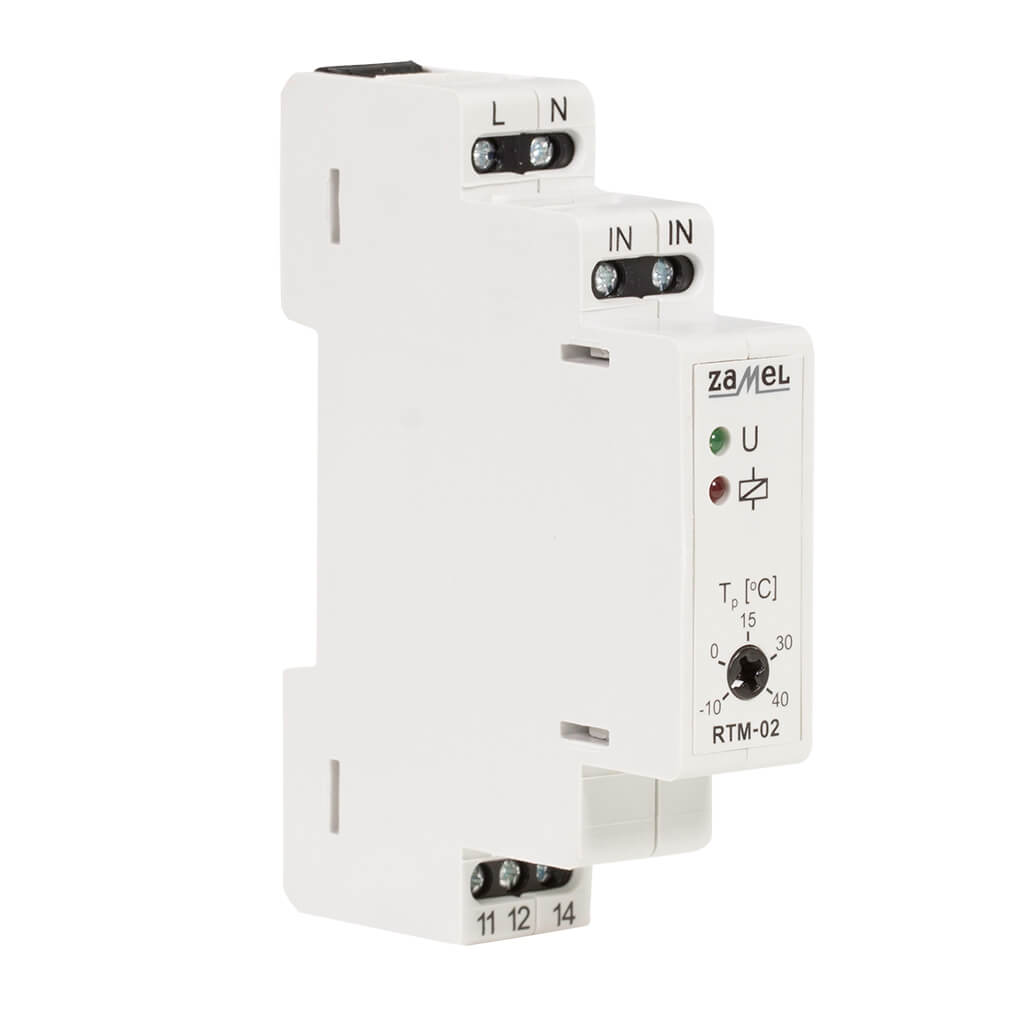

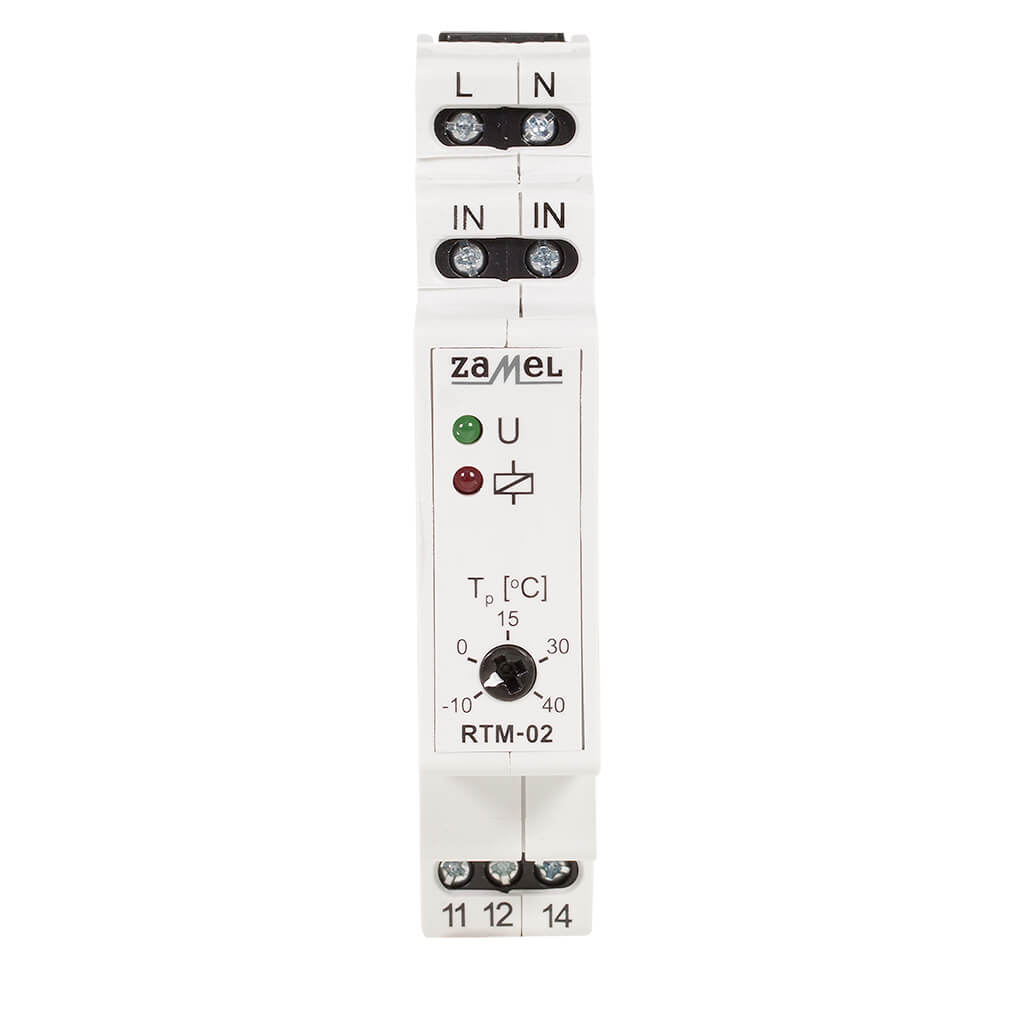

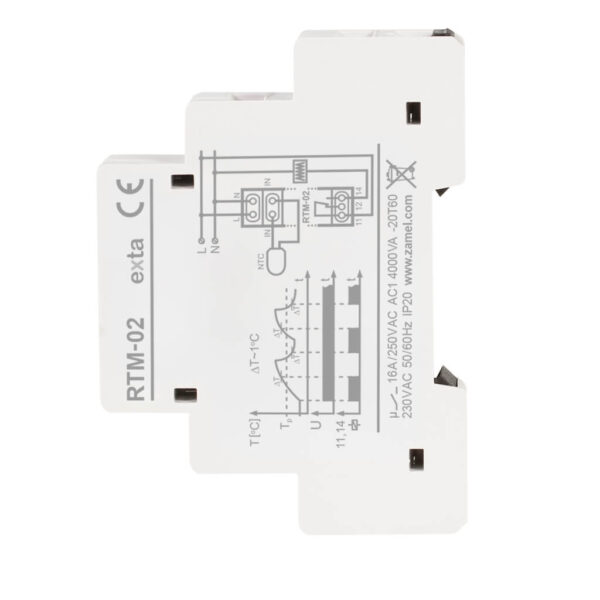

RTM-02
Temperature regulator -10 ÷ +40 C without sensor 230 V
The RTM-02 temperature regulator is used to control receivers (e.g. radiators and heaters, fans, underfloor heating, anti-icing mats, etc.) depending on the temperature surrounding the external NTC sensor
– temperature regulation in the range – 10 °C ÷ + 40 °C,
– external NTC sensor,
– sensor connection indicator,
– relay status indicator,
– receiver control depending on temperature,
– 1-module housing,
– mounting on a DIN rail,
– relay output with a maximum load of 16 A.
Power supply terminals: L, N
Power supply: 230 V~
Frequency: 50 / 60 Hz
NTC sensor terminals:: IN, IN
Supported sensor: NTC 10 k
Temperature setting range: – 10 ÷ + 40 °C
Working position: any
Installation: DIN rail
