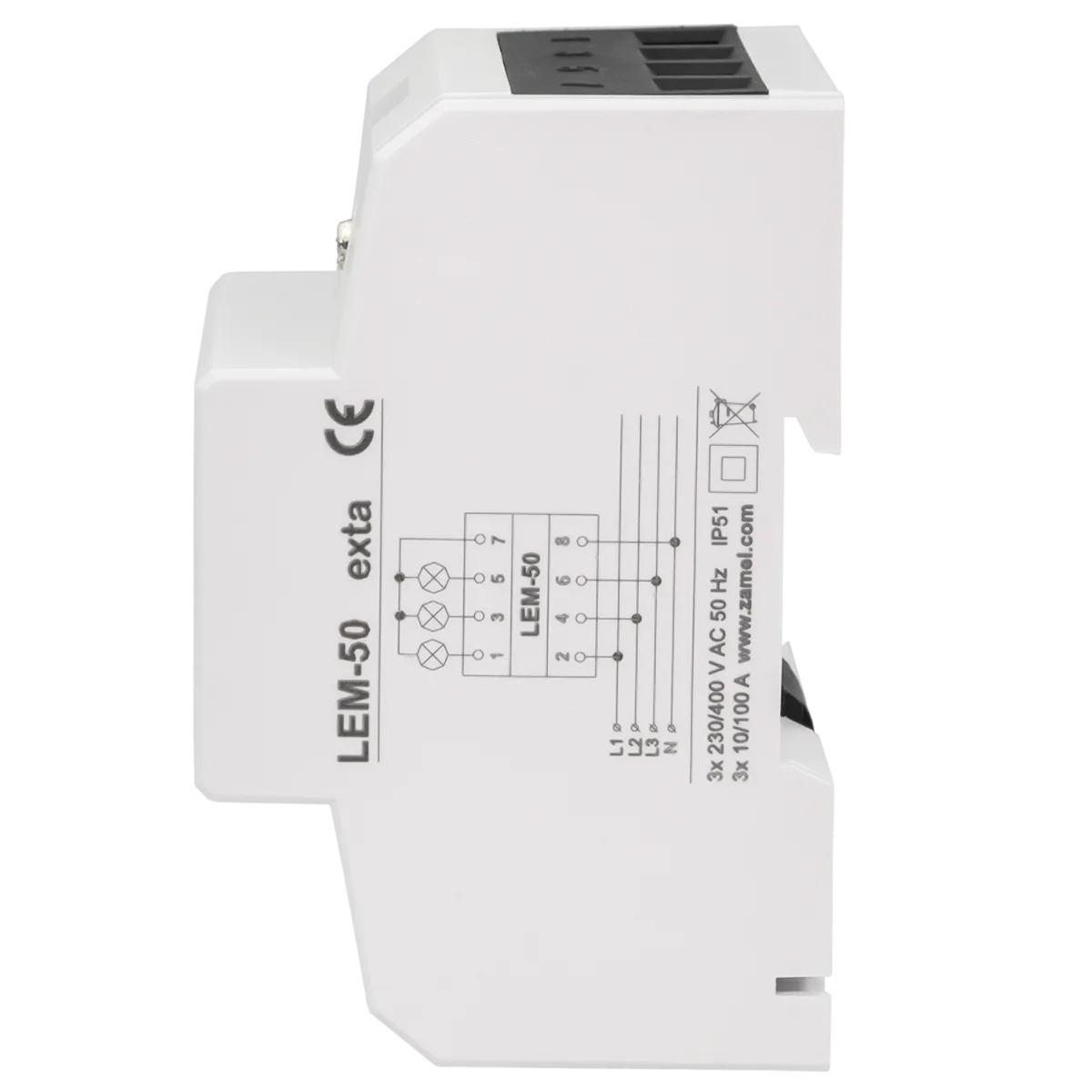

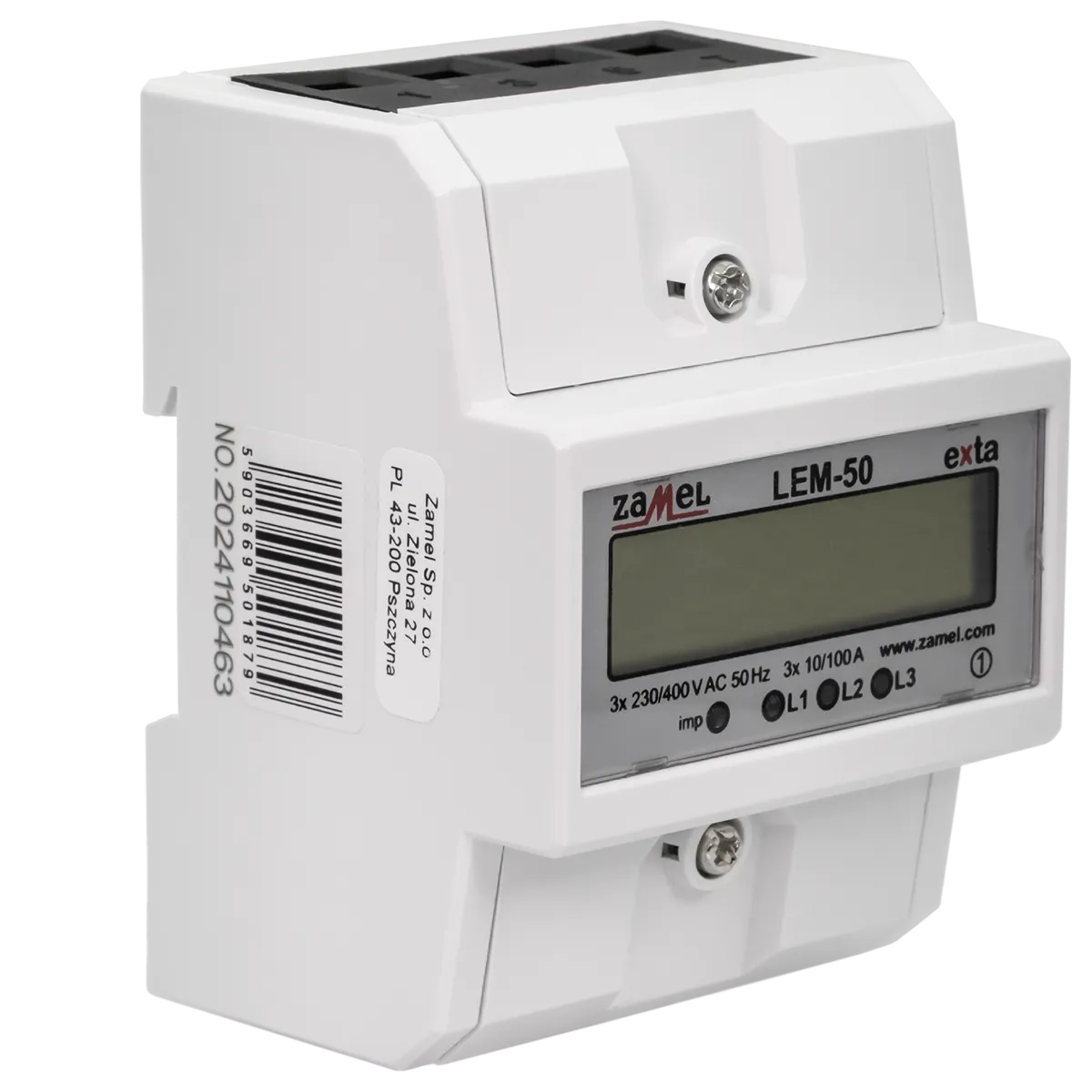

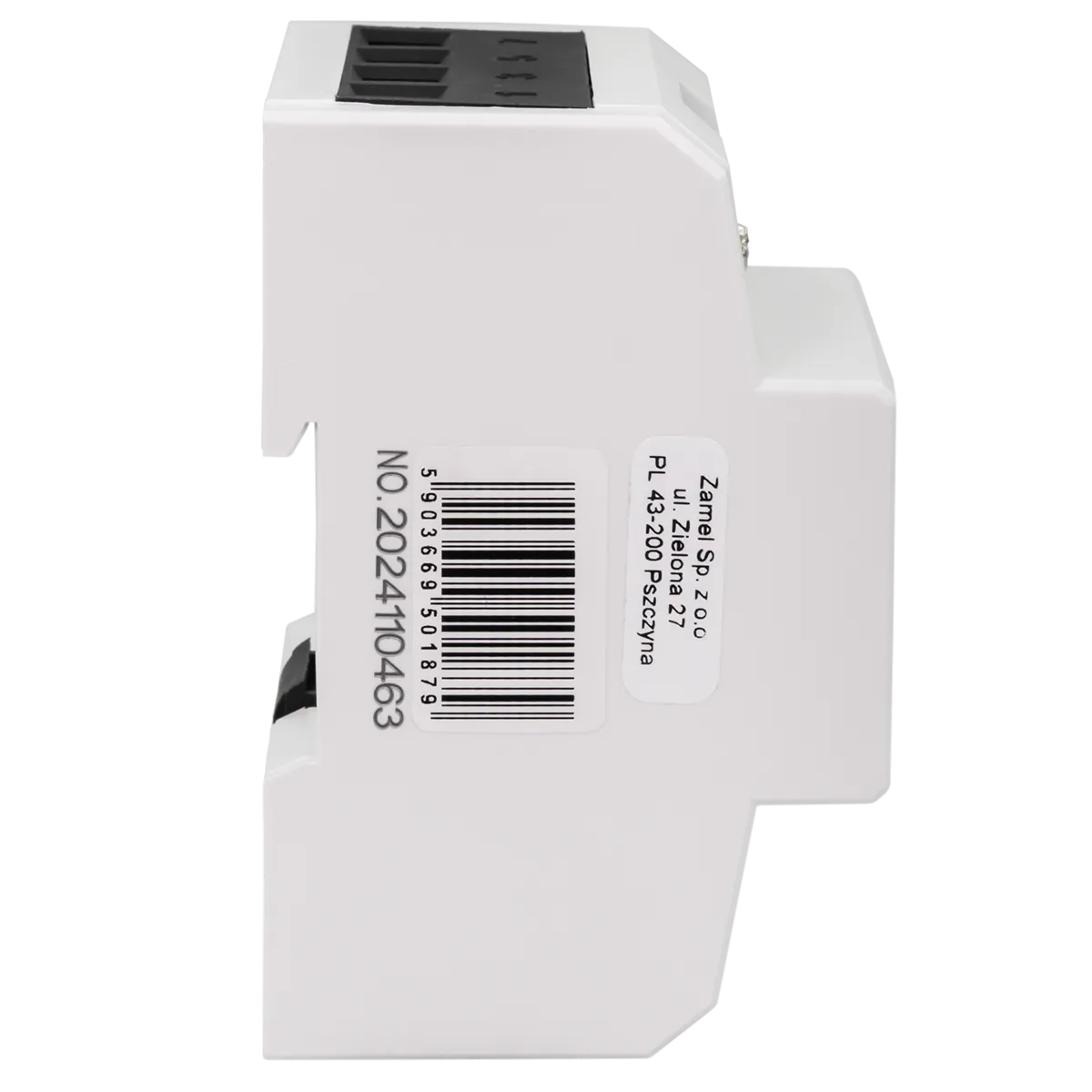

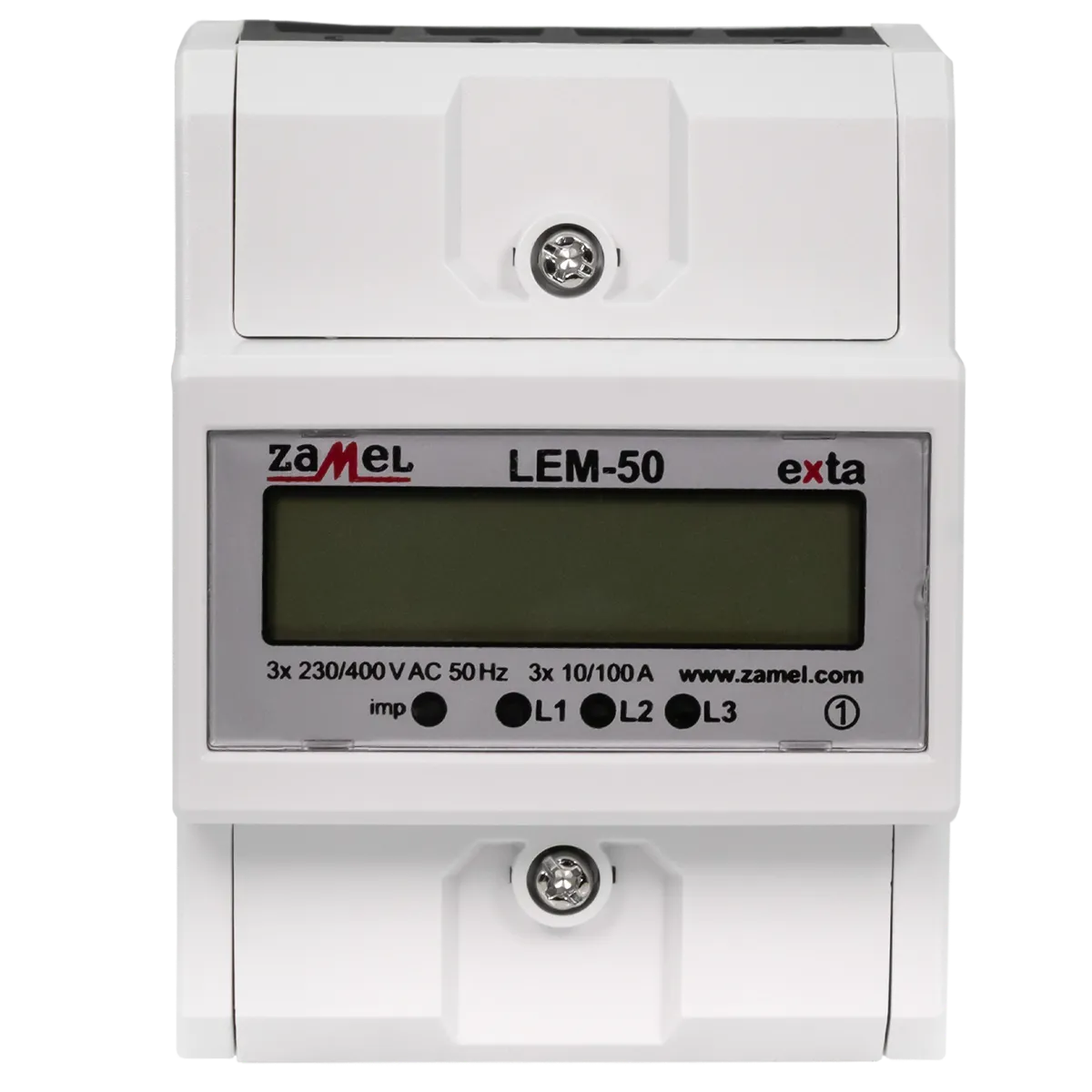

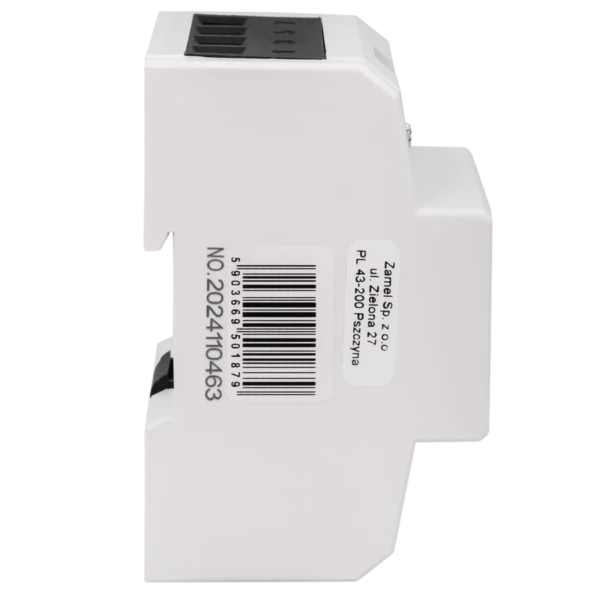

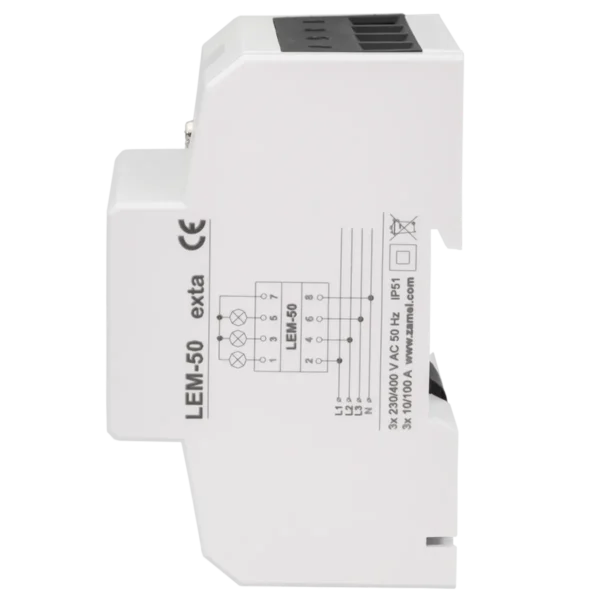

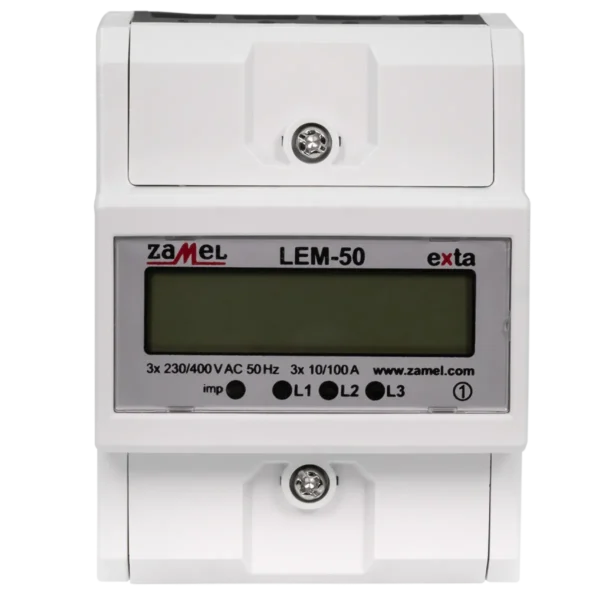

LEM-50
Energy meter, 3-phase

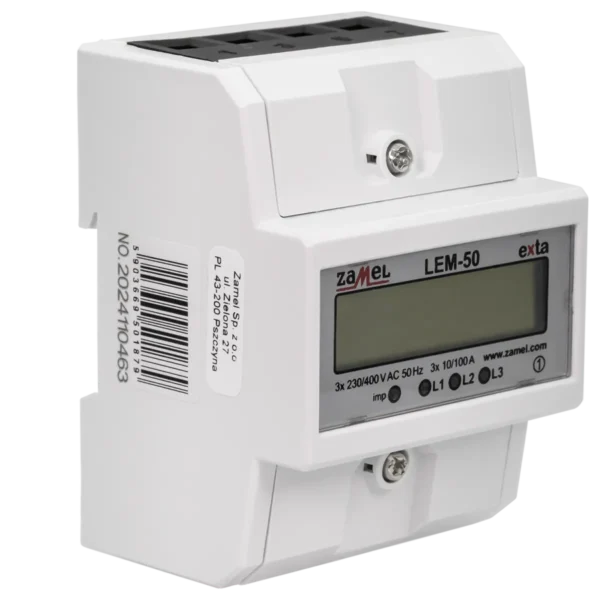

The LEM-50 energy meter with a LCD display is used to monitor the electricity consumption of a three-phase network in home, commercial and industrial applications. Measures and displays the consumption of active electricity expressed in kWh. The meter can be easily mounted on a DIN rail. The measurement is carried out using the direct method (without transformers) for currents with a maximum intensity of 100 A.
– measurement and display of consumed active energy in kWh,
– direct measurement (without transformers),
– maximum current of 100 A and base current of 10 A,
– first class accuracy,
– LCD display with backlight,
– width of 4 modules,
– voltage presence indicators on phases,
– possibility of sealing the terminals,

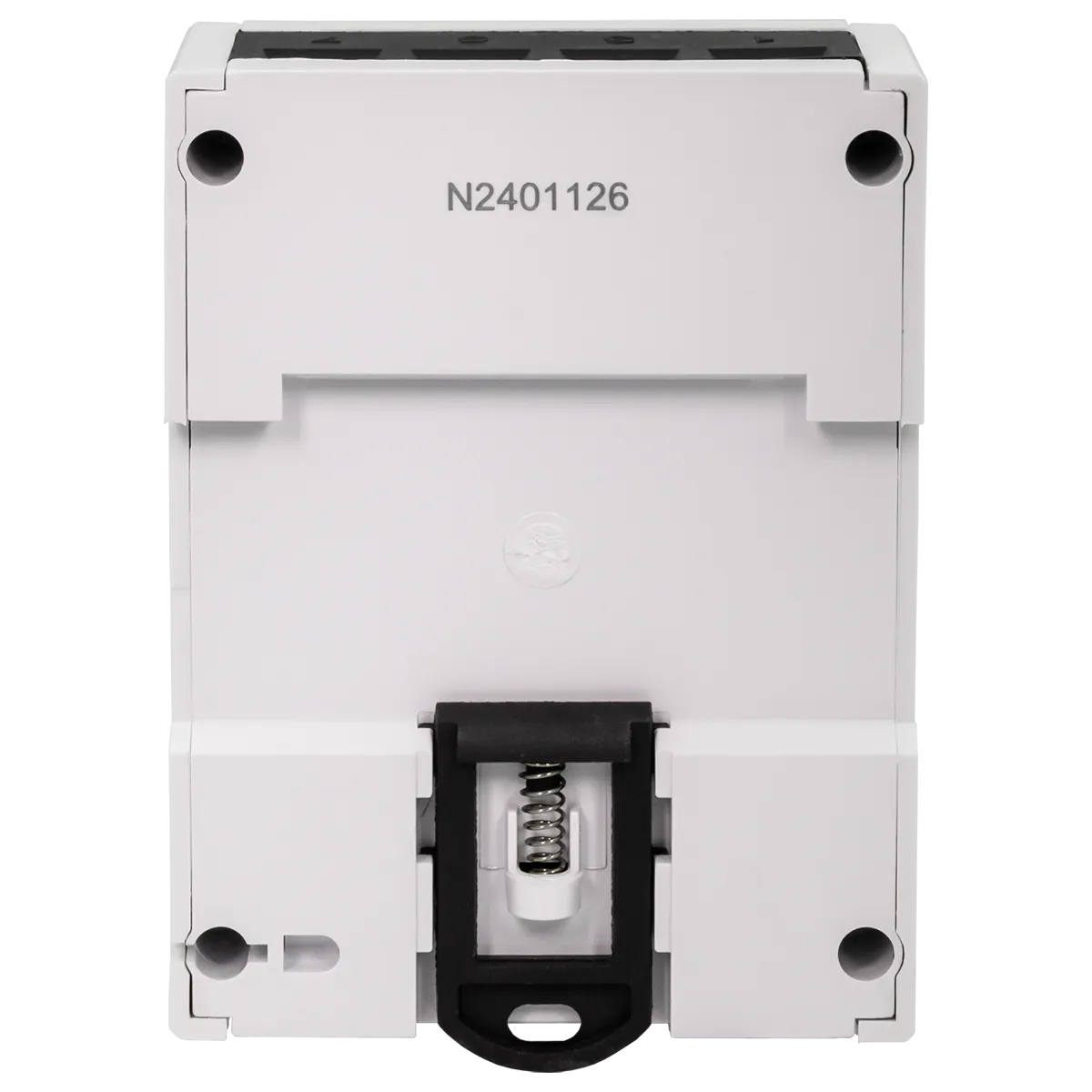

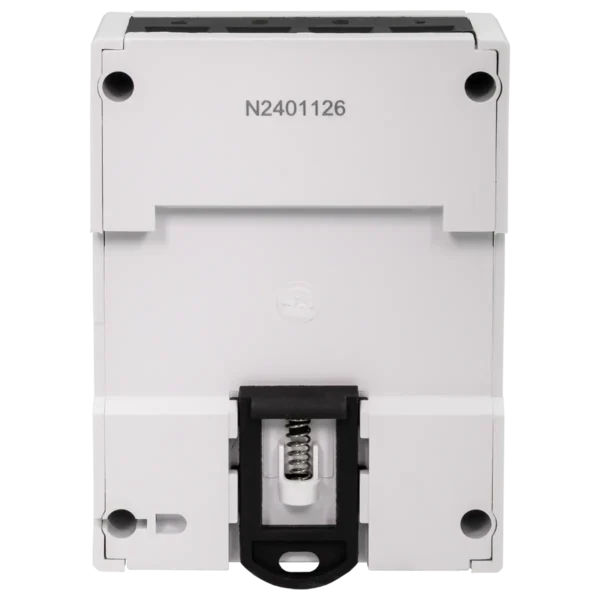

– installation on a DIN rail.
Power supply: 3 x 230 V / 400 V AC
Frequency: 50 / 60 Hz
Measurement method: direct
Maximum current: 100 A
Base current: 10 A
Measurement accuracy: class 1
Cross-section of connection wires: 4 to 25 mm²
Installation: DIN rail
