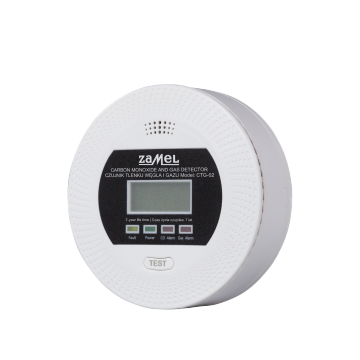

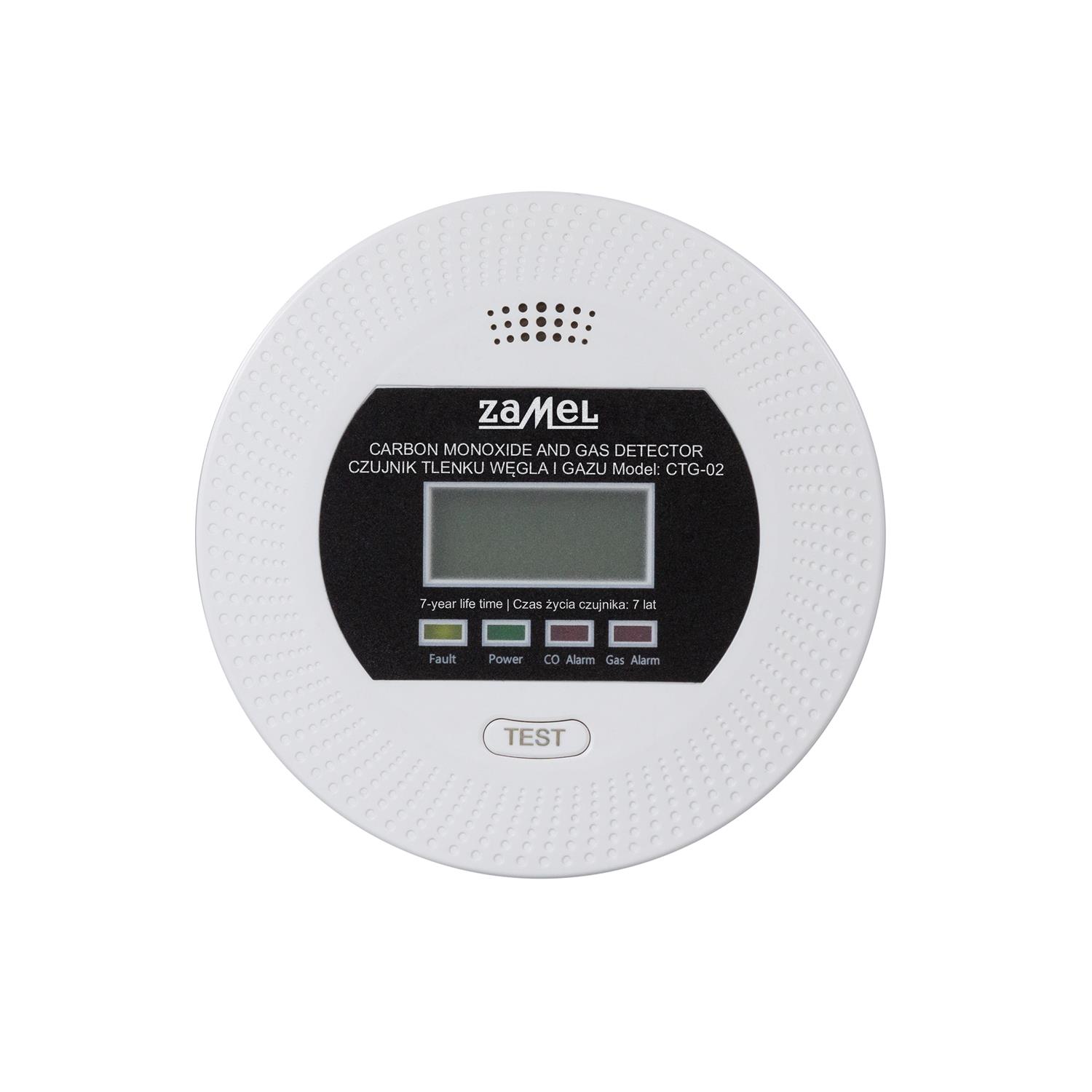

CTG-02
Carbon monoxide + gas sensor
CTG-02 is a 2-in-1 sensor – detecting both carbon monoxide (carbon monoxide), gas and LPG propane butane. Tested in Poland, in a specialized chamber – certificate of correct detection of 300 ppm concentration in up to 3 minutes with the serial number of a given item.
– electrochemical and semiconductor sensor with a lifetime of 7 years,
– LCD display showing the level of carbon monoxide and gas concentration during the alarm and information messages,
– additional emergency power supply (battery type: CR17450) in the case of a power failure,
– optical and acoustic alarm signaling (90 dB),
– low battery indication,
– sensor damage signaling (self-diagnostic system),
– carbon monoxide detection levels in accordance with the standard PN-EN 50291-1:2018, – 30 ppm (over 120 minutes), – 100 ppm (up to 40 minutes), – 300 ppm (up to 3 minutes),
– gas detection alarm level: 10% LEL
Power supply: 5V (power supply included) + 3V emergency power supply (CR17450 battery)
Sensor type: electrochemical + semiconductor
Sound level: 85 dB
Temperature operating range: from 0°C to + 45°C
Humidity operating range: up to 90 % RH
Protection level: IP20
